Satellite Video Module C1 (Audio/Video Jumper) 16 Way
Satellite Video Module C1 (Audio/Video Jumper) 16 Way

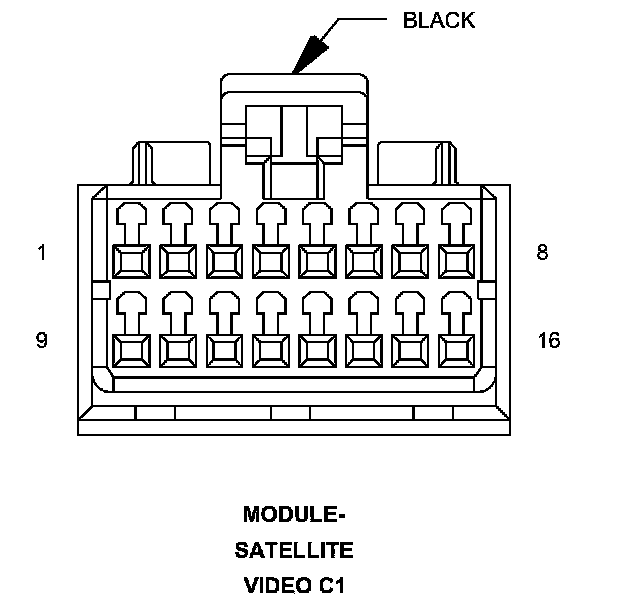

Connector C1 - (AUDIO/VIDEO JUMPER) 16 WAY

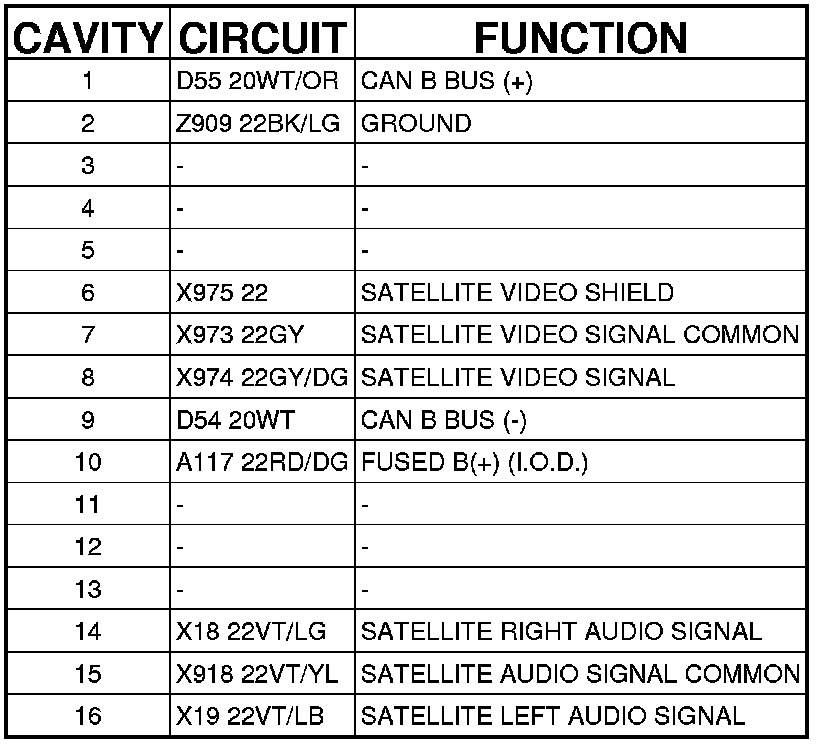

MODULE-SATELLITE VIDEO - (AUDIO/VIDEO JUMPER) 16 WAY
