Powertrain Control Module C4 (RLE) 38 Way
Powertrain Control Module C4 (RLE) 38 Way

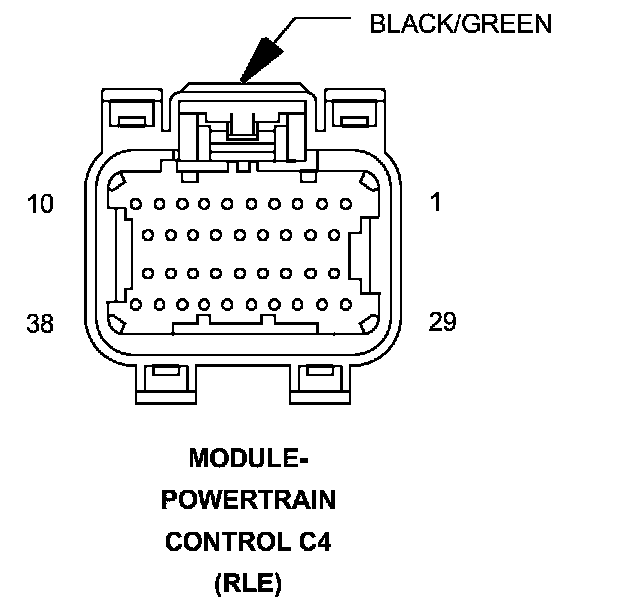

Connector C4 (RLE) - (ENGINE) 38 WAY

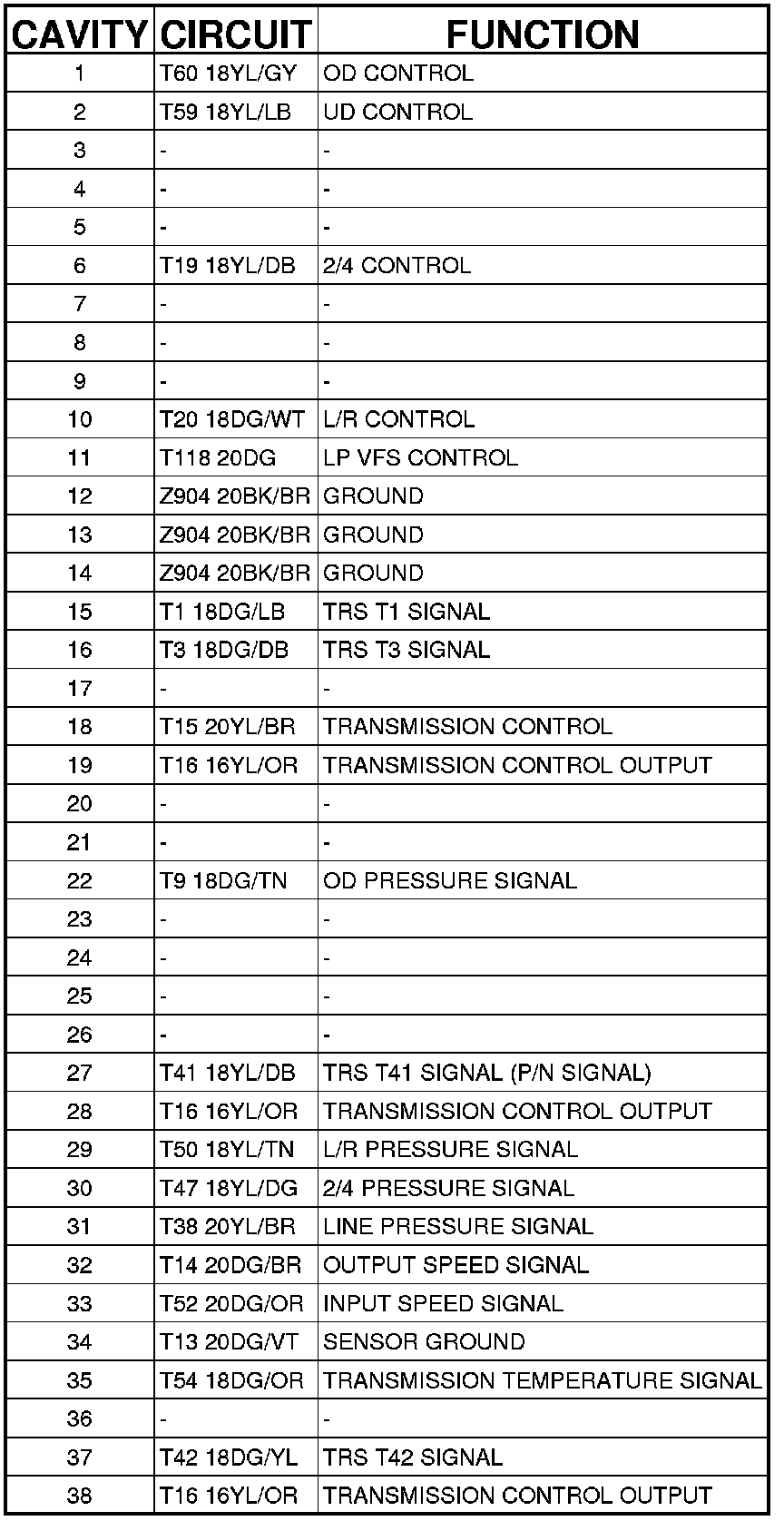

MODULE-POWERTRAIN CONTROL (RLE) - (ENGINE) 38 WAY
