Powertrain Control Module C2 38 Way
Powertrain Control Module C2 38 Way

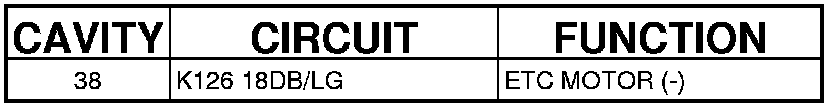

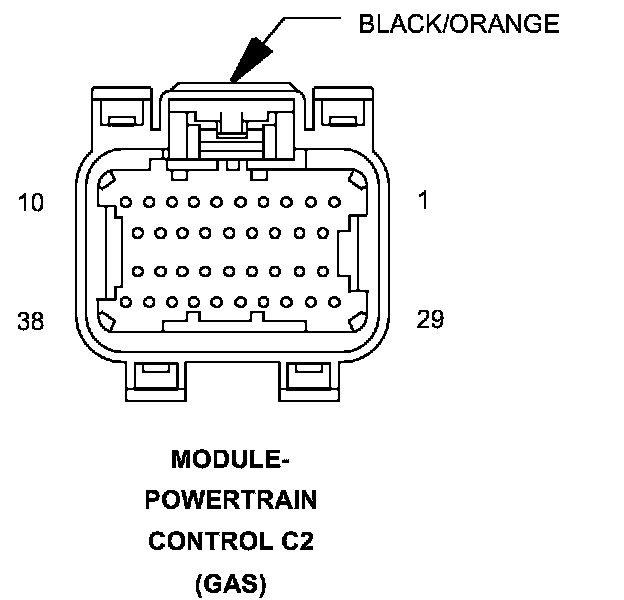

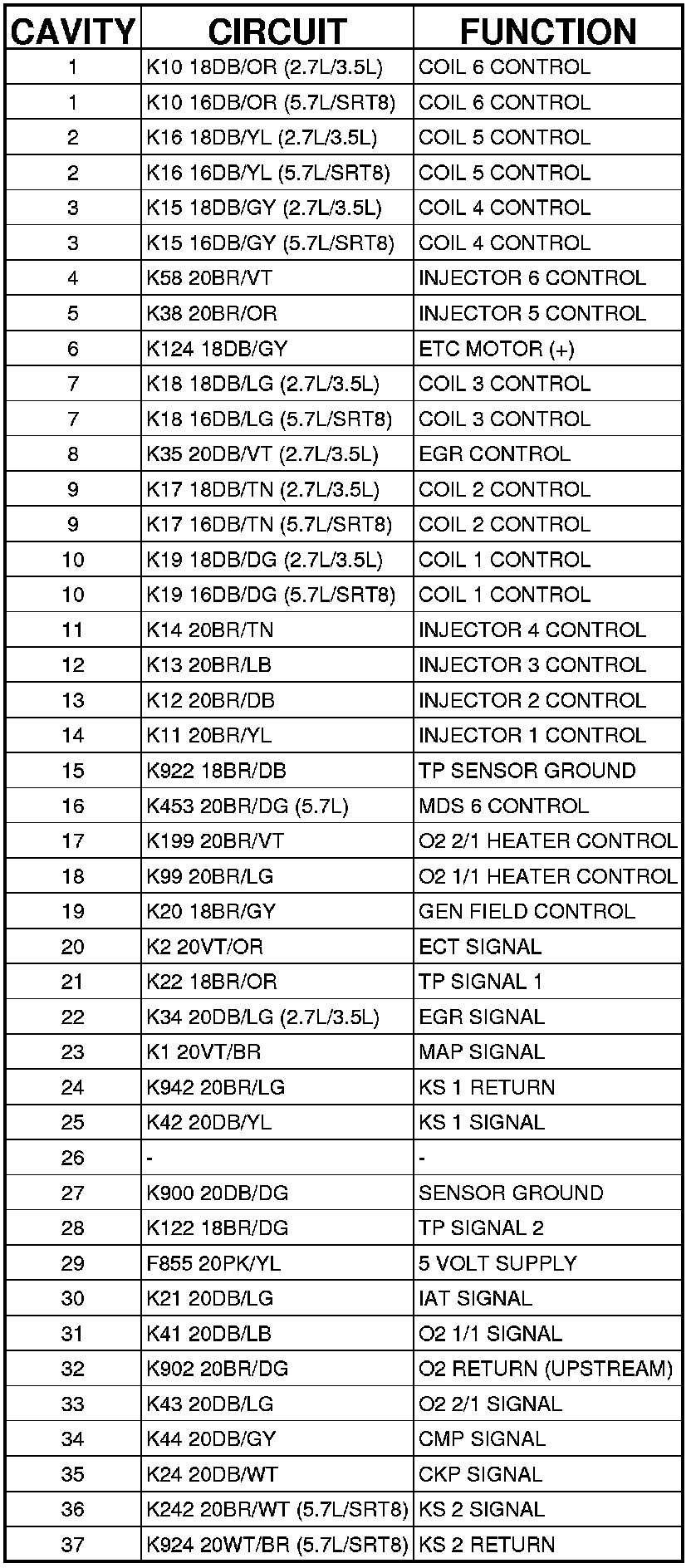

Connector C2 (GAS) - (ENGINE) 38 WAY
MODULE-POWERTRAIN CONTROL (GAS) - (ENGINE) 38 WAY
