Chrysler
>>
2009
>>
300 V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cruise Control Module
Cruise Control Module
Connector (ACC) - (HEADLAMP AND DASH) 8 WAY

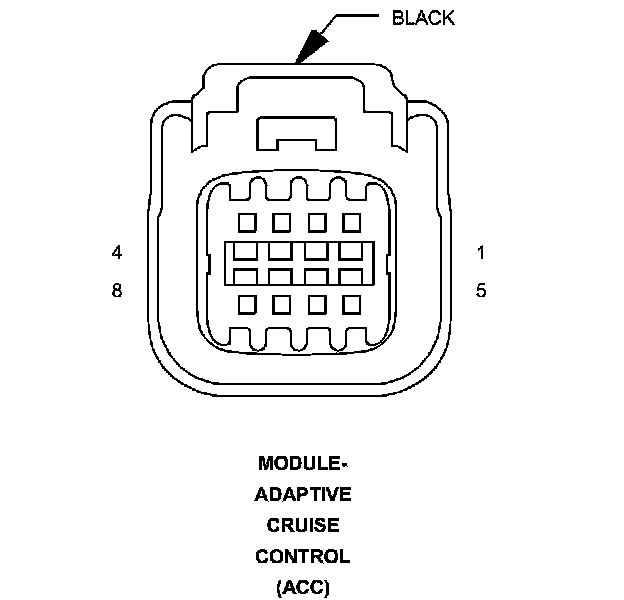

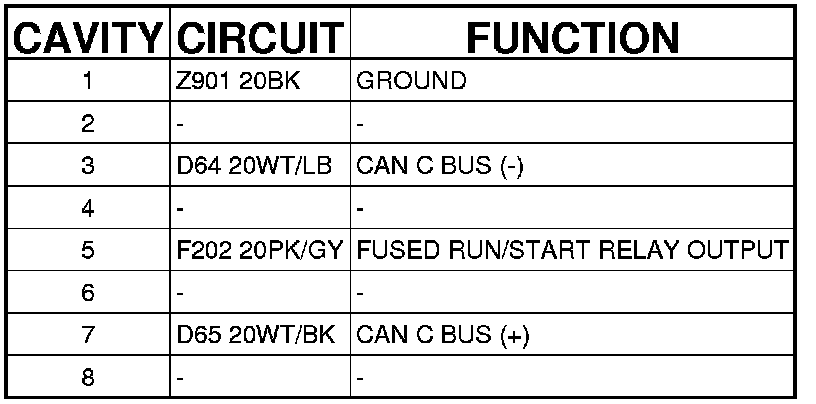

MODULE-ADAPTIVE CRUISE CONTROL (ACC) - (HEADLAMP AND DASH) 8 WAY
