Home >> Chrysler >> 2008 >> Sebring Convertible L4-2.4L >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Locations

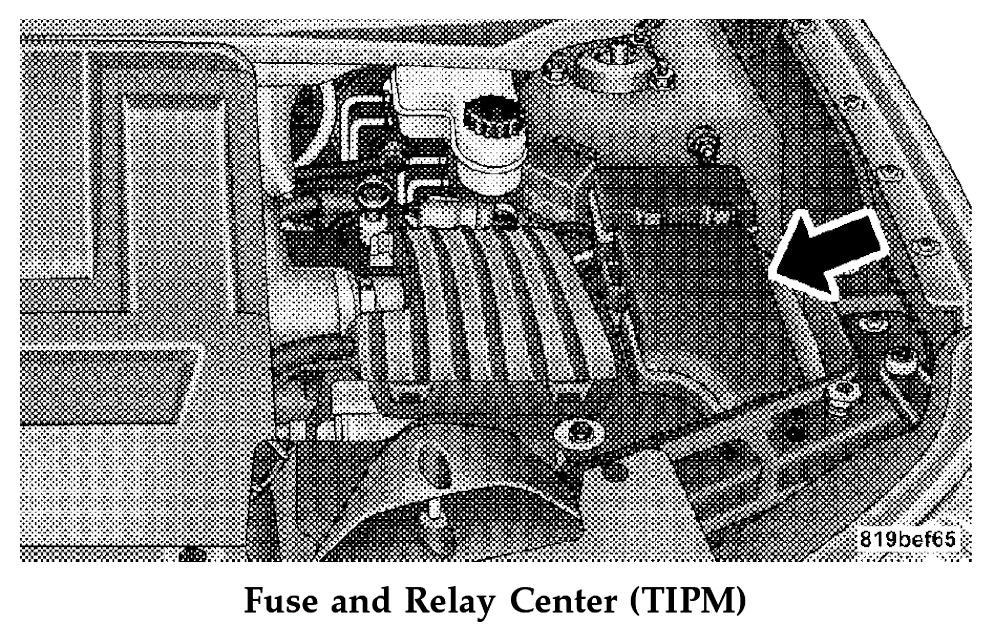

Relay Box: Locations

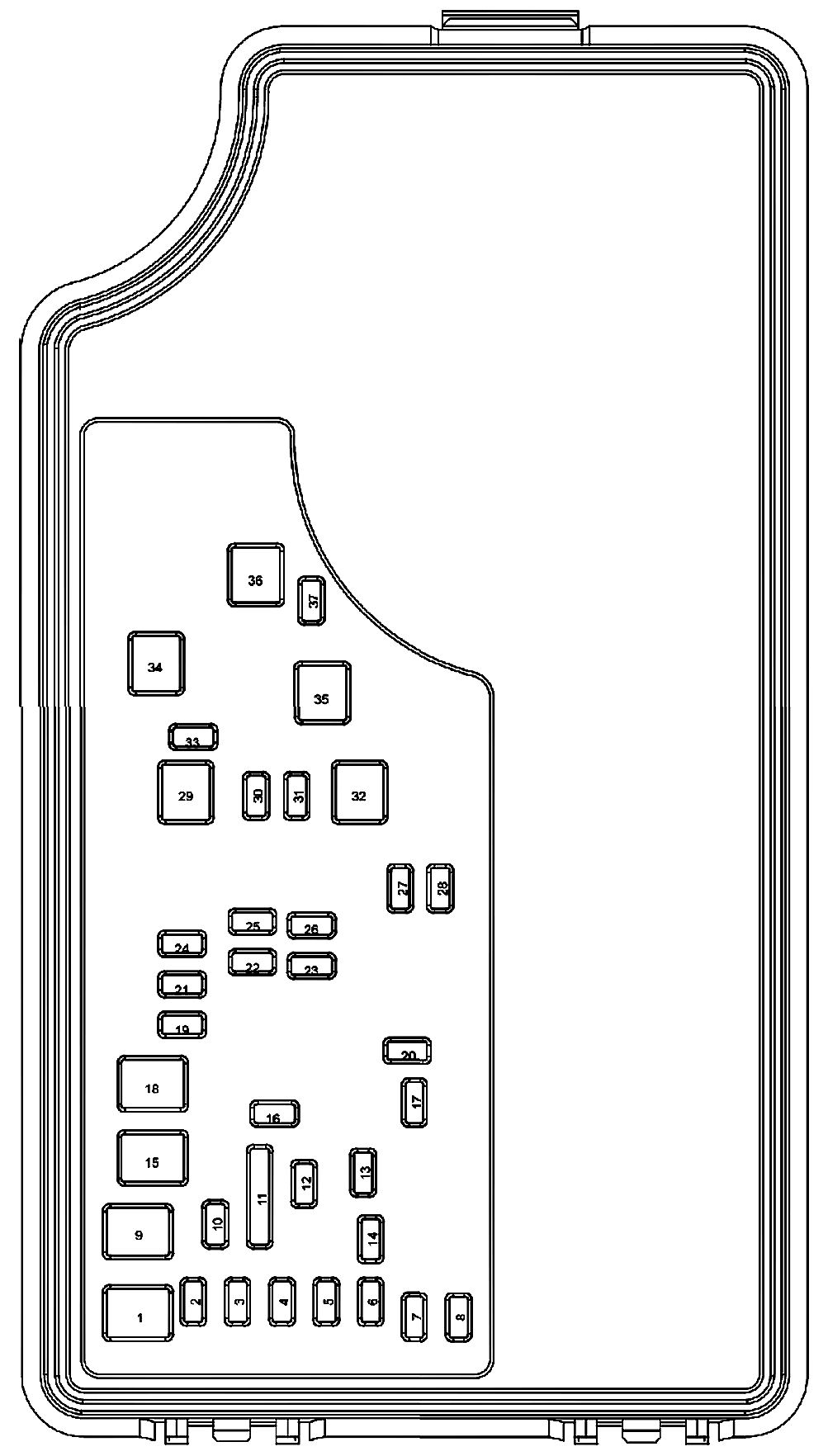

Front View:

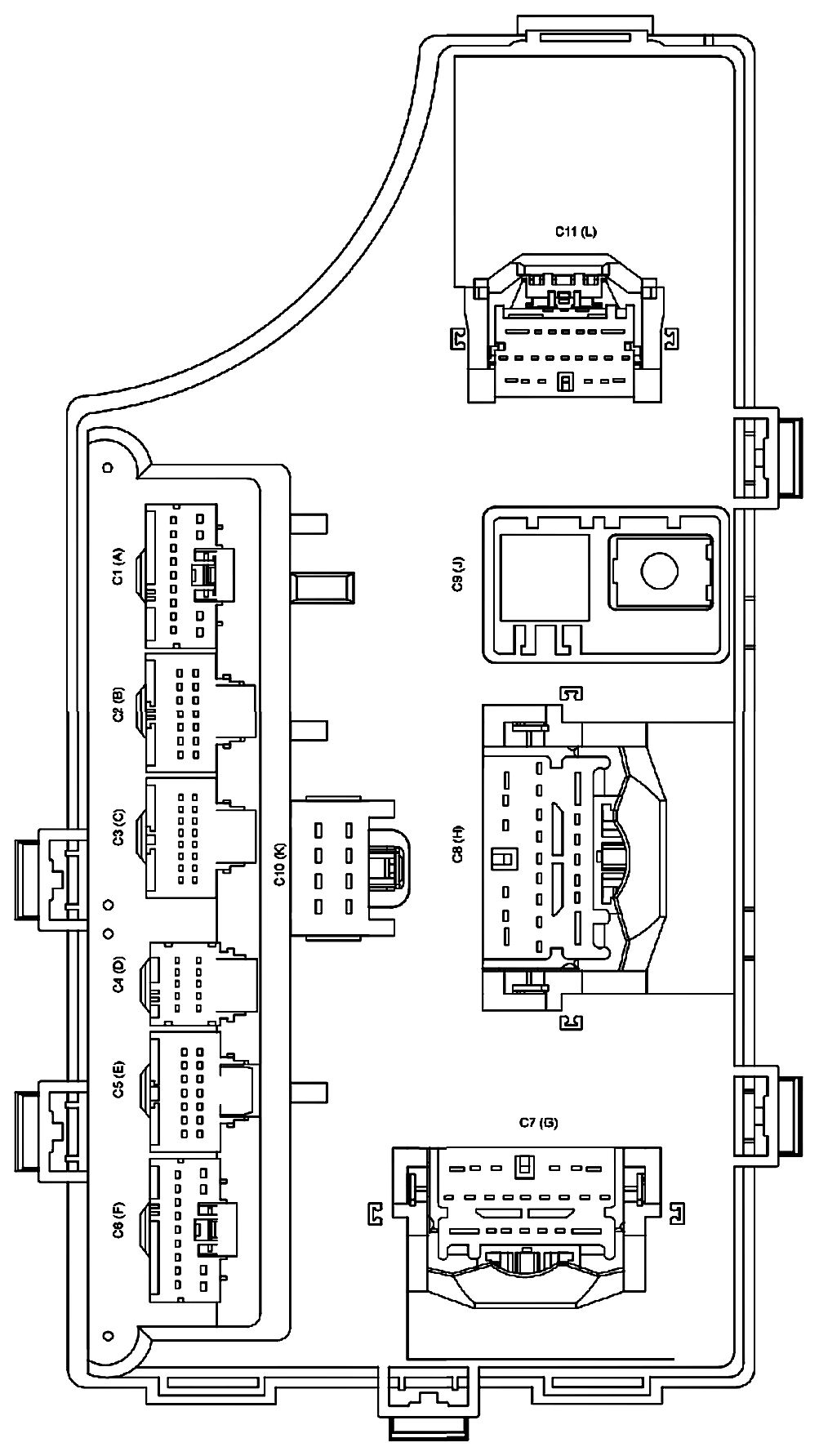

Rear View:
