Powertrain Control Module - Removal

REMOVAL





1. Disconnect the negative battery cable.
2. Raise vehicle and support.
3. Remove the left front wheel.

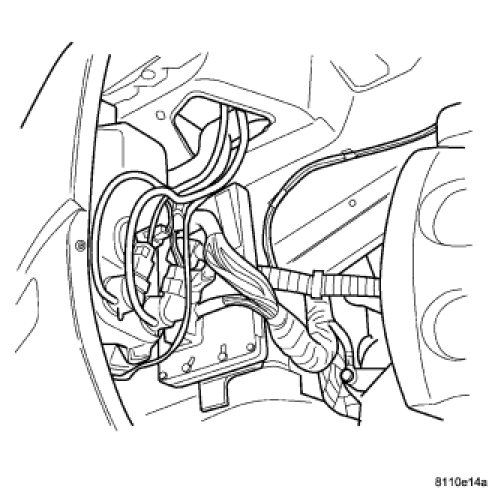

4. Remove the left front splash shield.

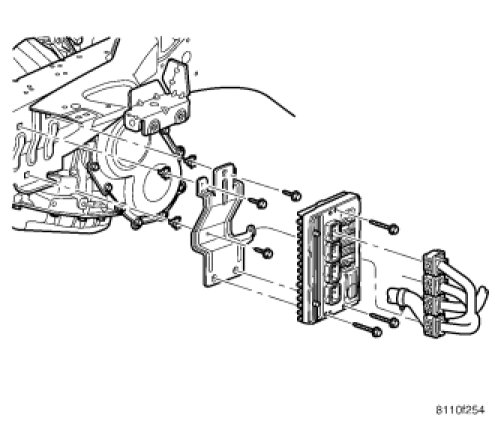

5. Unlock and remove the 4 connectors.
6. Remove the 3 mounting screws.
7. Remove the PCM.
