Camshaft Position Sensor: Locations

Component ID: 342
Component : SENSOR-CAMSHAFT POSITION

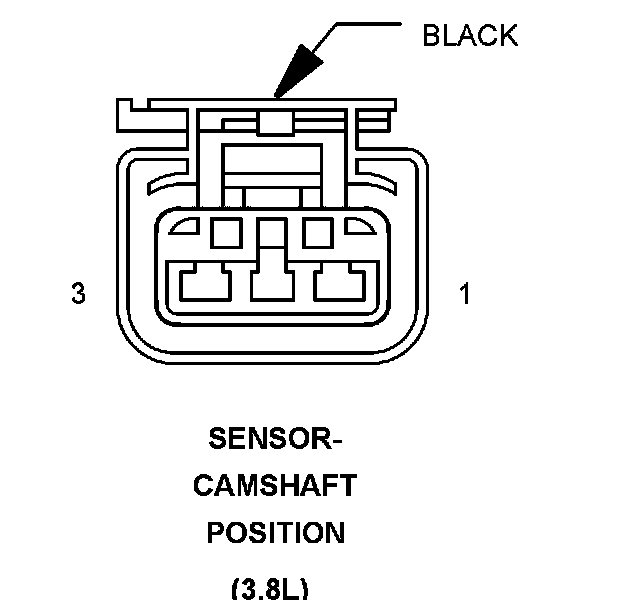

Connector:
Name : SENSOR-CAMSHAFT POSITION
Color : BLACK
# of pins : 3
Qualifier : (3.8L)




Pin Circuit Description
1 F856 20YL/PK 5 VOLT SUPPLY
2 K900 20DB/DG SENSOR GROUND
3 K44 20DB/GY CMP SIGNAL

Component Location - 11

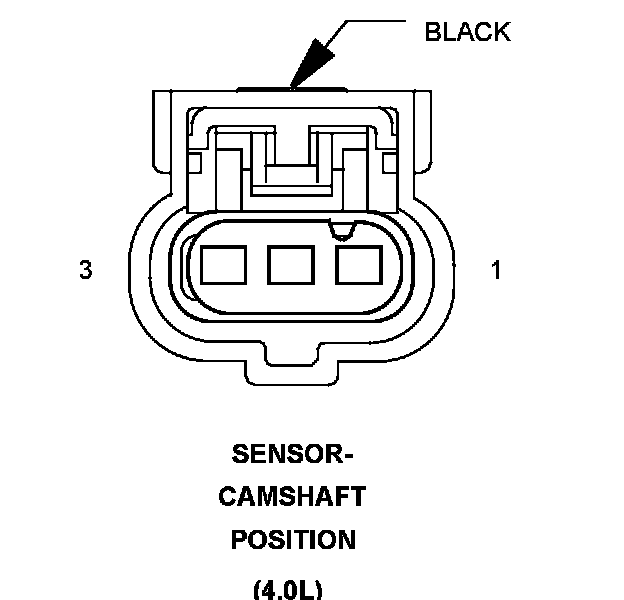

Connector:
Name : SENSOR-CAMSHAFT POSITION
Color : BLACK
# of pins : 3
Qualifier : (4.0L)




Pin Circuit Description
1 F856 20YL/PK 5 VOLT SUPPLY
2 K44 20DB/GY CMP SIGNAL
3 K900 20DB/DG SENSOR GROUND

Component Location - 11
