Installation

INSTALLATION

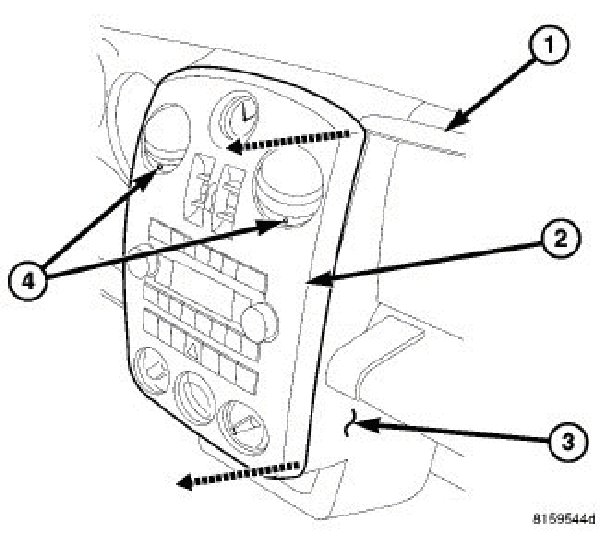

Front






1. Install switch into bezel.

2. Connect electrical harness connector to switch.

3. Install bezel, refer to Service and Repair

4. Connect battery negative cable.

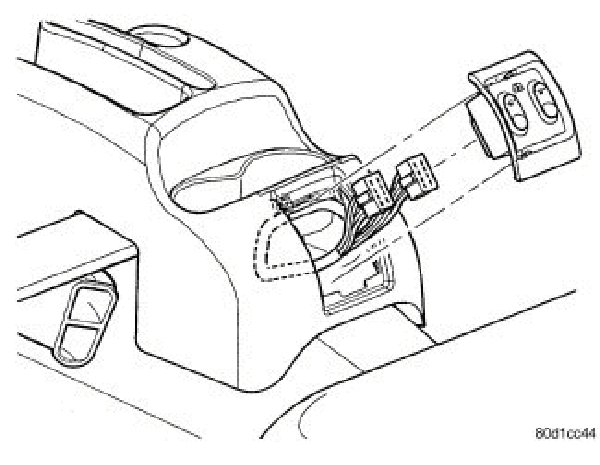

Rear-Sedan Only






1. Connect electrical harness connector to switch.

2. Align switch and press into position.

3. Connect battery negative cable.
