Cruise Control Switch: Locations

Component ID: 390

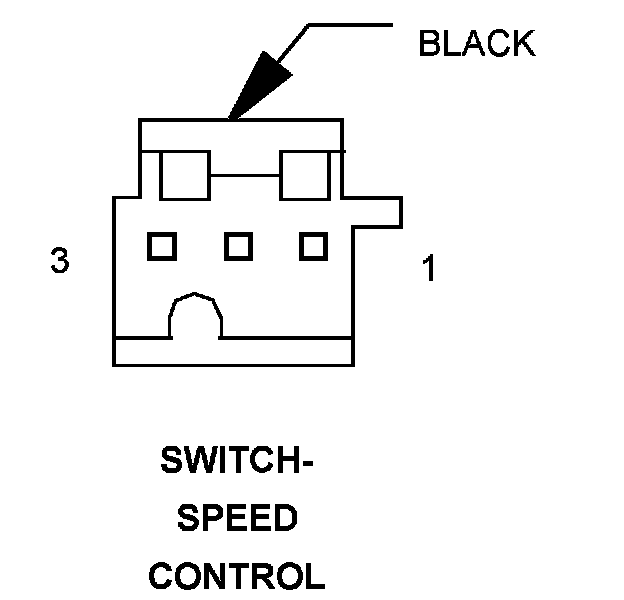

Component : SWITCH-SPEED CONTROL

Connector:
Name : SWITCH-SPEED CONTROL
Color : BLACK
# of pins : 3




Pin Circuit Description
1 V72 20OR/VT S/C SWITCH NO. 2 SIGNAL
2 V71 20RD S/C SWITCH NO. 1 SIGNAL
3 V937 20GY S/C SWITCH RETURN

Component Location - 35
