Installation

INSTALLATION

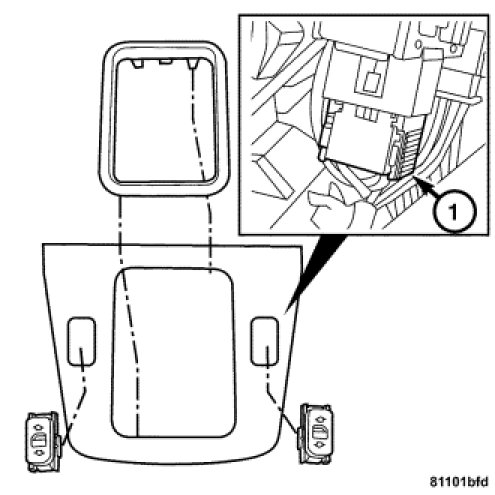

1. Install the power window switch to the shifter cover trim panel.
2. Connect the power window switch harness connector (1).
3. Install the shifter cover trim panel. Center Console - Installation.
4. Connect the negative battery cable.
