Installation

INSTALLATION

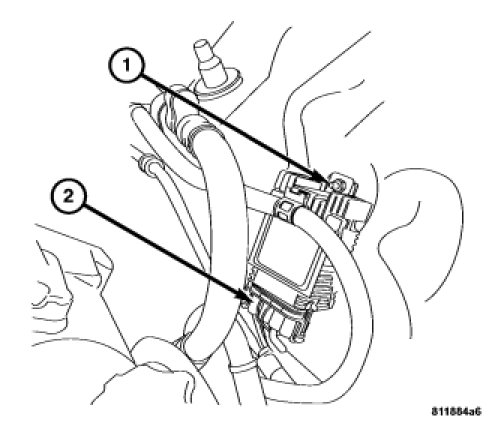

1. Position the radiator fan control module on the inner fender well studs.
2. Install the upper and lower retaining nuts. Tighten the nuts to 10 Nm (89 in. lbs.).
3. Connect the radiator fan control module harness connector.
4. Connect the negative battery cable.
