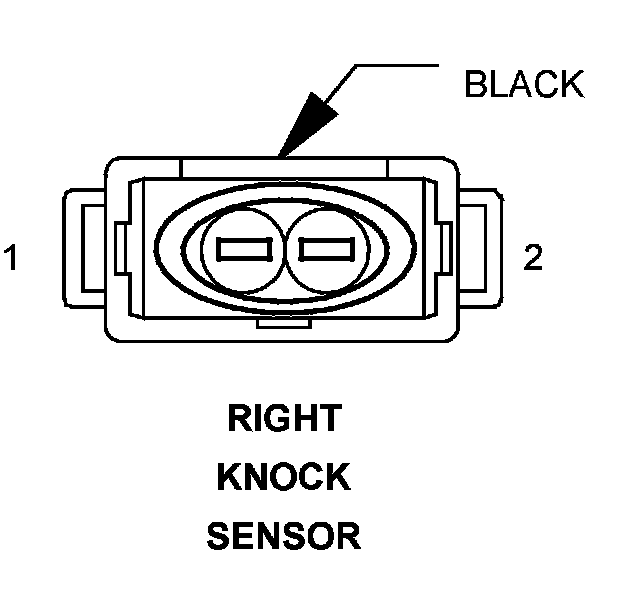

Right Knock Sensor
Component ID: 262
Component : RIGHT KNOCK SENSOR
Connector:
Name : RIGHT KNOCK SENSOR
Color : BLACK
# of pins : 2
Pin Circuit Description
1 20BK SENSOR GROUND
2 20VT RIGHT KNOCK SENSOR SIGNAL
Component ID: 262
Component : RIGHT KNOCK SENSOR
Connector:
Name : RIGHT KNOCK SENSOR
Color : BLACK
# of pins : 2
Pin Circuit Description
1 20BK SENSOR GROUND
2 20VT RIGHT KNOCK SENSOR SIGNAL
