Sentry Key Antenna Ring

SENTRY KEY ANTENNA RING

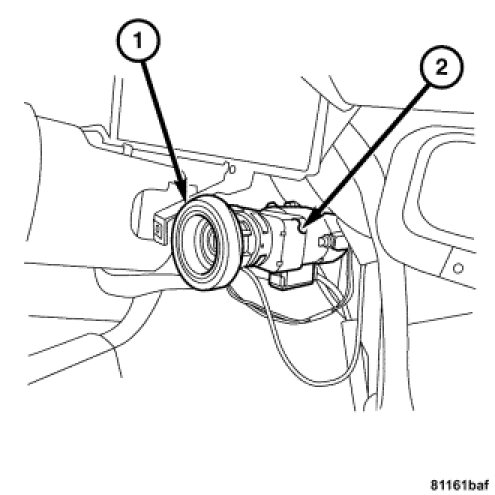

1. Install the sentry key antenna ring (1) to the ignition switch key cylinder (2).

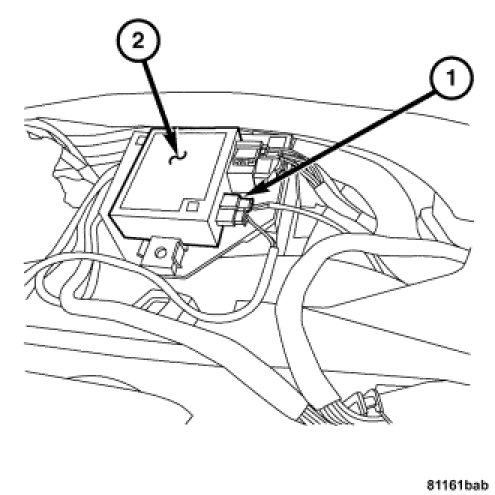

2. Install the sentry key antenna ring electrical connector (1) to the sentry key remote entry module (2).
3. Install the instrument cluster. Instrument Cluster - Installation.
