Seat Temperature Control Module

Component ID: 178
Component : MODULE-HEATED SEAT

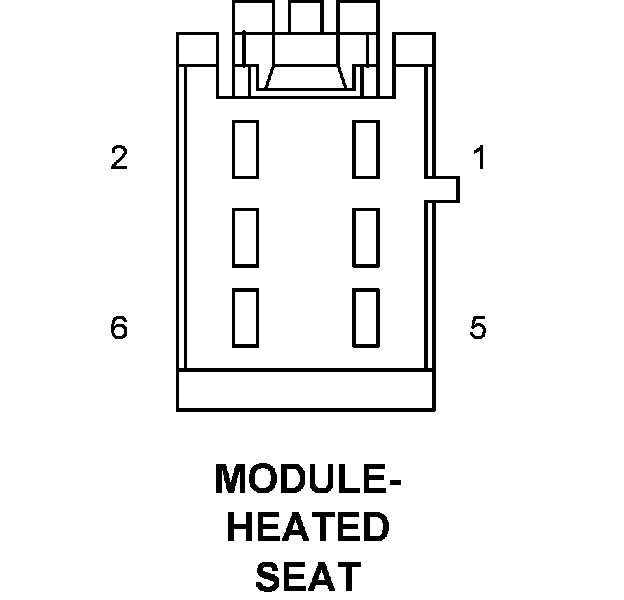

Connector:
Name : MODULE-HEATED SEAT
Color :
# of pins : 6




Pin Circuit Description
1 Z387 20BK GROUND
2 A940 12RD/GY FUSED B(+)
3 P187 20LG/BR DRIVER SEAT HEATER B(+) DRIVER
4 P188 20BR/VT PASSENGER SEAT HEATER B(+) DRIVER
5 D54 20WT CAN B BUS (-)
6 D55 20WT/OR CAN B BUS (+)

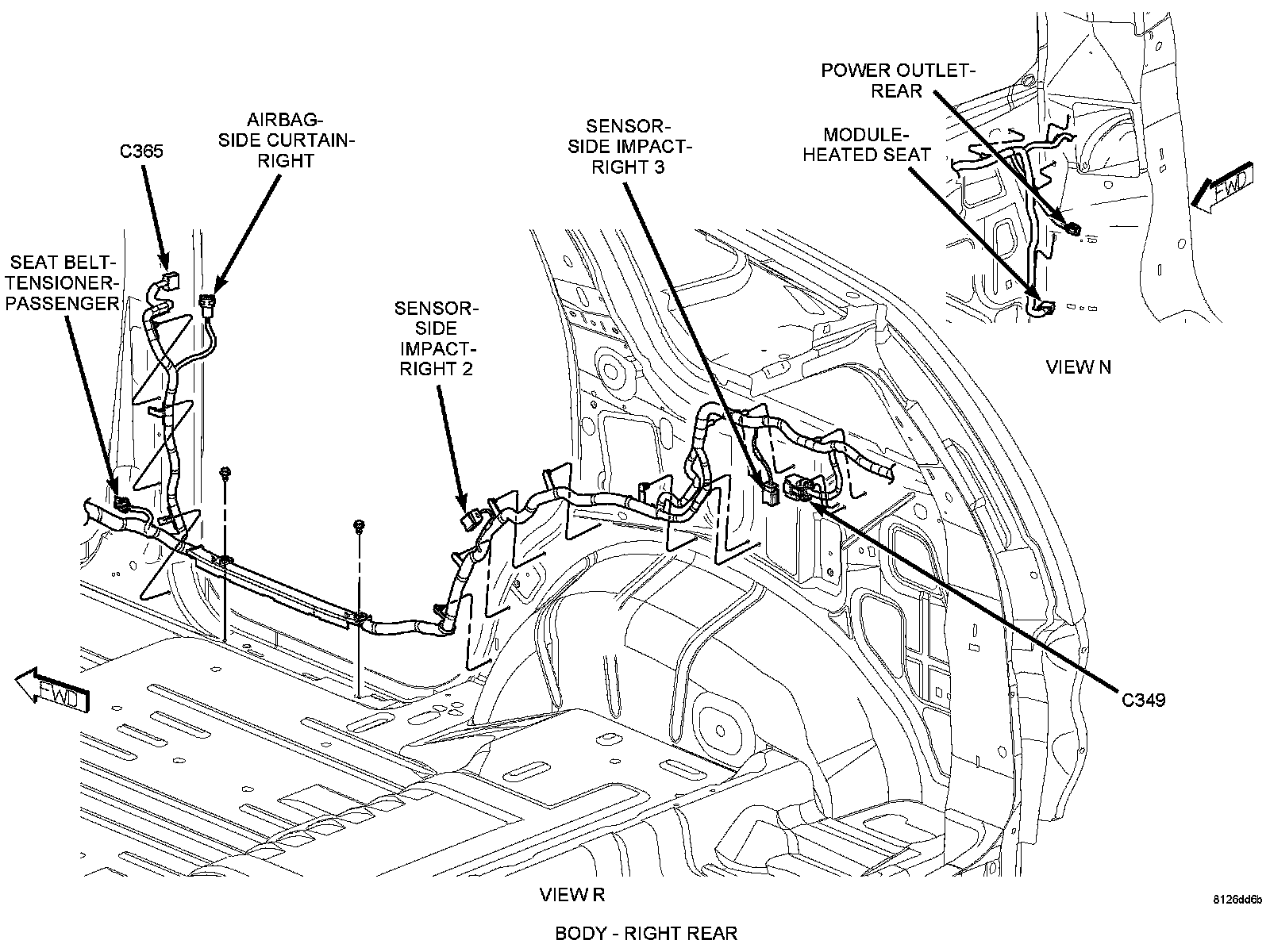

Component Location - 47
