Oil Pan, Engine

NOTE: Assure that the rear face of the oil pan is flush to the transmission bell housing when installing the oil pan.

- Pre-torque the horizontal rear oil pan to transmission bolts to 1.4 Nm (12 lbs. in.).

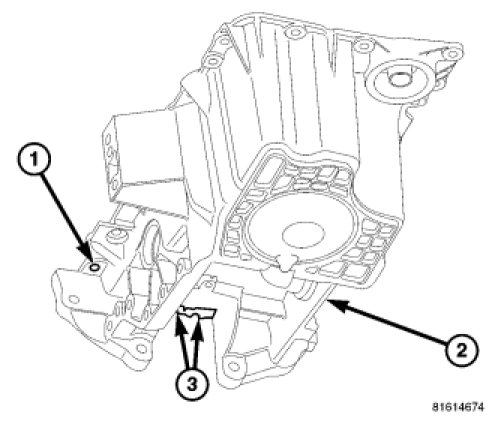

- First tighten the M8 (1) oil pan alignment bolt to 28 Nm (250 lbs. in.), then tighten bolt (2) to 28 Nm (250 lbs. in.).
- Tighten the remaining M8 bolts and M8 nuts to 28 Nm (250 lbs. in.), and the M6 bolts to 12 Nm (105 lbs. in).

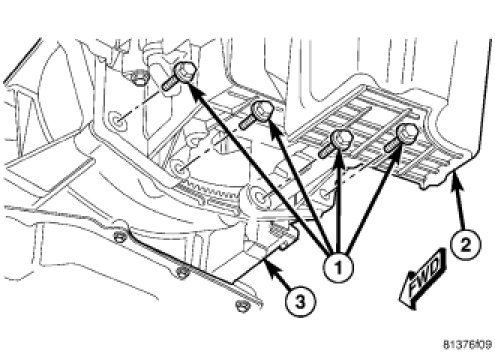

- Tighten the four M10 oil pan (2) to transmission (3) bolts (1) to 55 Nm (40 lbs.ft.).
