INSTALLATION

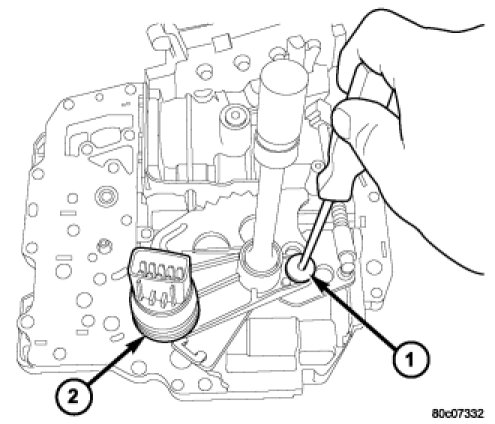

1. Install the TRS (2) to the manual shaft. Make sure TRS locating pin rests in manual valve bore slot.
2. Install the TRS/manual shaft retaining screw (1) and torque to 5 Nm (45 in. lbs.) torque.

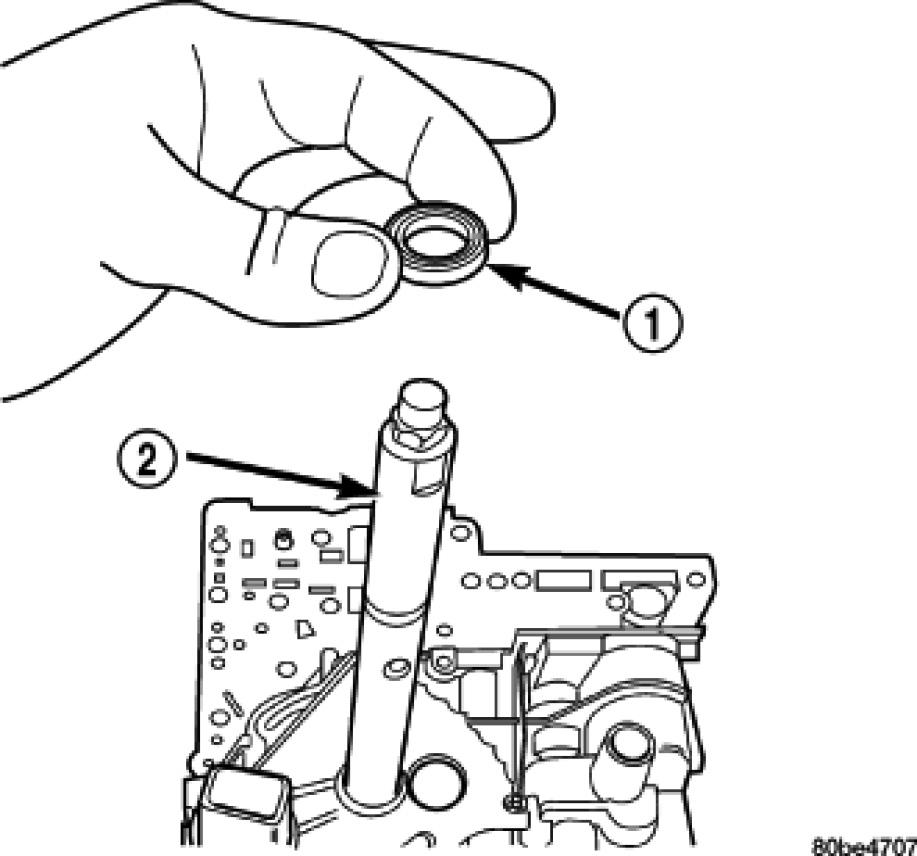

3. Install the manual shaft seal (1).
4. Install valve body to the transmission.Installation
