Motor-Wiper-Rear

Component ID: 290
Component : MOTOR-WIPER-REAR

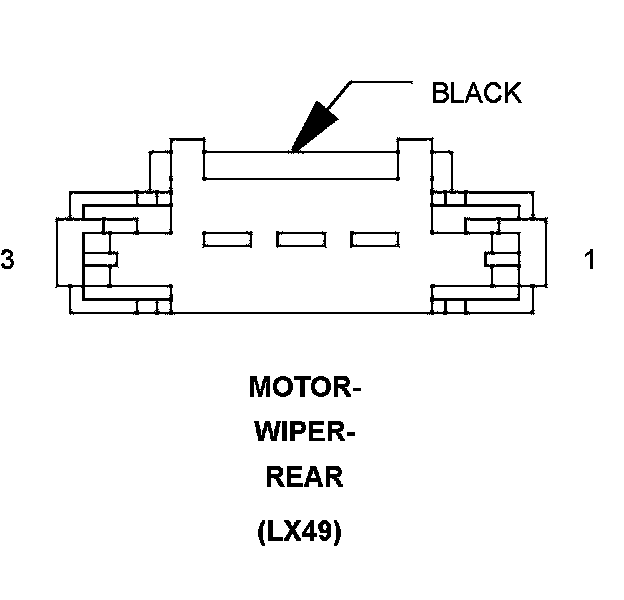

Connector:
Name : MOTOR-WIPER-REAR
Color : BLACK
# of pins : 3
Qualifier : (LX49)




Pin Circuit Description
1 W13 16BR/LG REAR WIPER MOTOR CONTROL
2 W17 20BR/YL REAR WIPER PARK SWITCH SENSE
3 Z914 16BK/GY GROUND

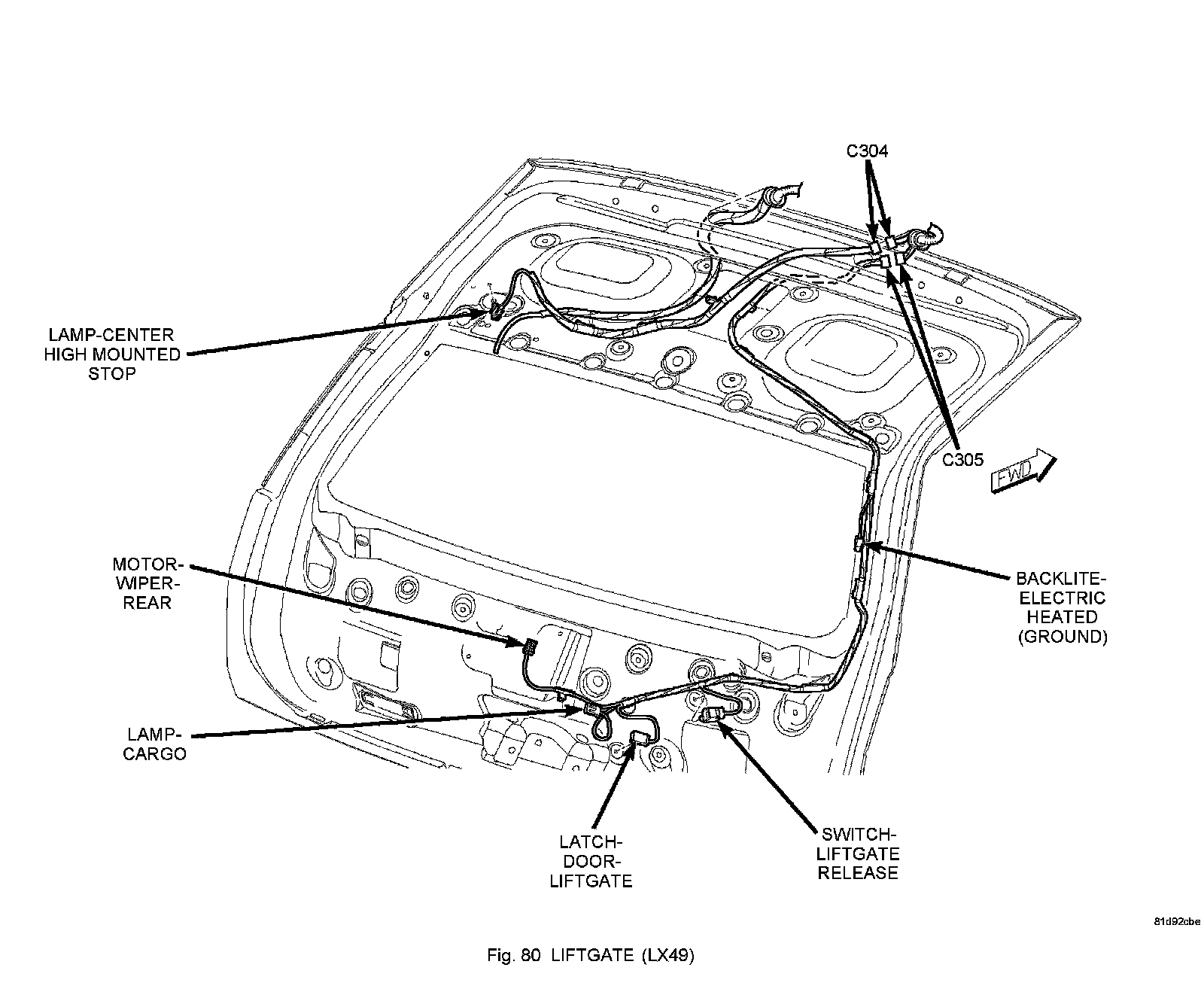

Component Location - 80
