System Specifications

Crankshaft Damper-Bolt 95 Nm (70 ft. lbs.)

Timing Belt Tensioner-Bolts 28 Nm (250 in. lbs.)

Timing Belt Tensioner Pulley Assembly-Bolt 61 Nm (45 ft. lbs.)

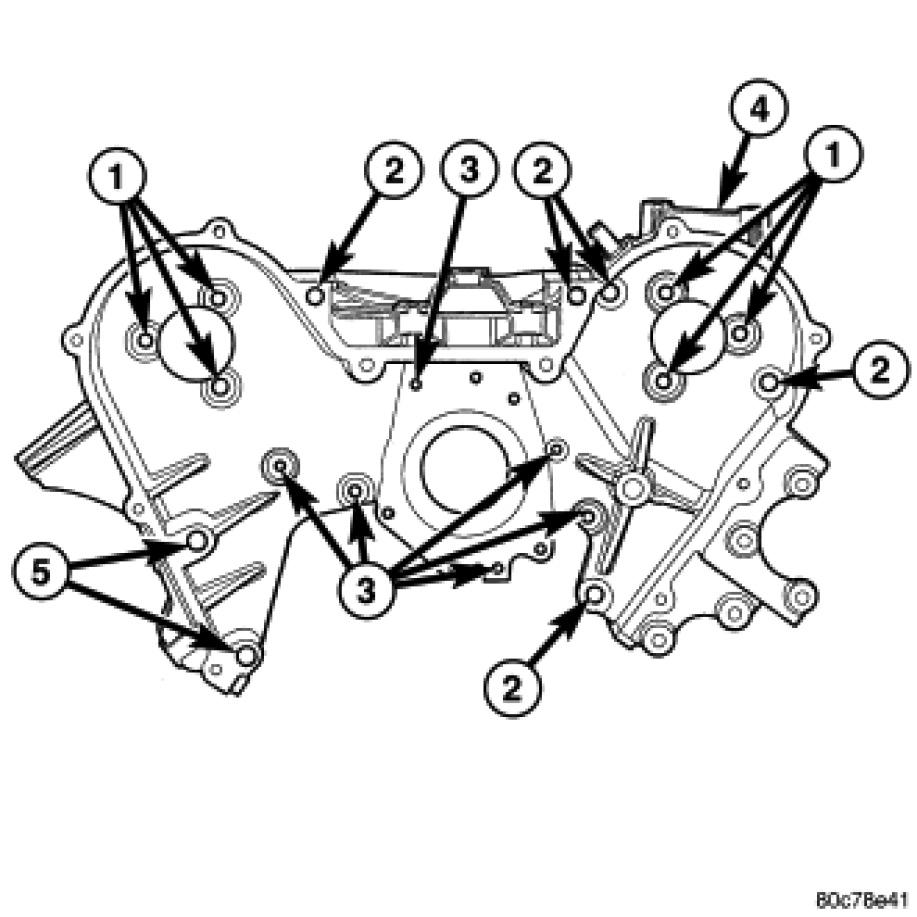

Timing Belt Cover
M6 Bolts 12 Nm (105 in. lbs.)
M8 Bolts 28 Nm (250 in. lbs.)
M10 Bolts 54 Nm (40 ft. lbs.)
