Engine Torque Specifications






SPECIFICATIONS - TORQUE

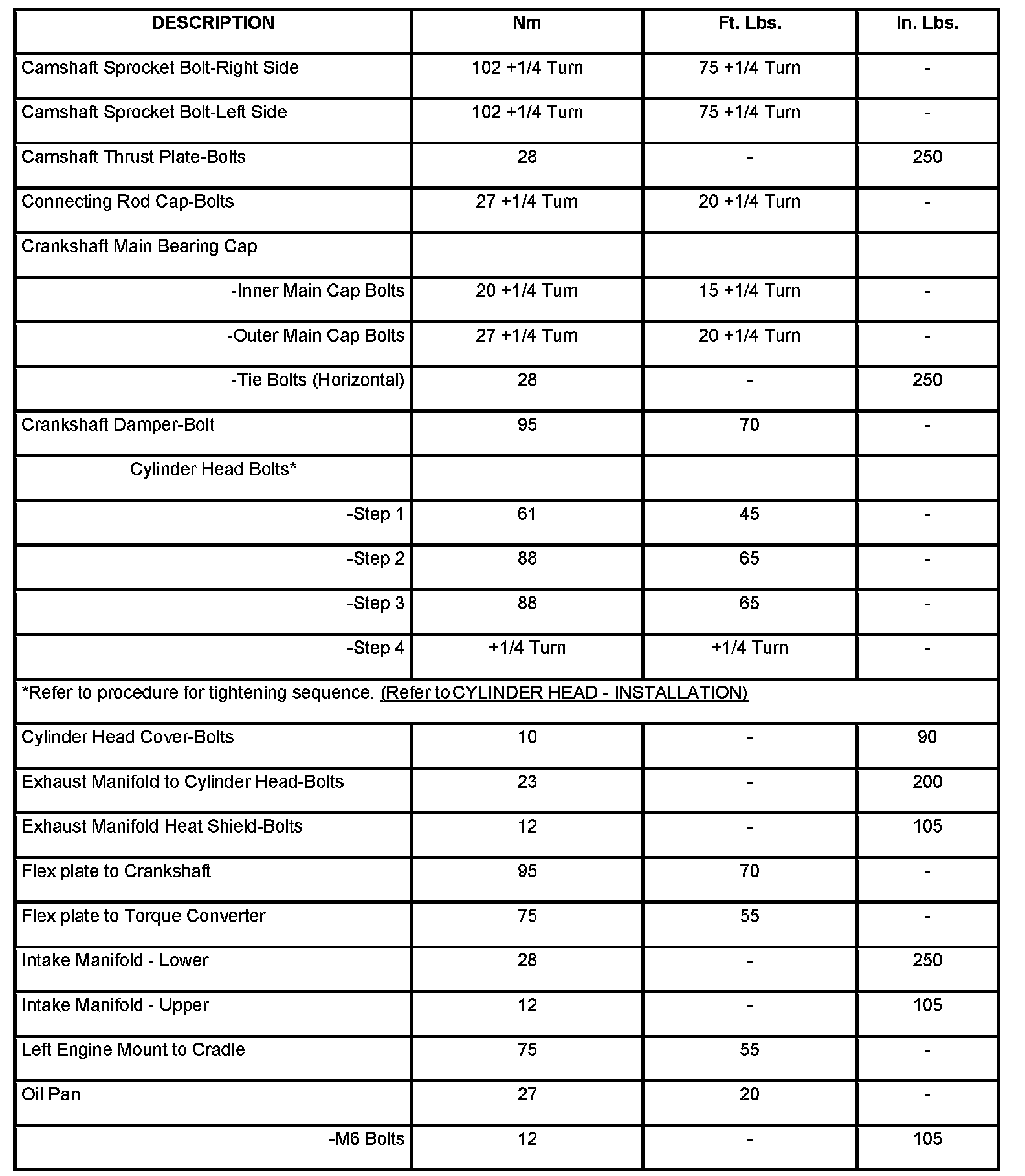

Torque (Part 1):





Torque (Part 1)

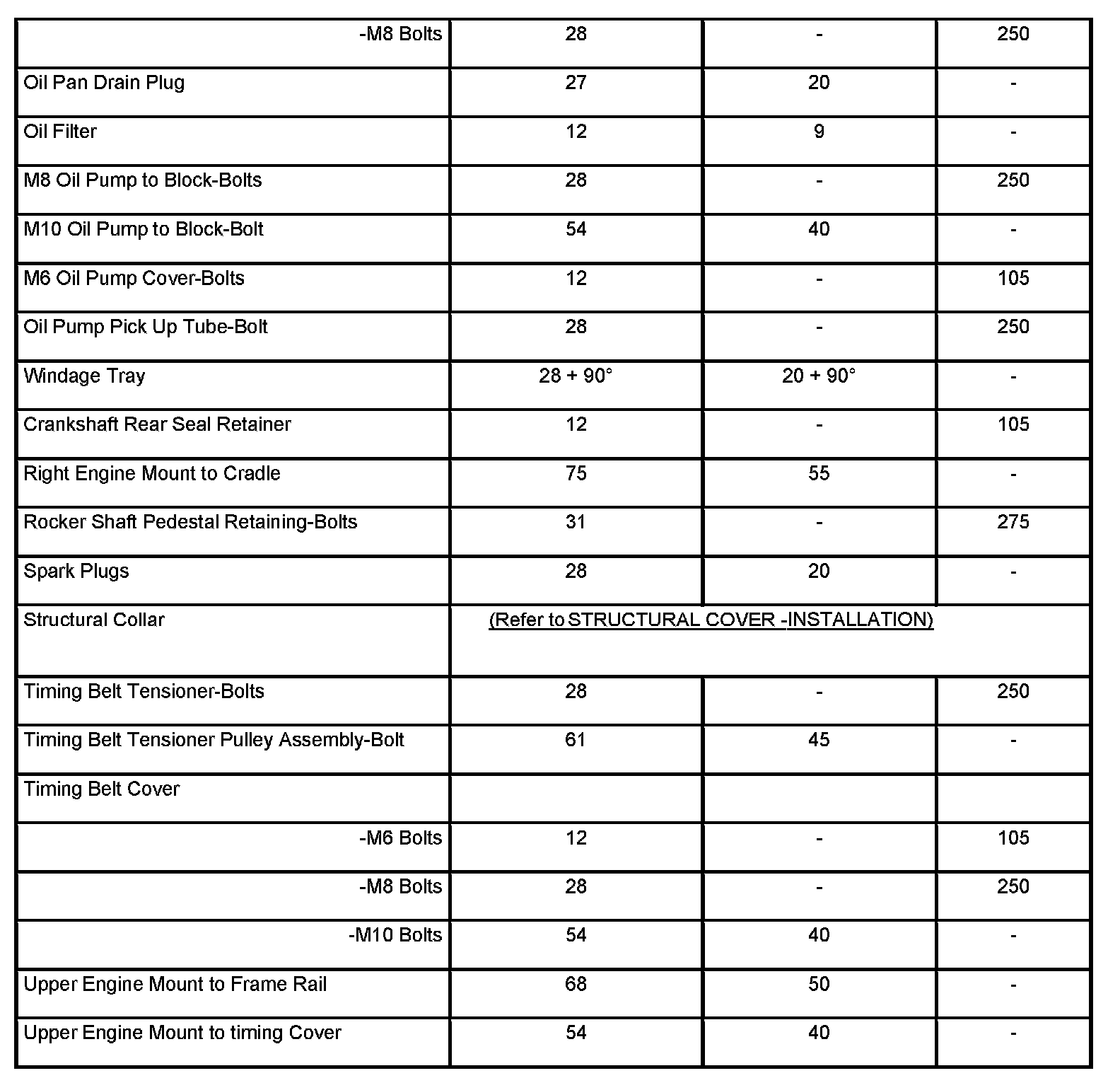

Torque (Part 2):





Torque (Part 2)

WATER PUMP
Tighten bolts to 12 Nm (105 in. lbs.)
