Flywheel

DIESEL

Flywheel

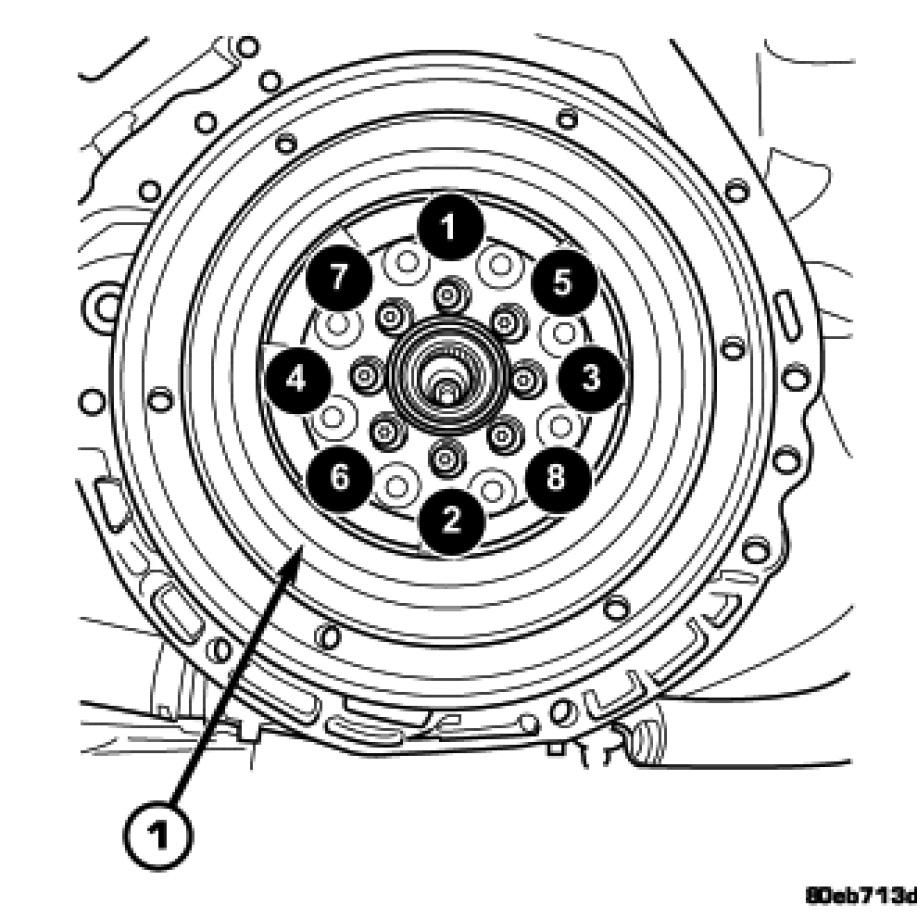

Install eight (8) flywheel-to-crankshaft bolts.
Tighten to 45 Nm (33 ft. lbs.)
Plus an additional 1/4 turn (90 degrees).

GAS

Flywheel





Install and torque the flywheel-to-crankshaft bolts
Tighten to 95 Nm (70 ft.lbs.)
