Installation

INSTALLATION

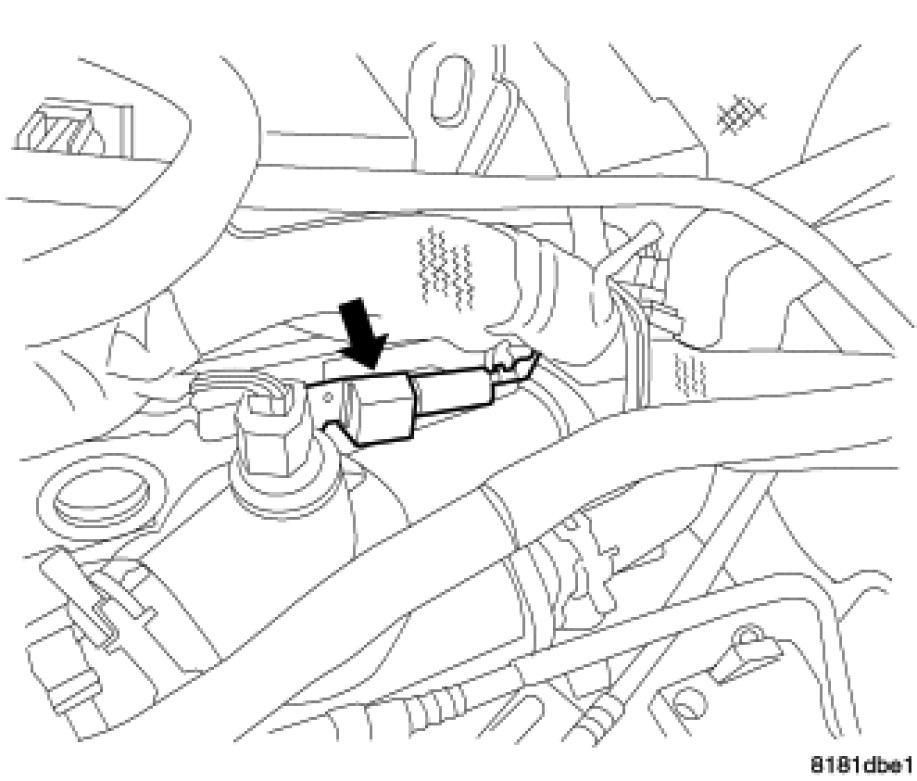

IGNITION COIL CAPACITOR - 2.0/2.4L

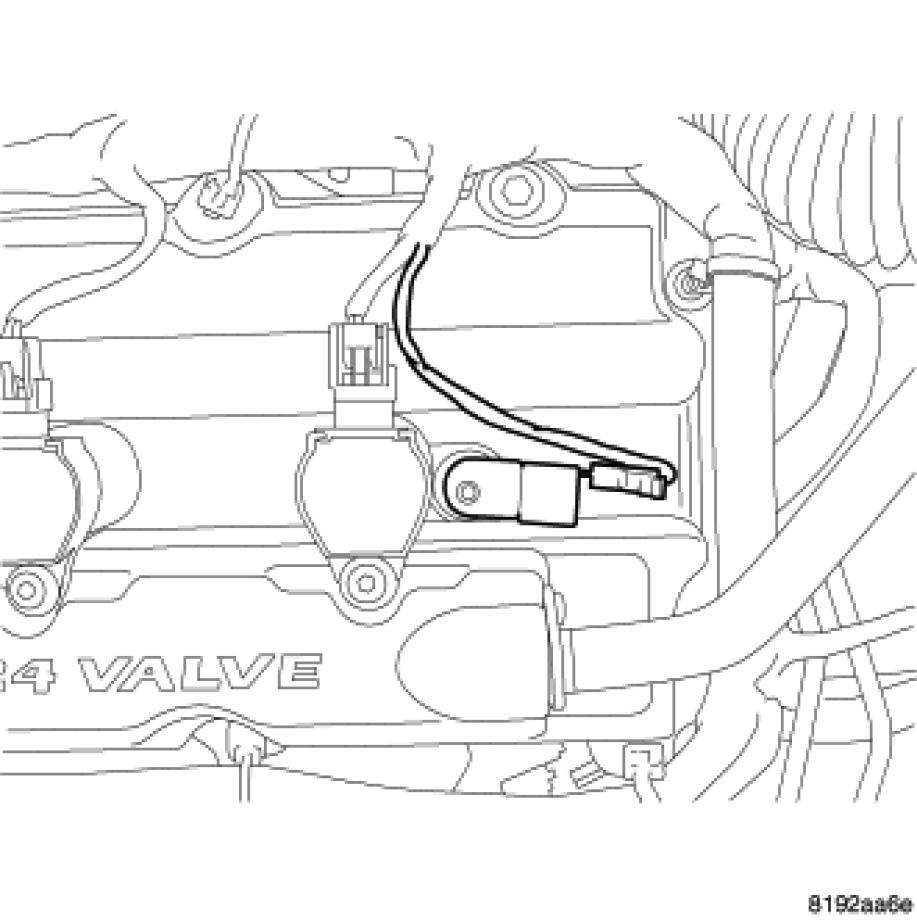

IGNITION COIL CAPACITOR - 2.7L
1. Install capacitor and tighten nut to 10 Nm (88.5 in. lbs.).

2. Attach electrical connector to capacitor.

3. Install the negative battery cable.
