Home >> Chrysler >> 2007 >> Sebring Sedan L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Relay Box

Relay Box



C1:

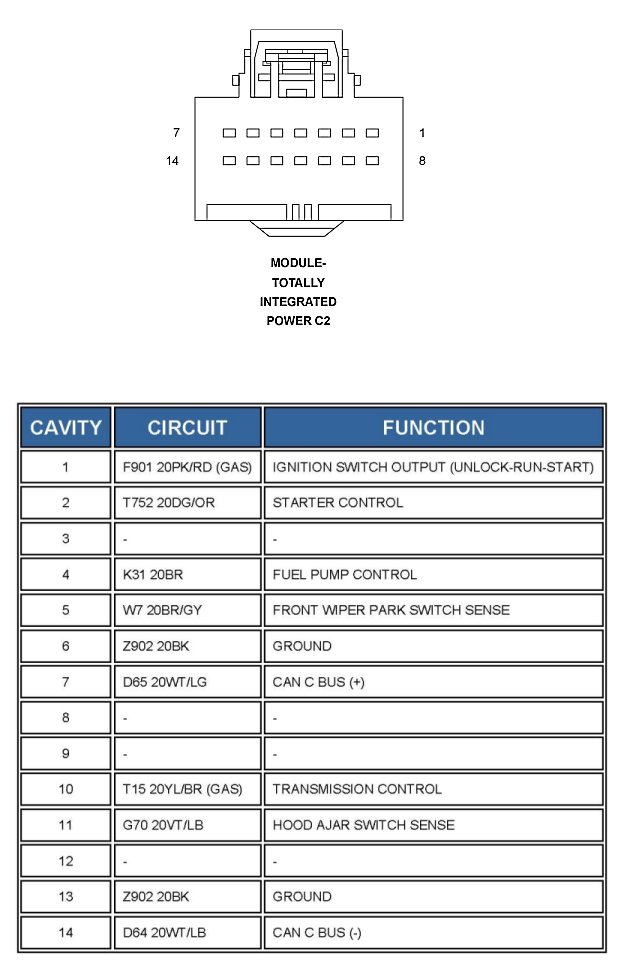

C2:

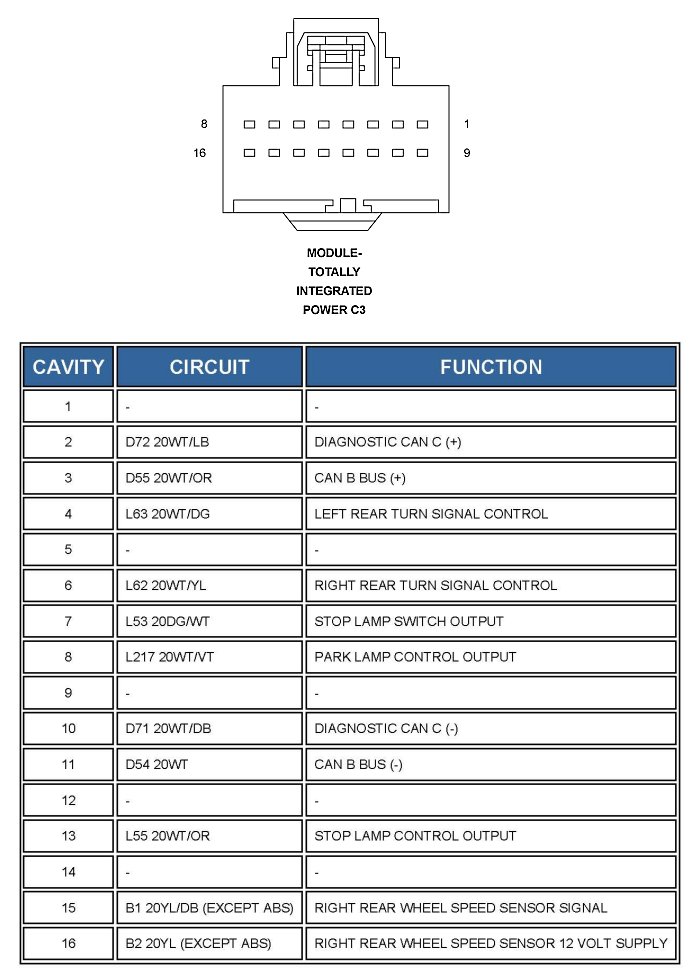

C3:

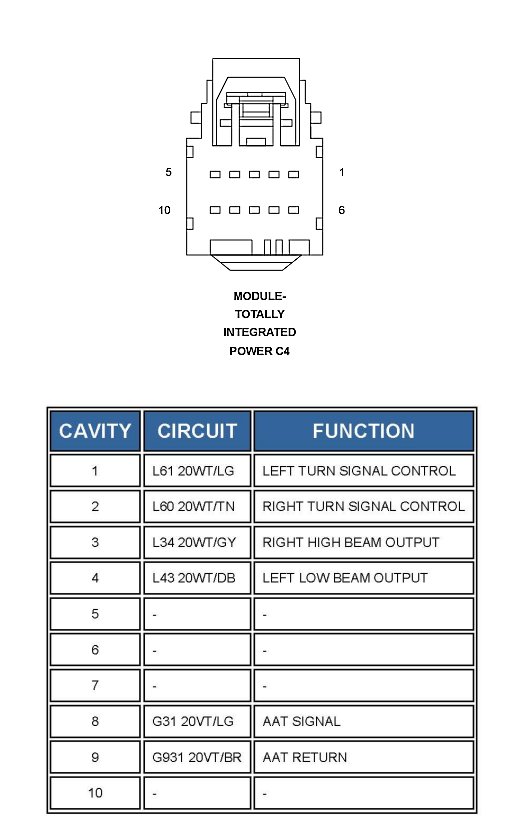

C4:

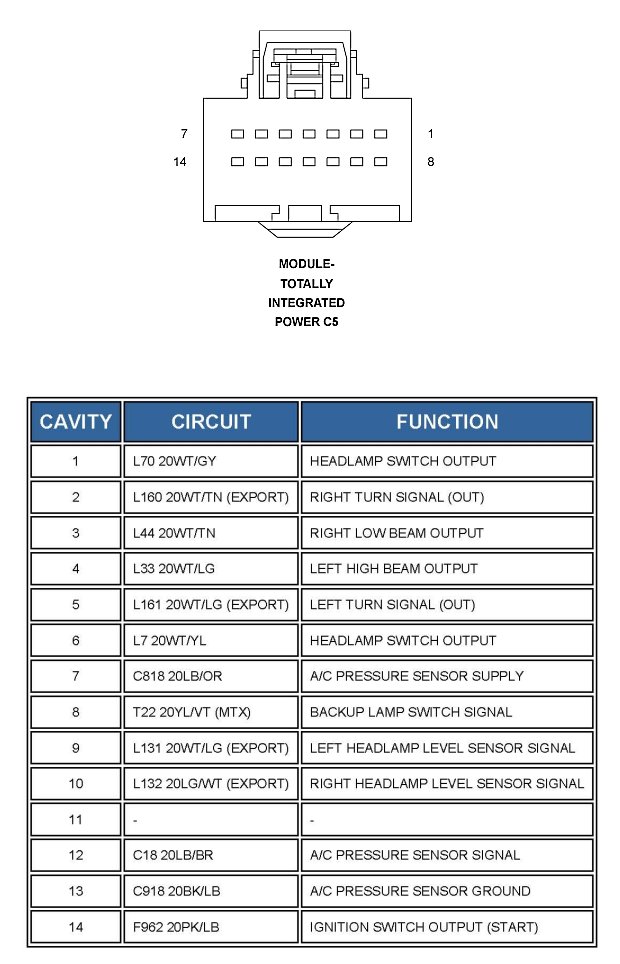

C5:

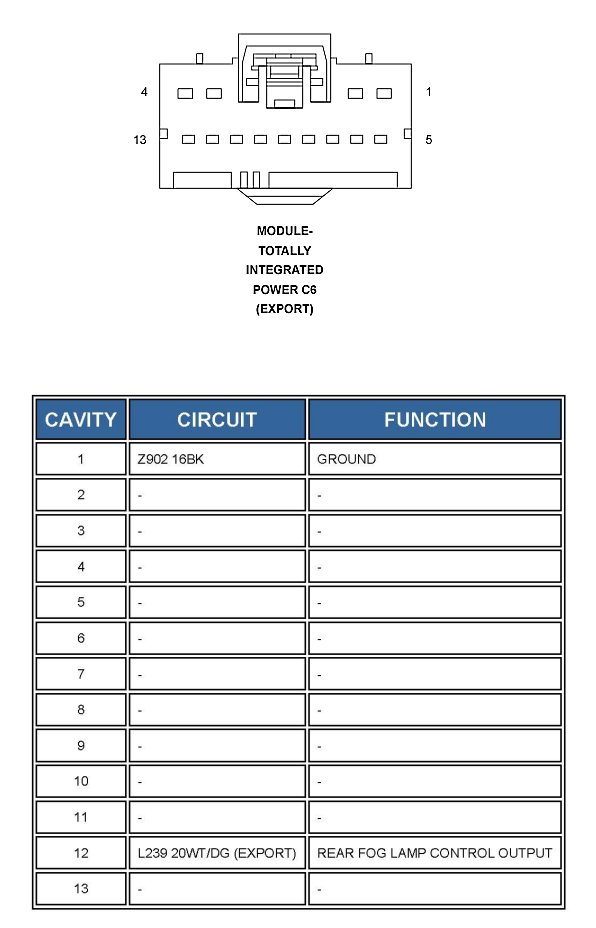

C6:

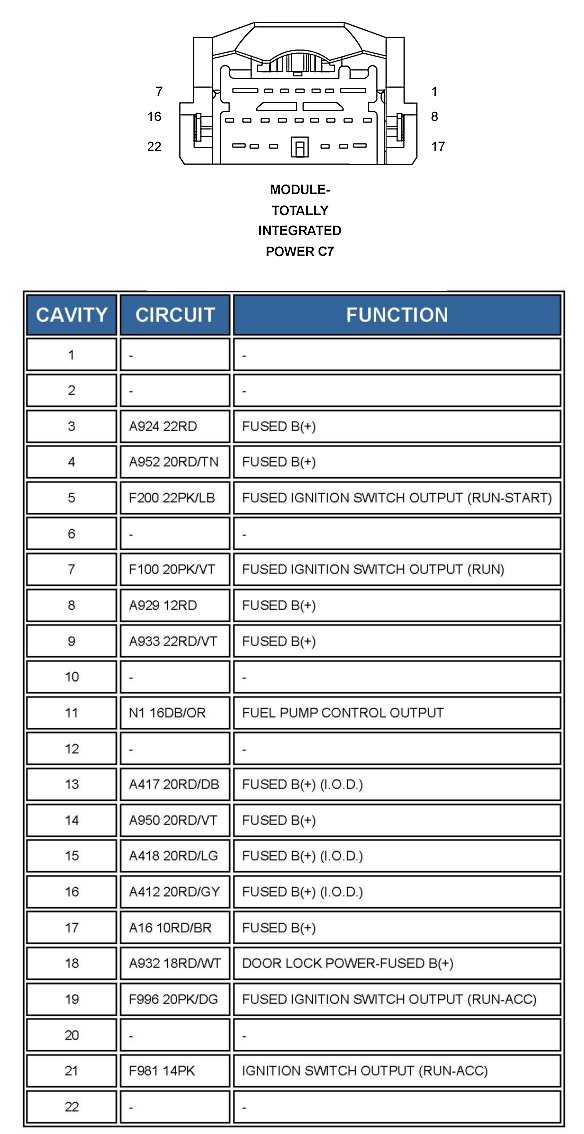

C7:

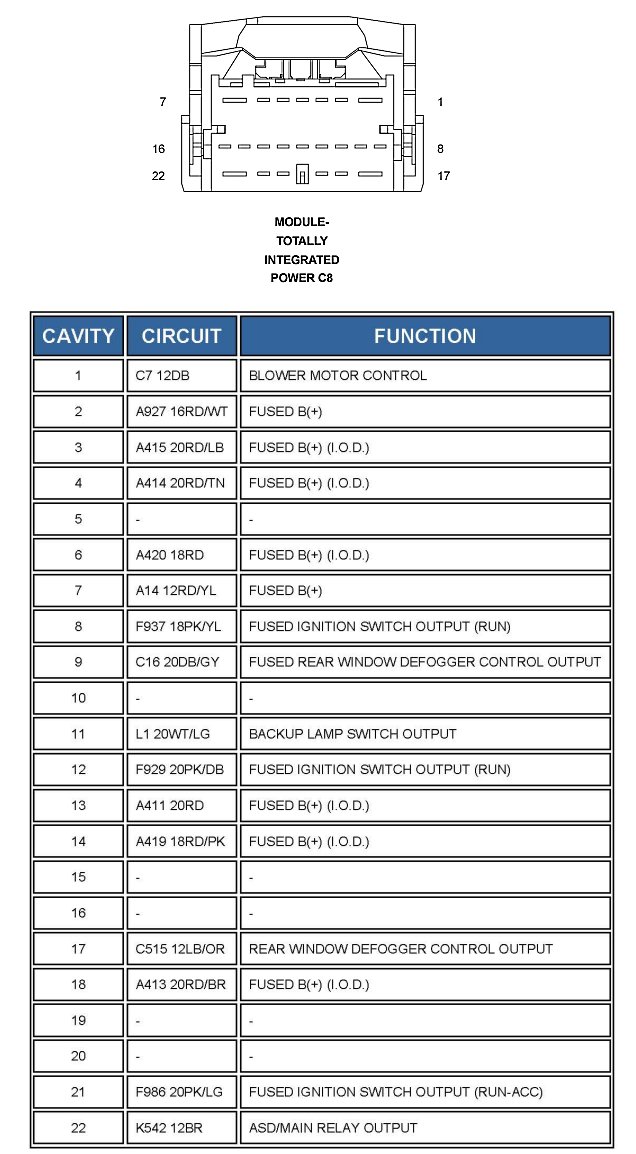

C8:

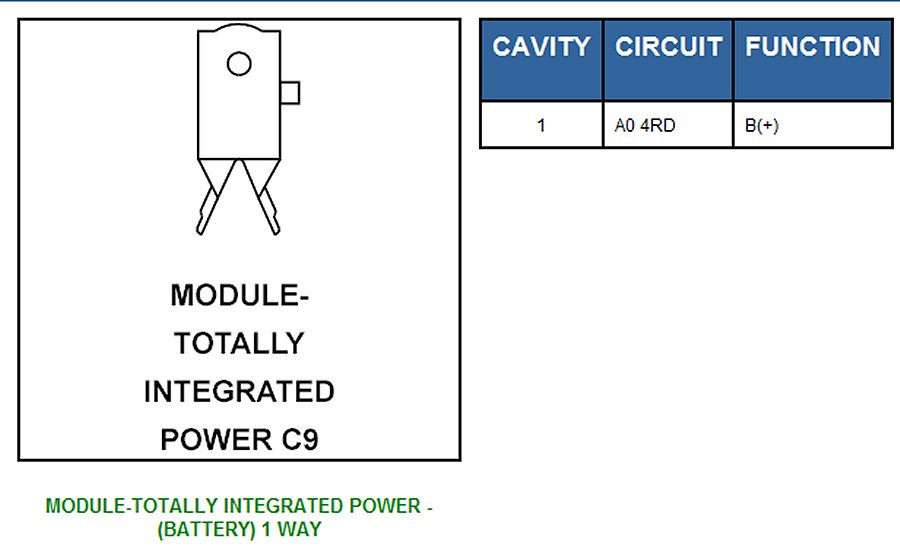

C9:

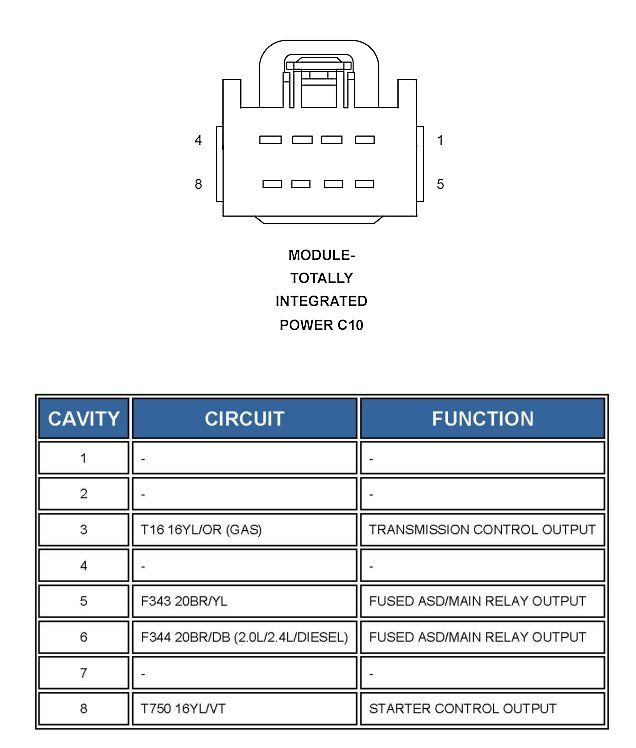

C10:

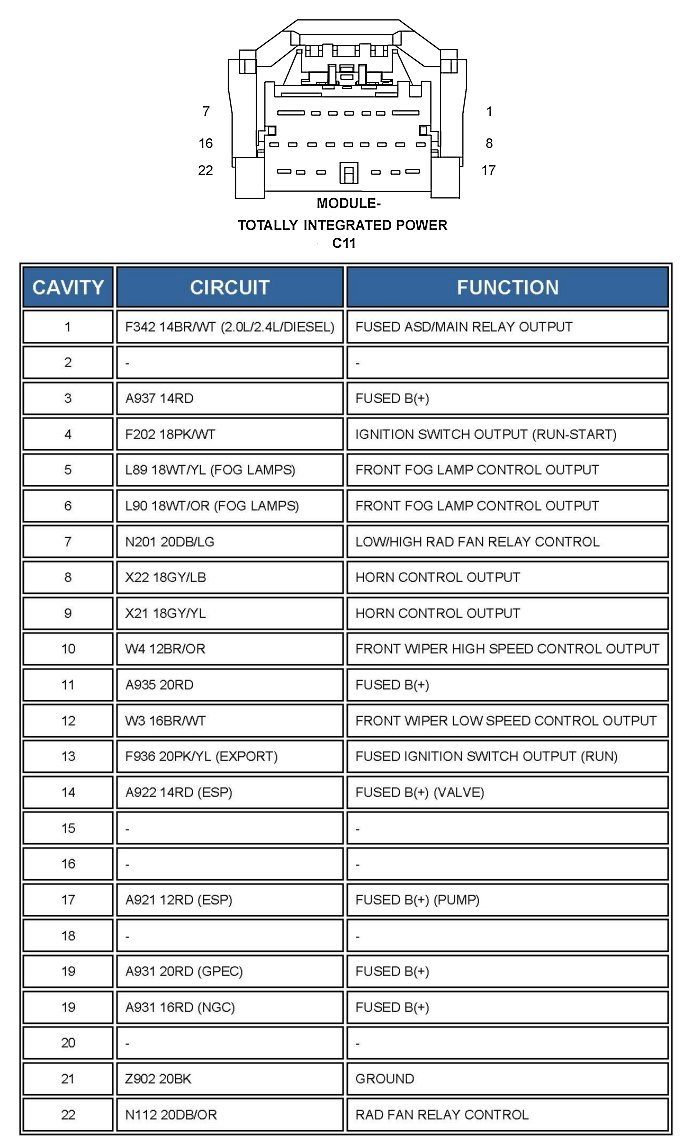

C11:
