Installation

3.8L

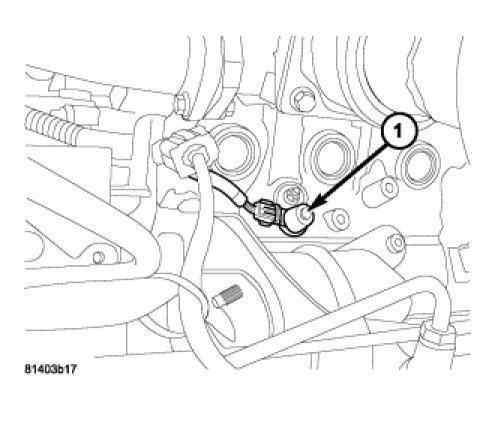

1. Install knock sensor. Tighten knock sensor to 20 Nm (15.2 in. lbs.) torque (1). Over or under tightening effects knock sensor performance, possibly causing improper spark control.

2. Route the knock sensor wire in the proper location.

3. Connect the electrical connector.

4. Lower vehicle.

5. Connect the negative battery cable.
