Curb Height Specifications

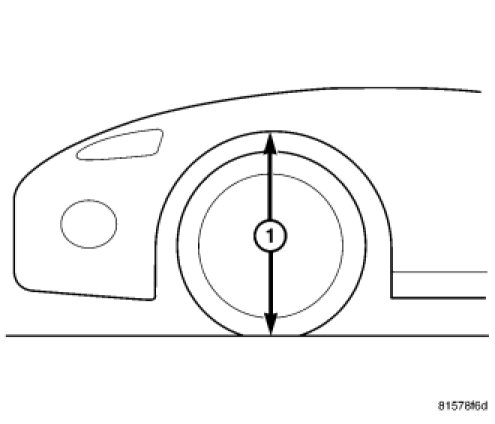

CURB HEIGHT SPECIFICATIONS

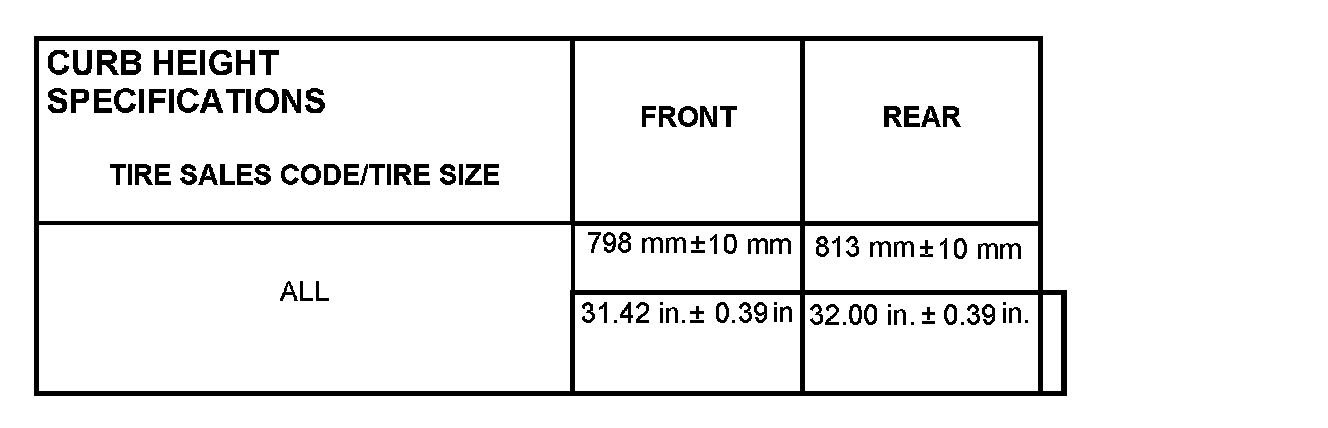

Curb Height Specifications:






NOTE: When measuring curb height, the maximum left-to-right differential is not to exceed 12.5 mm (0.5 in.).
