Timing Cover

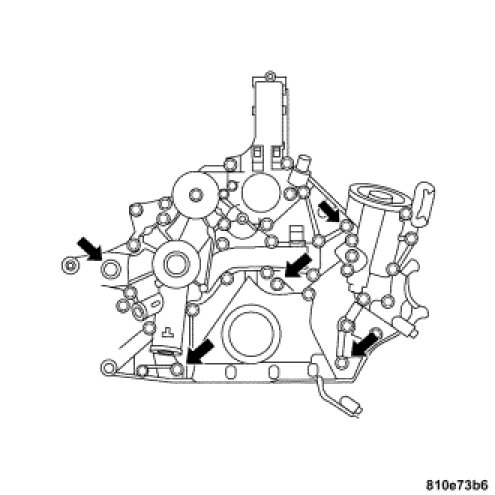

NOTE: Ensure that the bolts indicated by the arrows are installed with thread sealer prior to assembly.

Timing Chain Cover Bolts 20 Nm (15 ft. lbs.) 177 in. lbs.
