Service Specifications






ENGINE

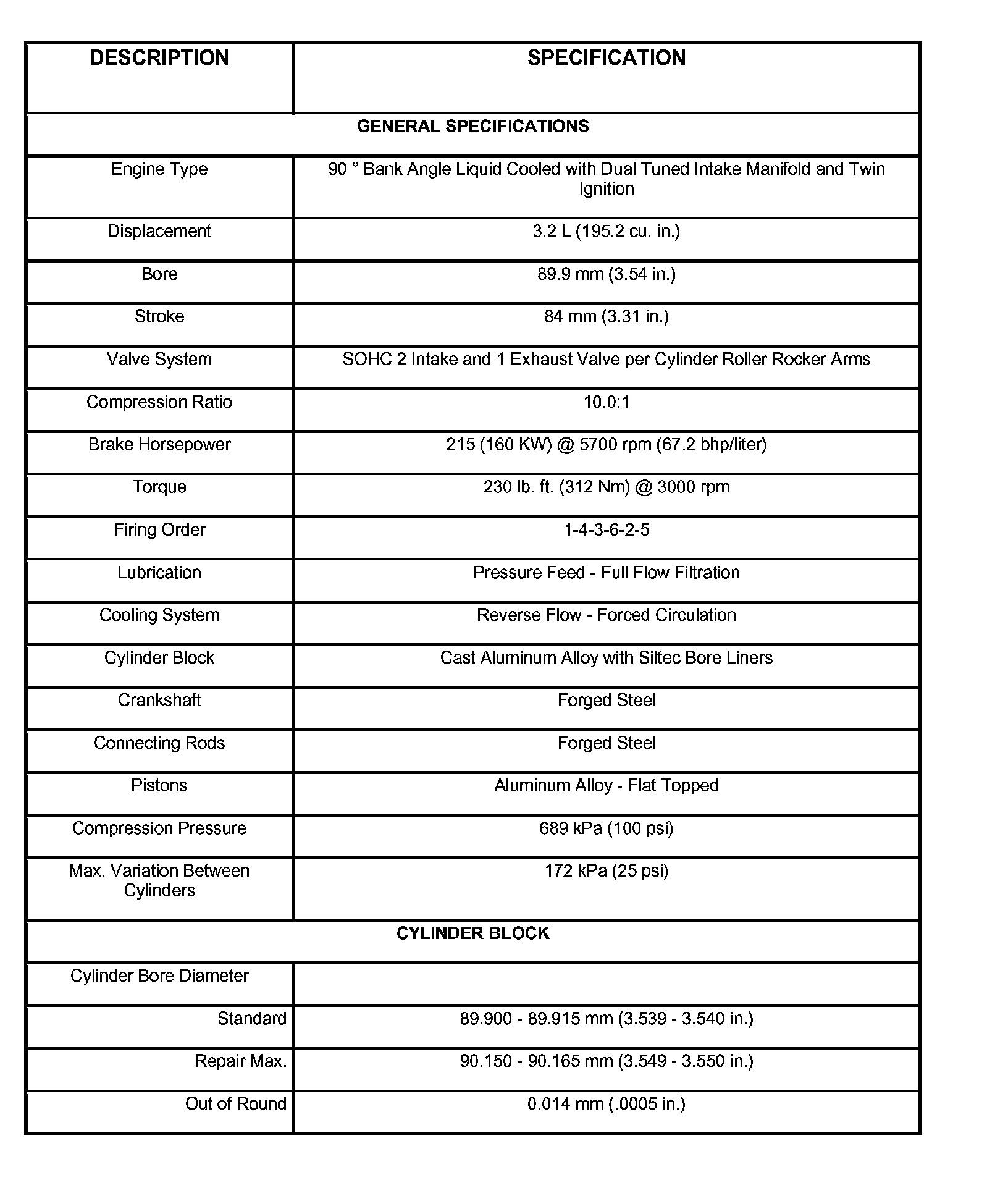

Engine (Part 1):





Engine (Part 1)

Engine (Part 2):





Engine (Part 2)

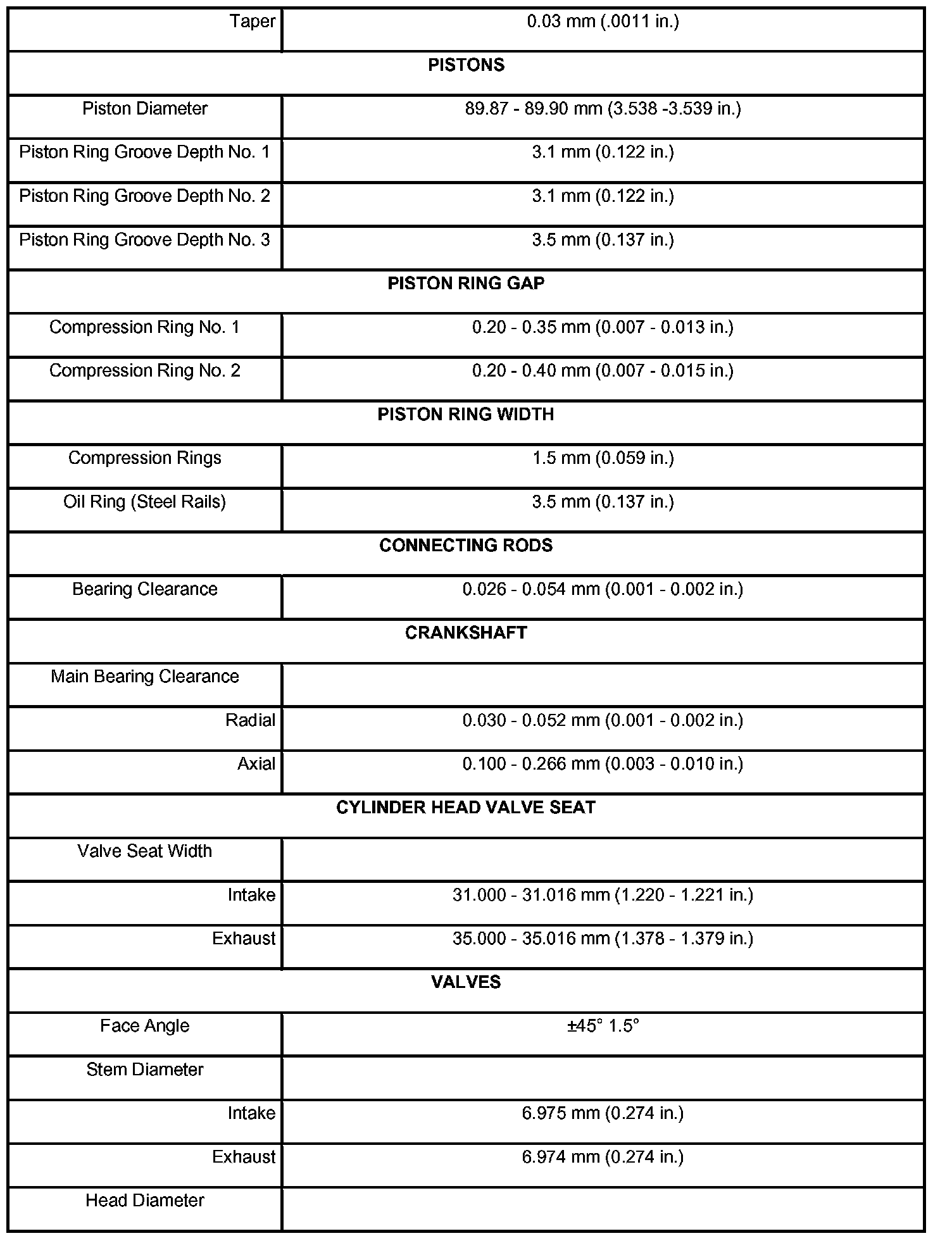

Engine (Part 3):





Engine (Part 3)
