Coolant Temperature Sensor/Switch (For Computer): Locations

Component ID: 83
Component : ENGINE COOLANT TEMPERATURE SENSOR

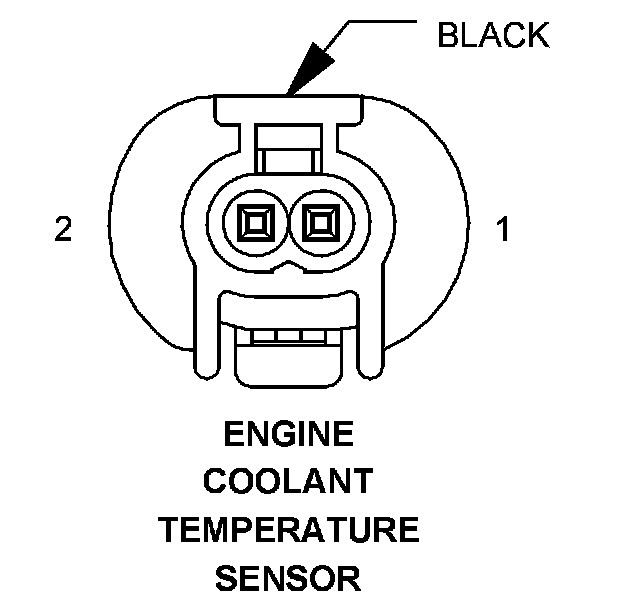

Connector:
Name : ENGINE COOLANT TEMPERATURE SENSOR
Color : BLACK
# of pins : 2




Pin Description Circuit
1 ENGINE COOLANT TEMPERATURE SENSOR SIGNAL 20DG/RD
2 SENSOR GROUND 20BR/WT

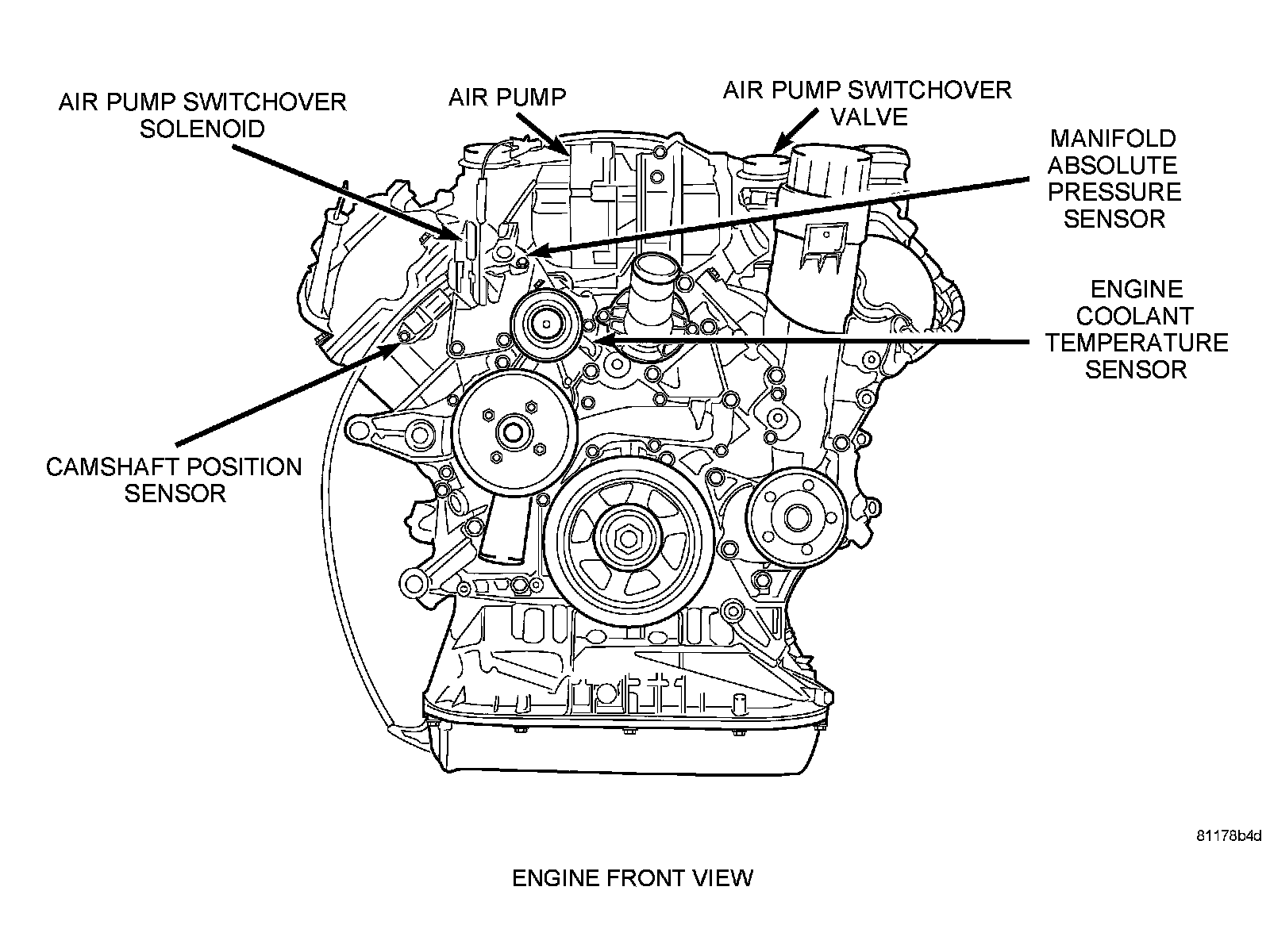

Component Location - 8
