Home >> Chrysler >> 2007 >> Aspen 2WD V8-5.7L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine Torque Specifications

Engine Torque Specifications






TORQUE

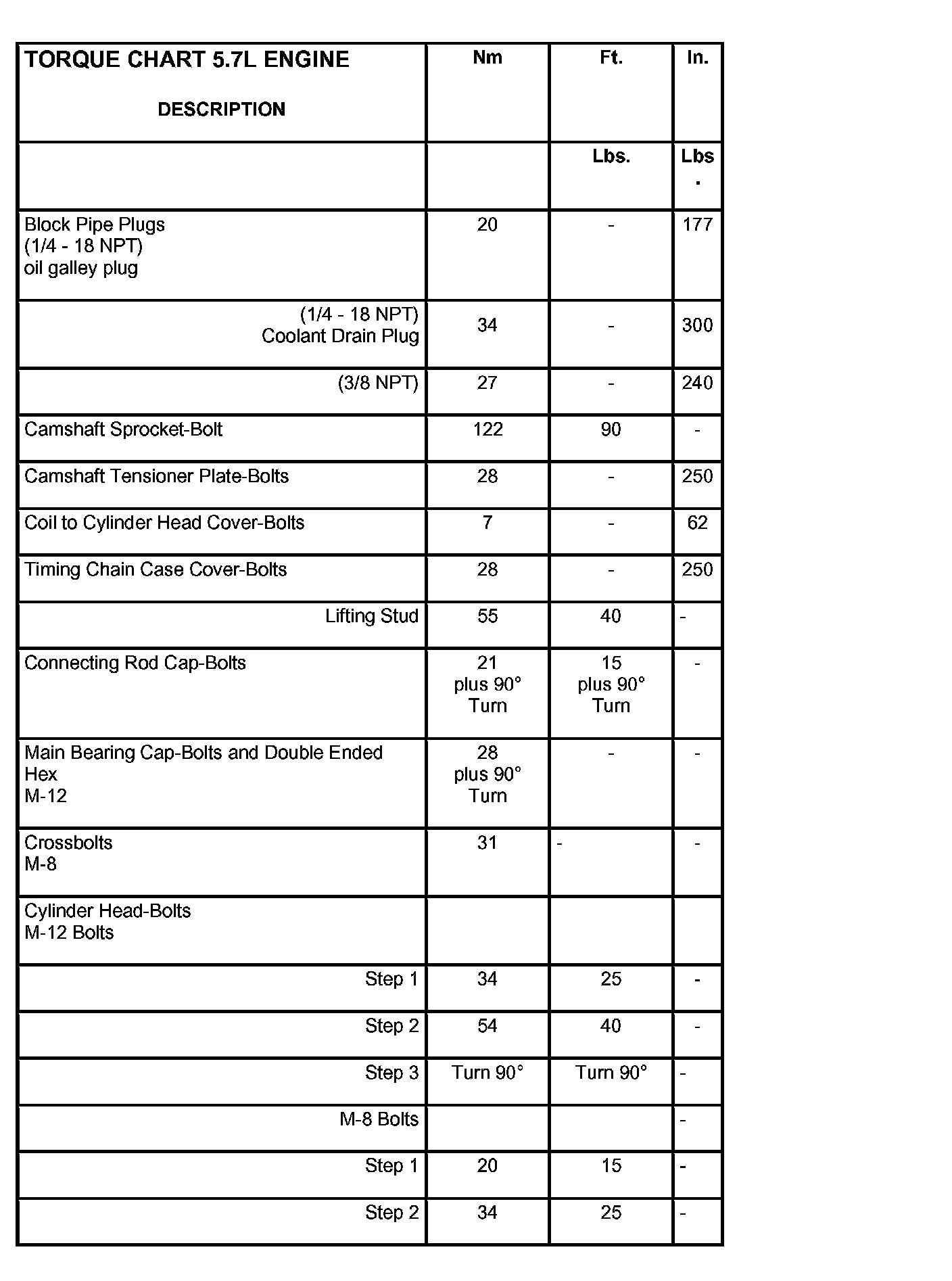

Torque Chart 5.7L Engine (Part 1):





Torque Chart 5.7L Engine (Part 1)

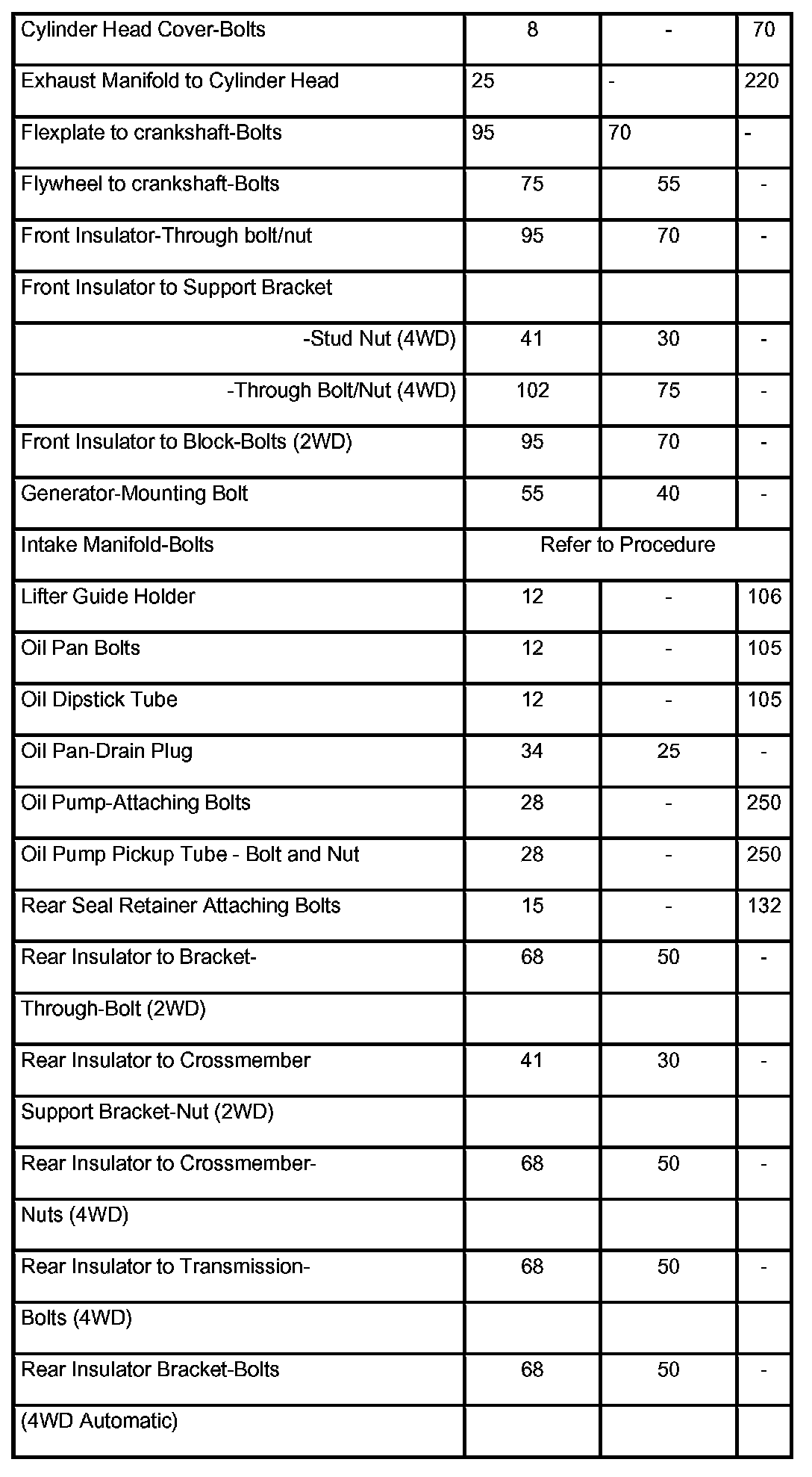

Torque Chart 5.7L Engine (Part 2):





Torque Chart 5.7L Engine (Part 2)

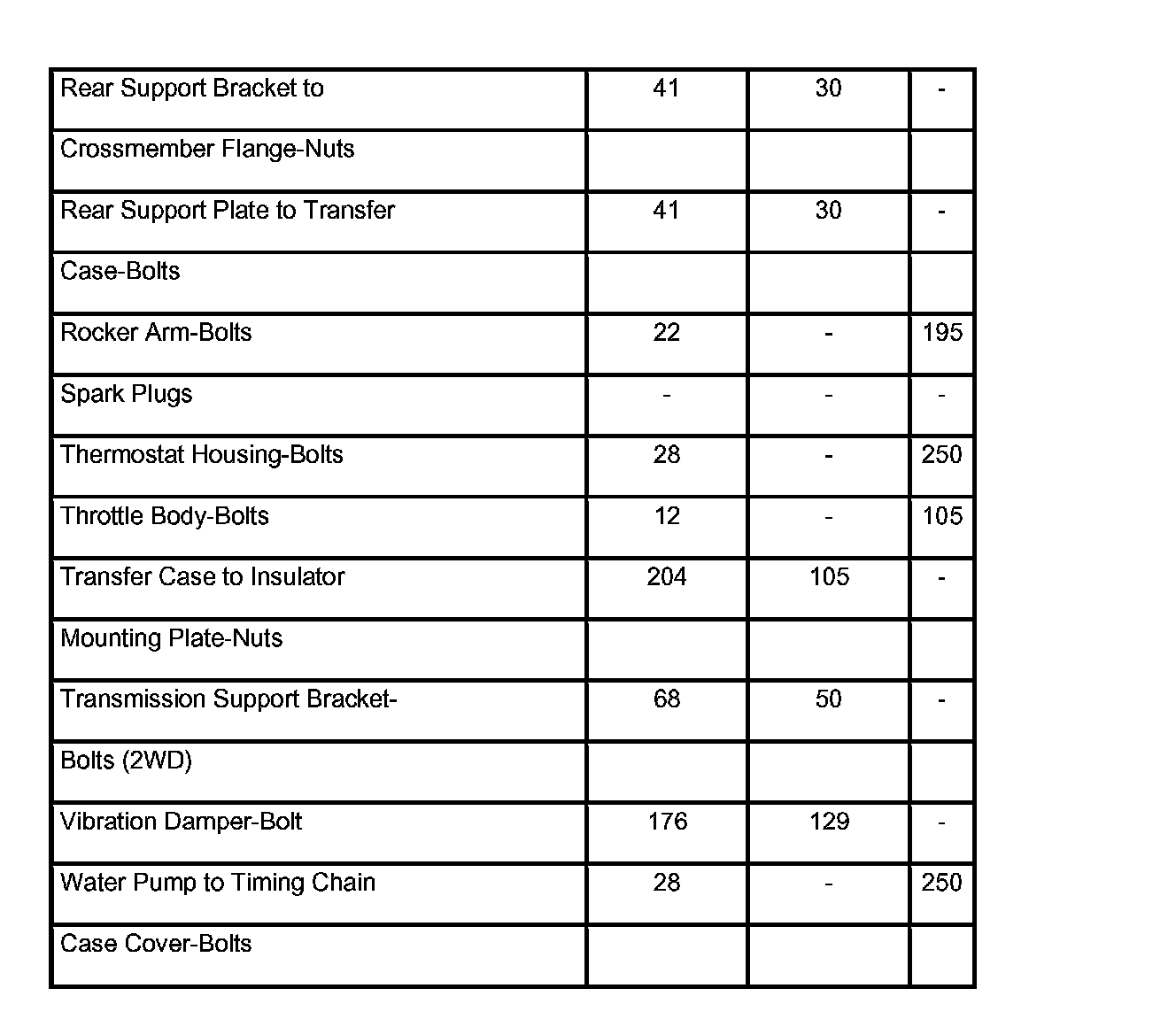

Torque Chart 5.7L Engine (Part 3):





Torque Chart 5.7L Engine (Part 3)
