System Specifications

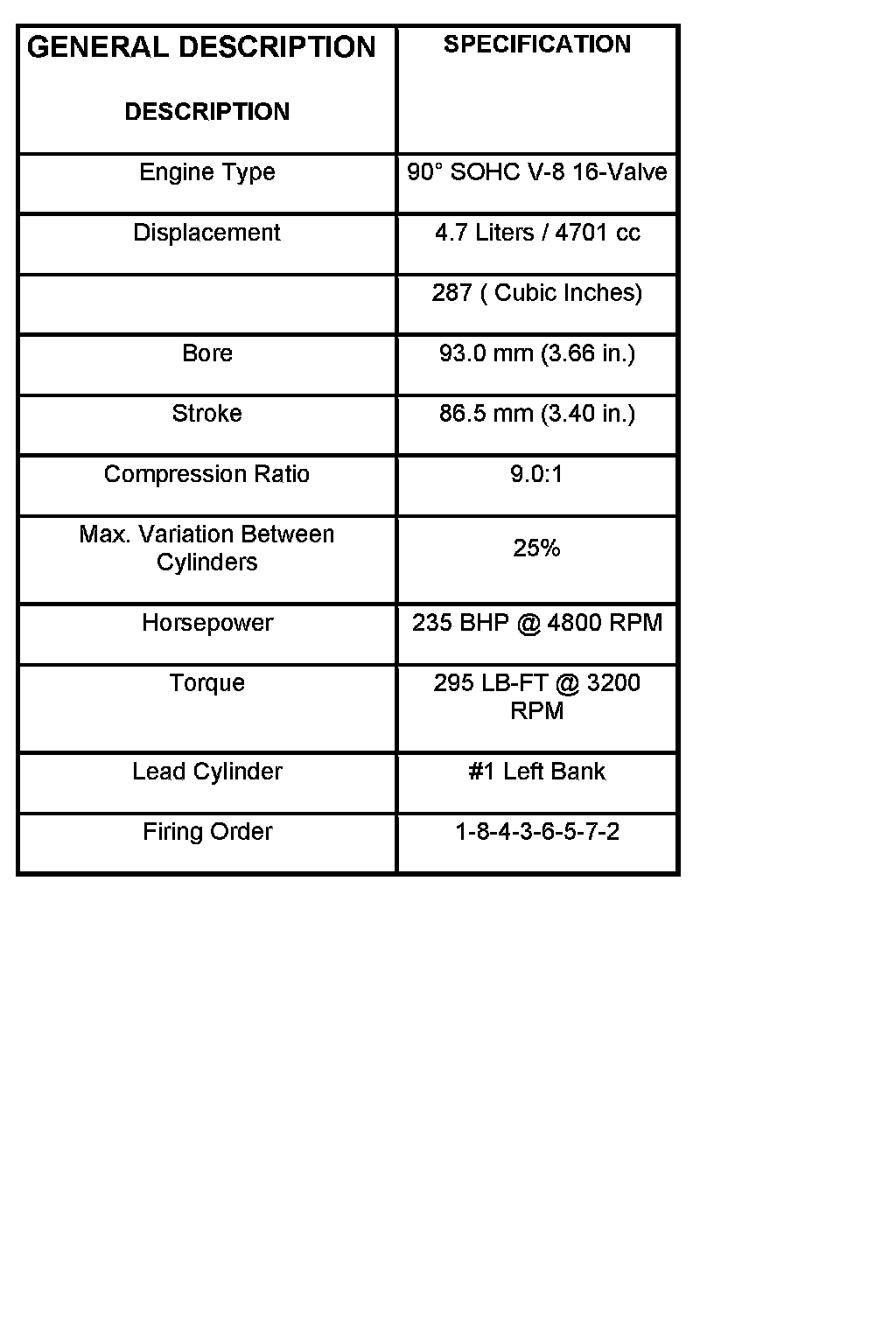

General Description:

General Description

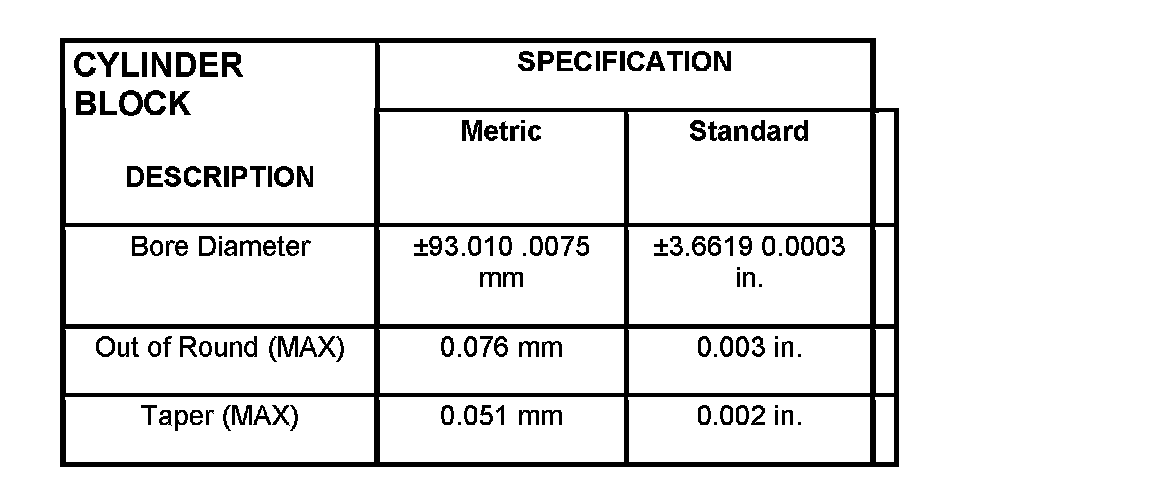

Cylinder Block:

Cylinder Block

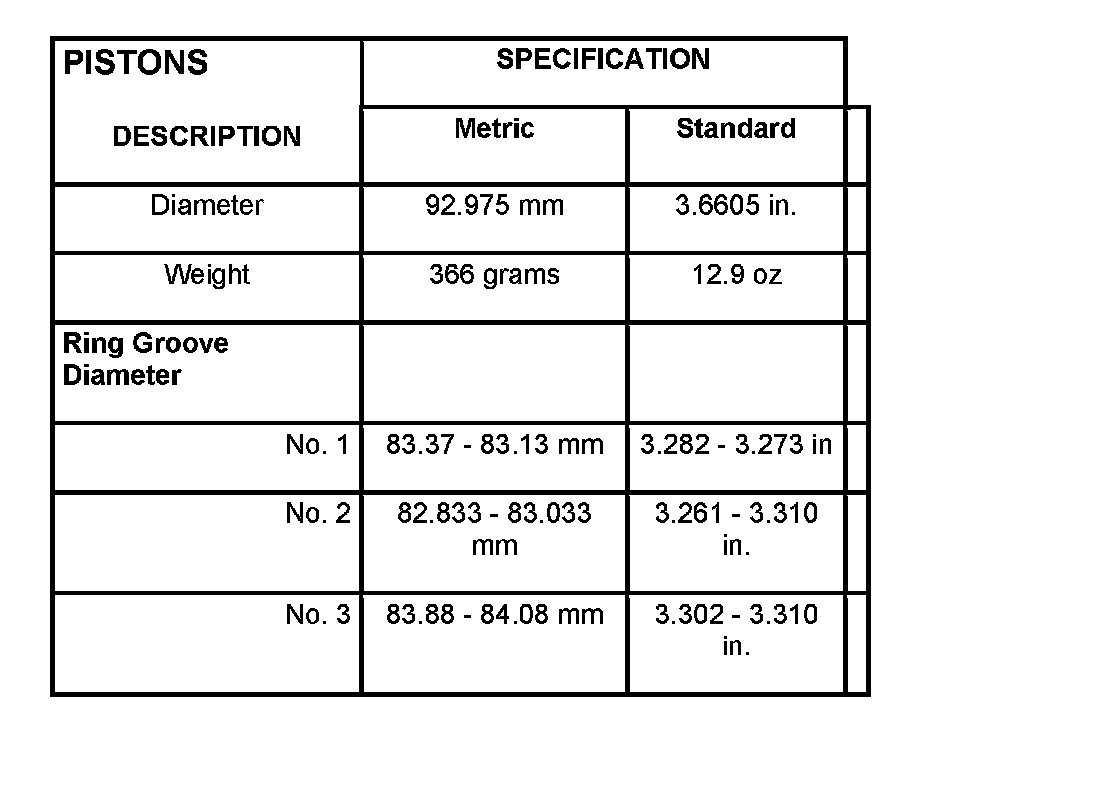

Pistons:

Pistons

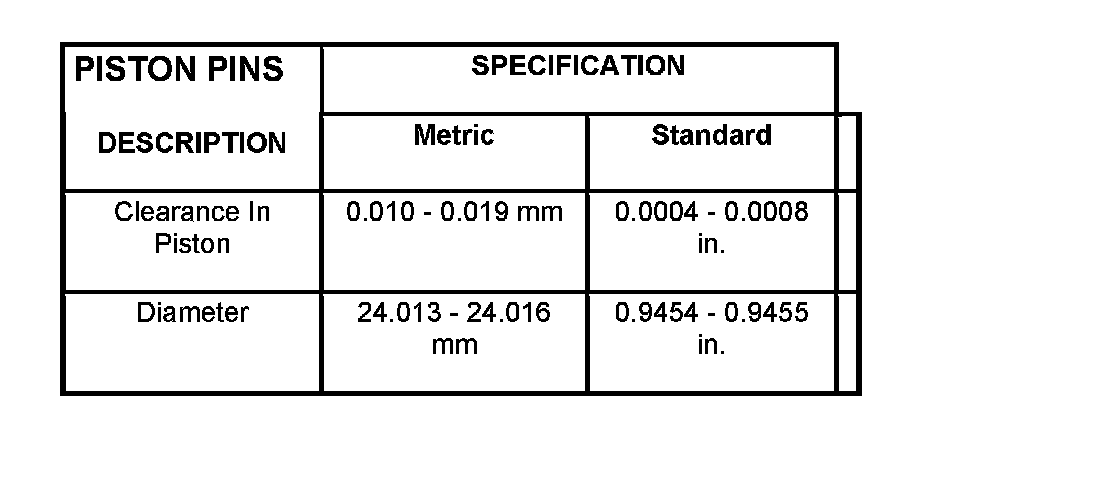

Piston Pins:

Piston Pins

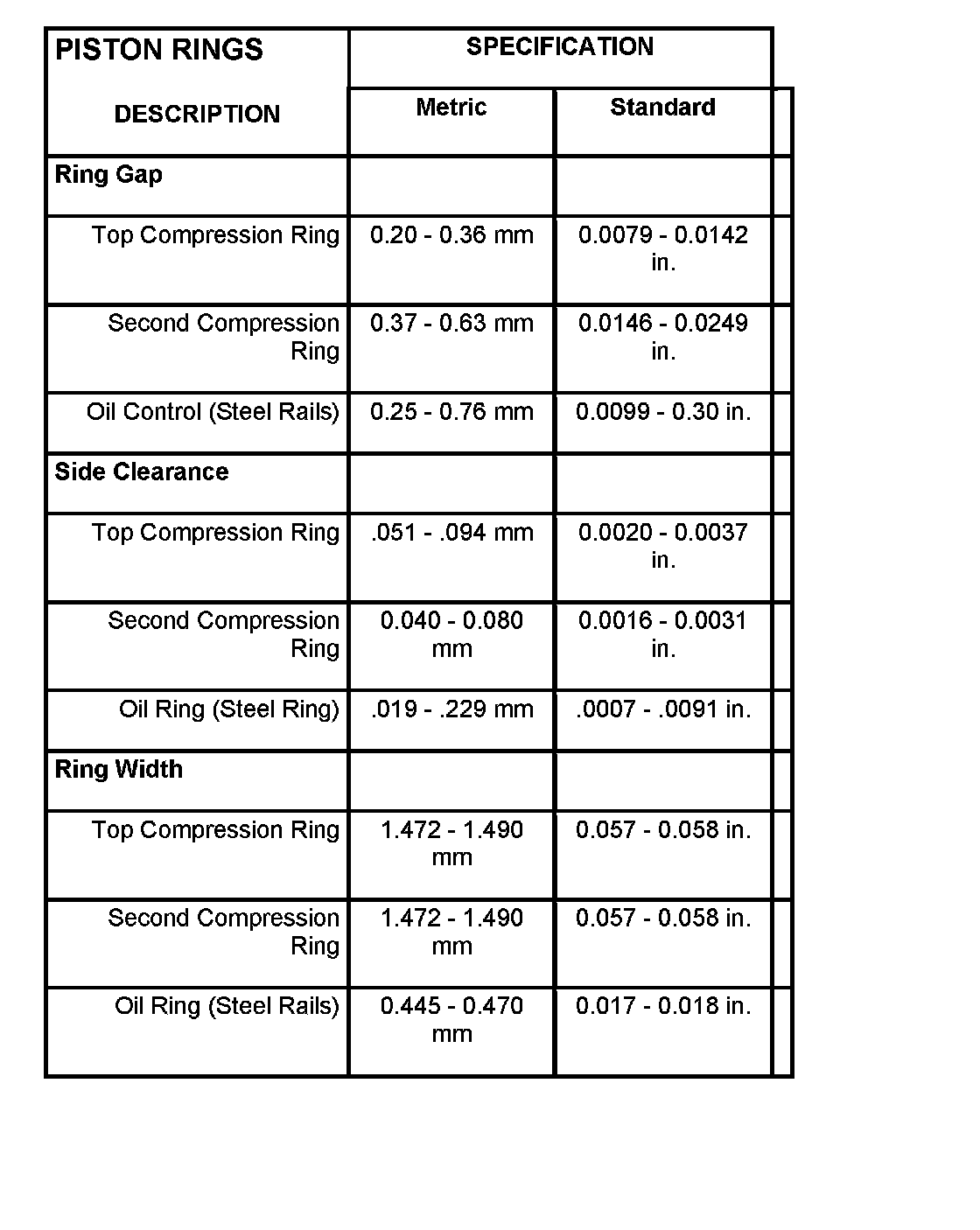

Piston Rings:

Piston Rings

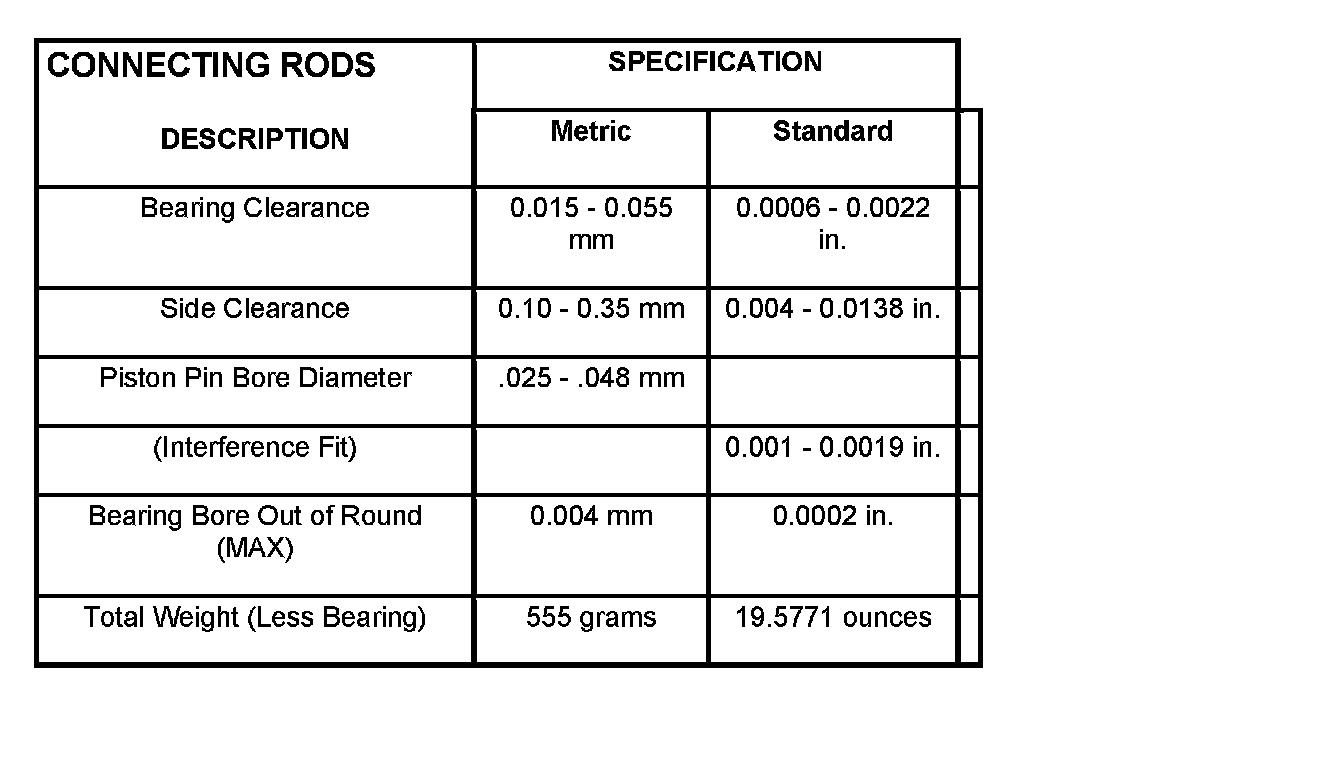

Connecting Rods:

Connecting Rods

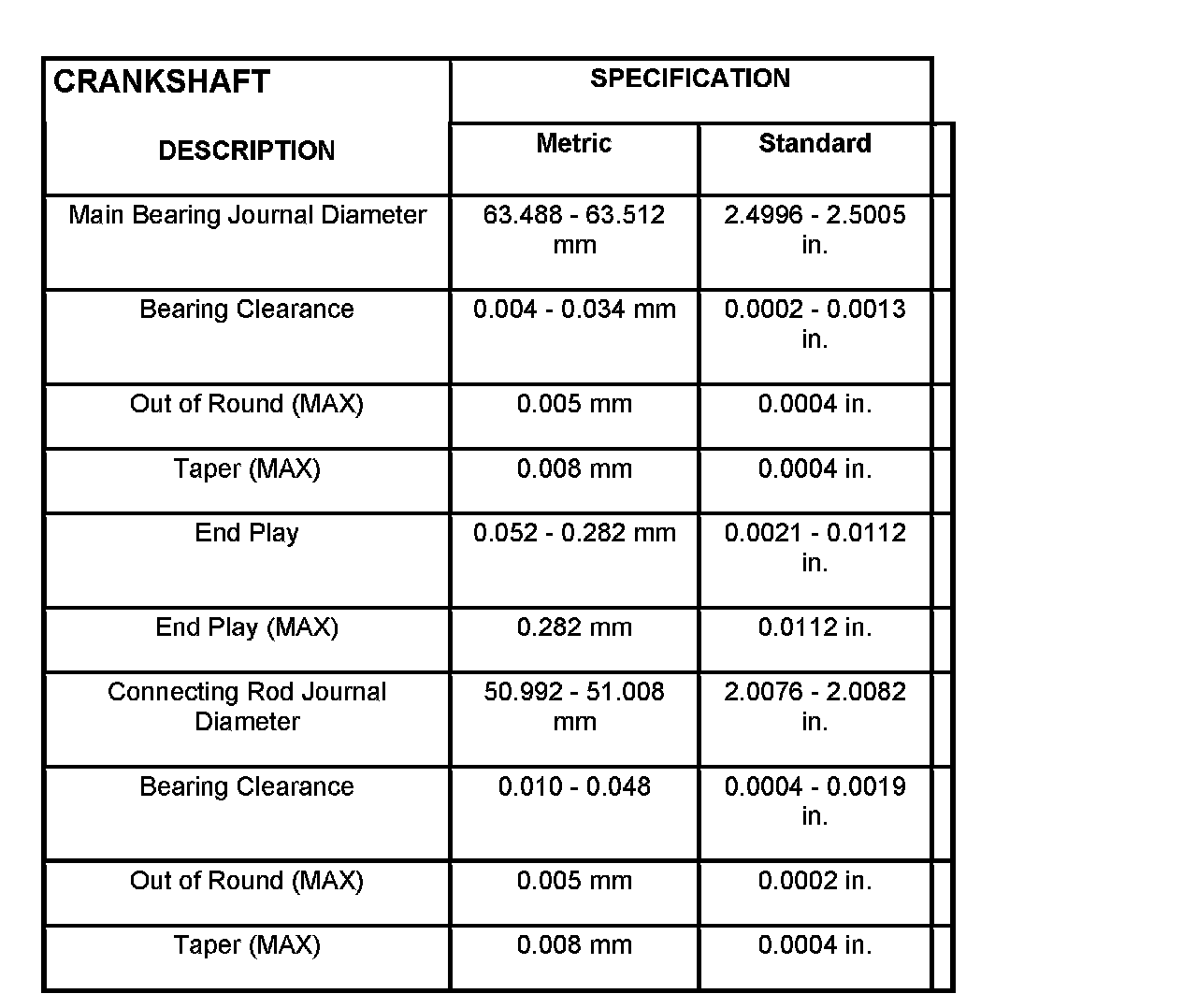

Crankshaft:

Crankshaft

Connecting Rod cap - bolts 27 Nm (20 ft. lbs.) Plus 90° TURN

Crankshaft Damper-bolt 175 Nm (130 ft. lbs.)

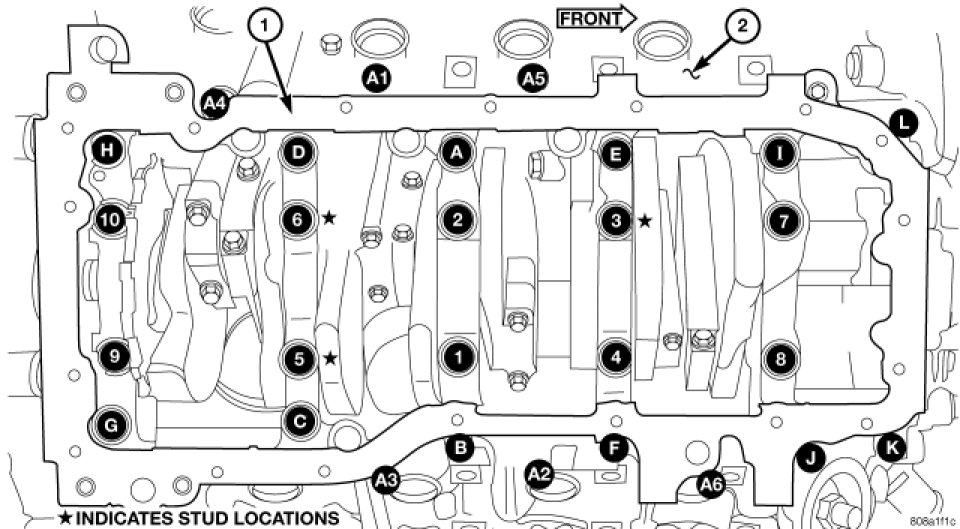

Bed Plate Bolts
Tighten bolts A - L to 54 Nm (40 ft. lbs.)
Tighten bolts 1 - 10 to 2.8 Nm (25 in. lbs.)
Turn bolts 1 - 10 an additional 90�.
Tighten bolts A1 - A6 to 27 Nm (20 ft. lbs.)
