Knock Sensor: Locations




Component ID: 367

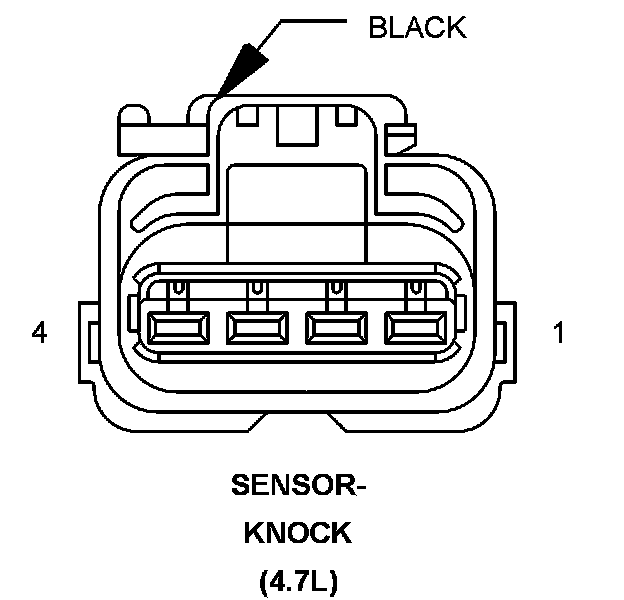

Component : SENSOR-KNOCK

Connector:
Name : SENSOR-KNOCK
Color : BLACK
# of pins : 4
Qualifier : (4.7L)




Pin Description Circuit
1 KNOCK SENSOR NO. 1 SIGNAL K42 20DB/OR
2 KNOCK SENSOR NO. 1 RETURN K942 20YL/DG
3 KNOCK SENSOR NO. 2 SIGNAL K242 20DB/OR
4 KNOCK SENSOR NO. 2 RETURN K924 20DG/RD

Component Location - 16

Fig. 16:
