Removal

REMOVAL




1. Disconnect the negative and positive battery cables.

2. Unsnap cover and remove the B+ terminal nut from the integrated power module (IPM). Remove the B+ cable.

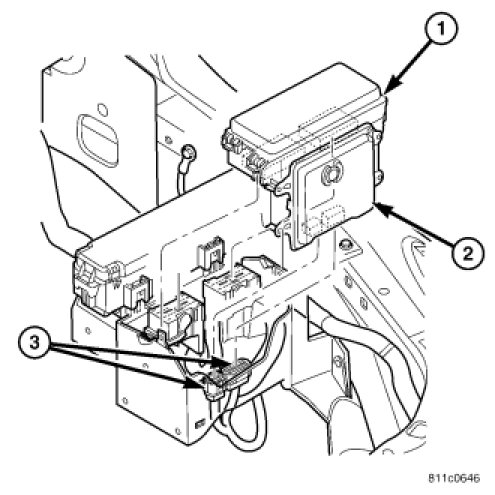

3. Remove the IPM from the retaining bracket (1).

4. Disconnect the connectors from the (IPM).

5. Remove the Front Control Module (FCM) (2) retaining screws.

6. Disconnect the front control module by pulling it straight off the integrated power module.
