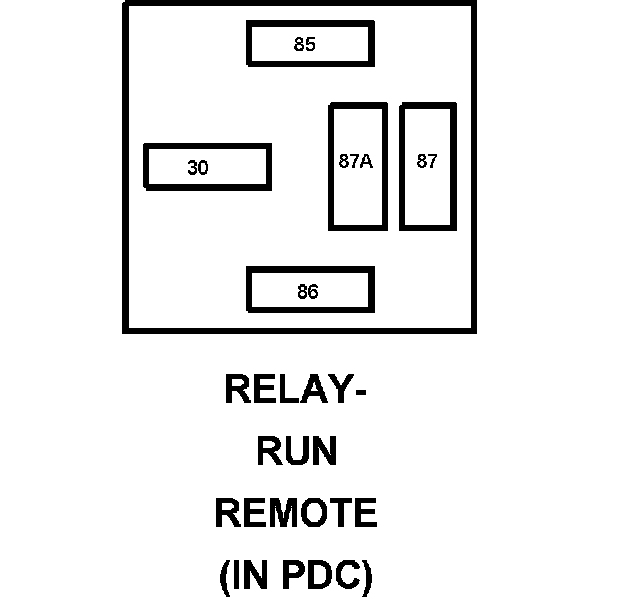

Relay-Run Remote

Component ID: 224
Component : RELAY-RUN REMOTE

Connector:
Name : RELAY-RUN REMOTE
Color :
# of pins : 0
Qualifier : (IN PDC)




30 FUSED B(+) A917 14RD/BR
85 FRONT BLOWER CONTROL C229 20DB
86 FUSED B(+) A917 14RD/BR
87 IGNITION SWITCH OUTPUT (RUN) F921 14PK/YL
87A - -
