Removal

REMOVAL





NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected.

1. Disconnect and isolate the battery negative cable.

2. Remove mounting fasteners.

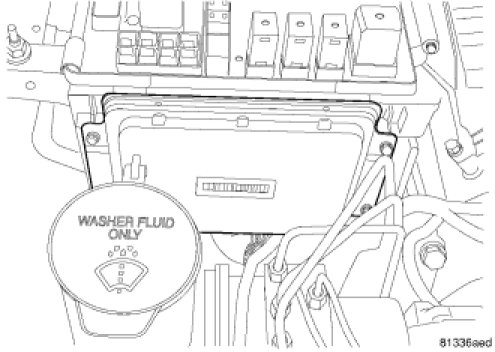

3. Disconnect electrical connectors and remove Front Control Module (FCM).
