Removal

REMOVAL





1. Disconnect negative battery cable.

2. Remove air dam panels.

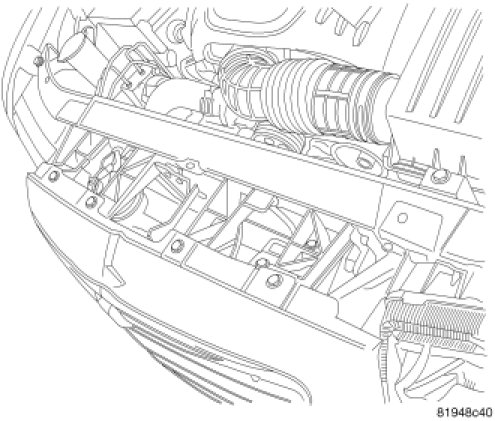

3. Air dam panels removed.





4. Remove 3 mounting bolts.

5. Remove module/sensor assembly.





6. Remove wiring harness clips from bracket and radiator side shield.





7. Disconnect electrical connector.

8. Remove assembly.
