Service Specifications

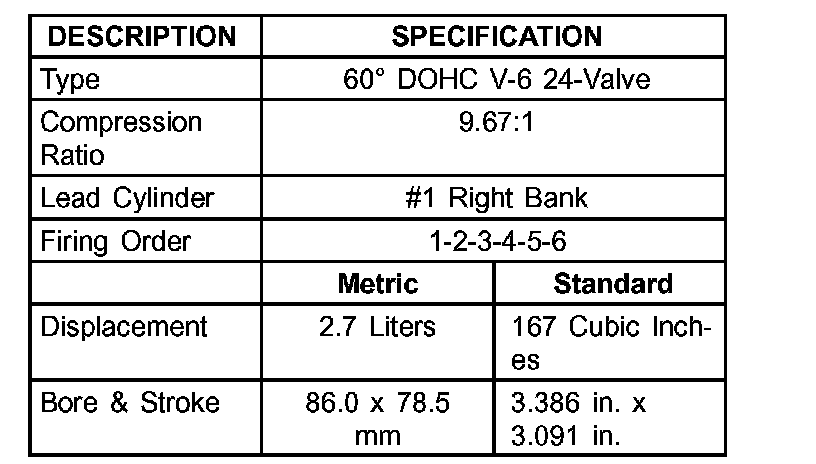

GENERAL SPECIFICATIONS:

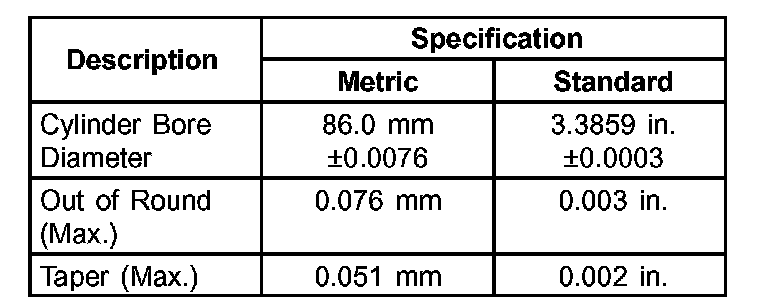

CYLINDER BLOCK:

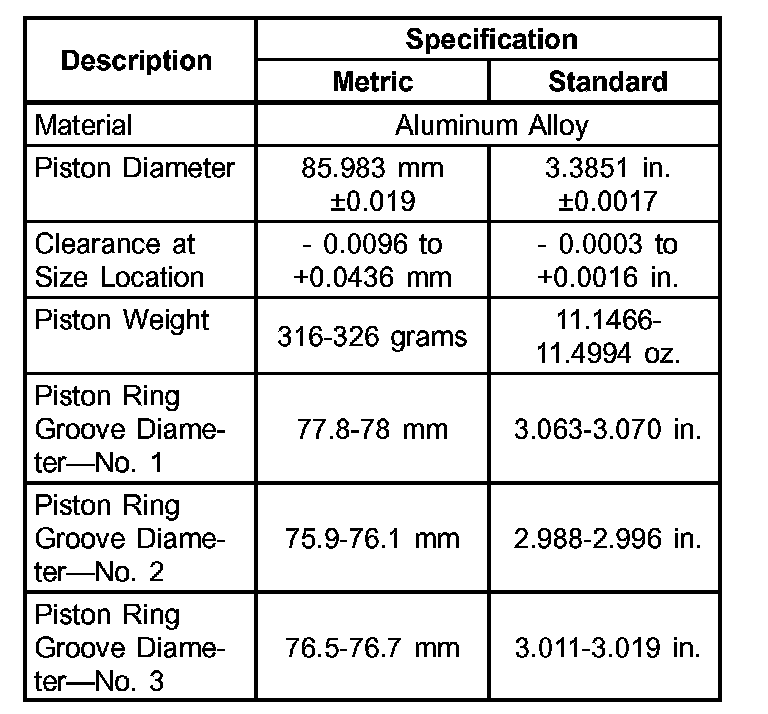

PISTONS:

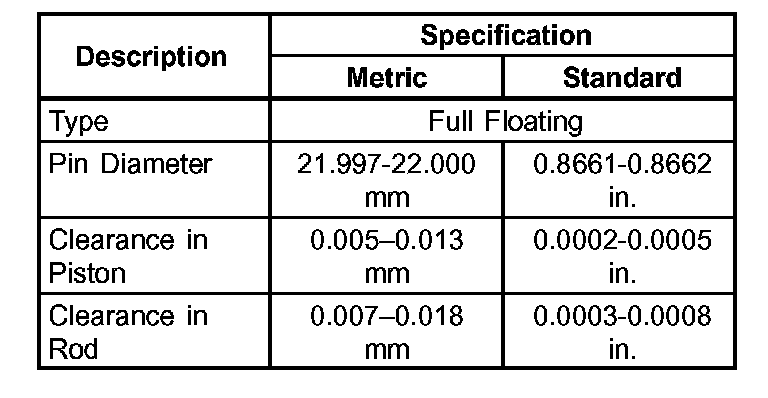

PISTON PINS:

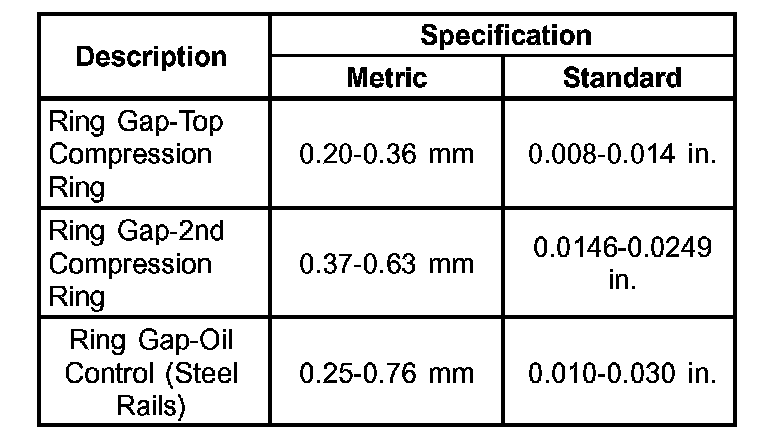

PISTON RINGS:

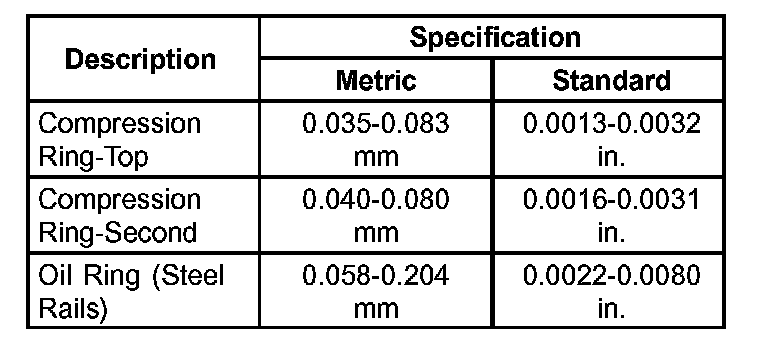

PISTON RING SIDE CLEARANCE:

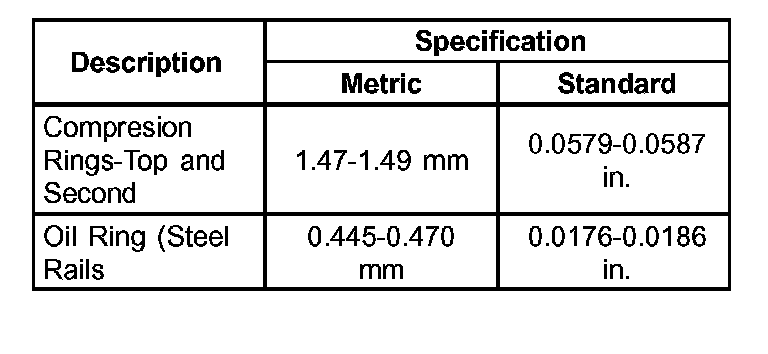

PISTON RING WIDTH:

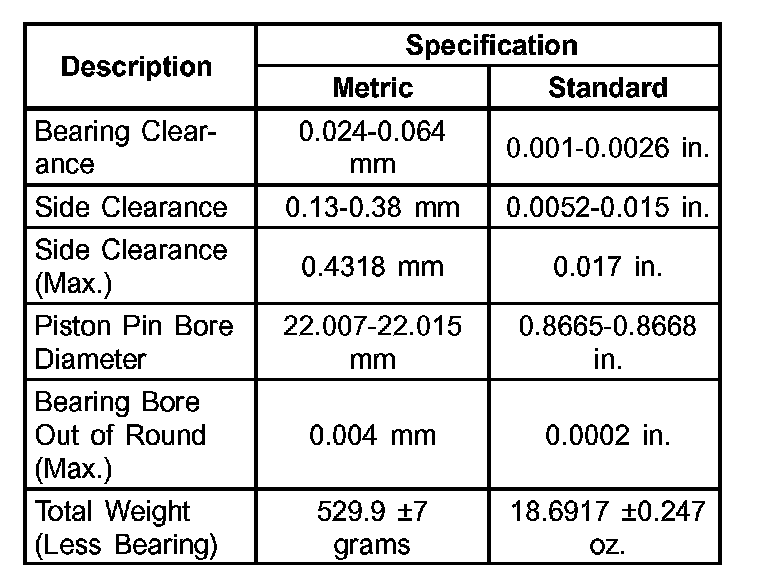

CONNECTING RODS:

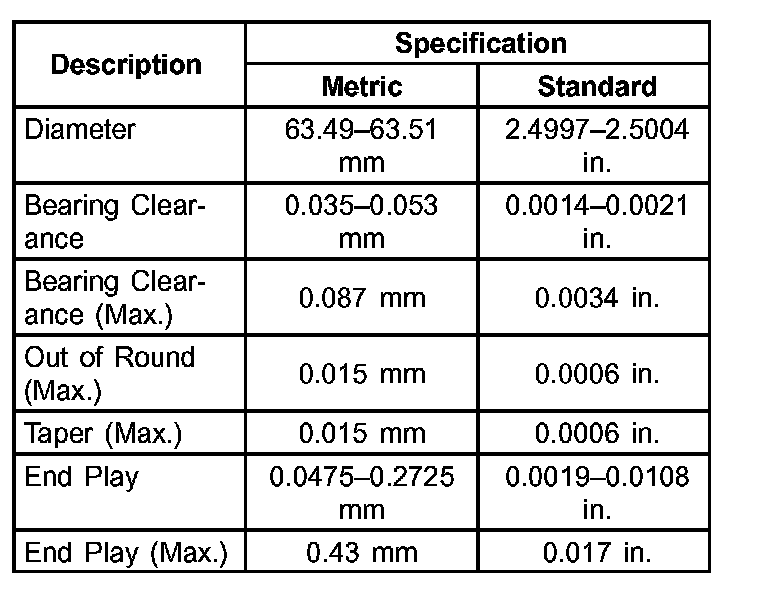

CRANKSHAFT MAIN BEARING JOURNALS:

CONNECTING ROD JOURNALS:

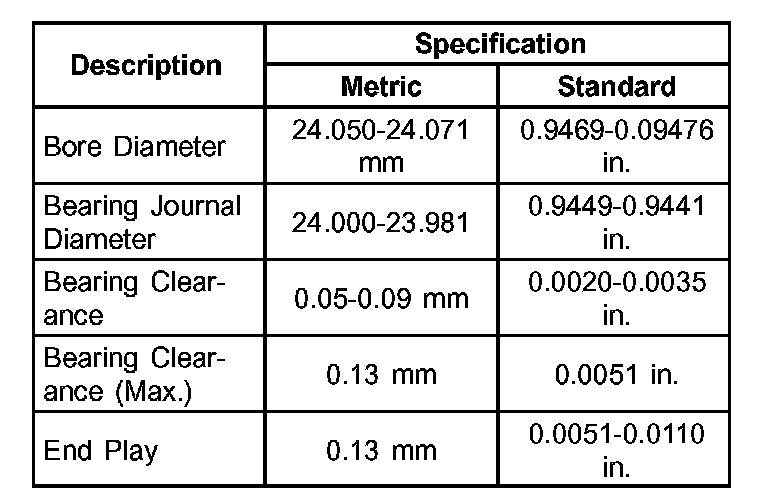

CAMSHAFT:

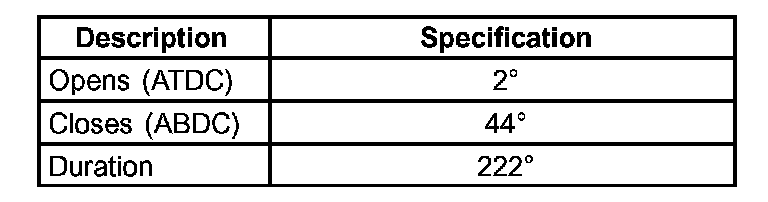

VALVE TIMING-INTAKE VALVES:

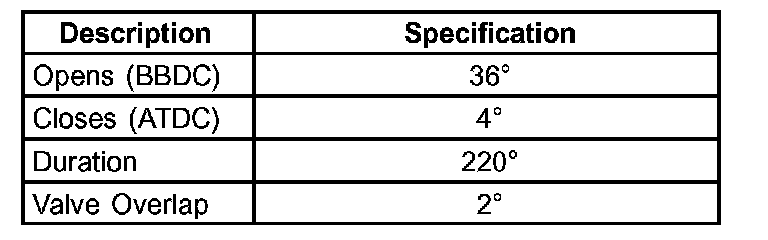

VALVE TIMING-EXHAUST VALVES:

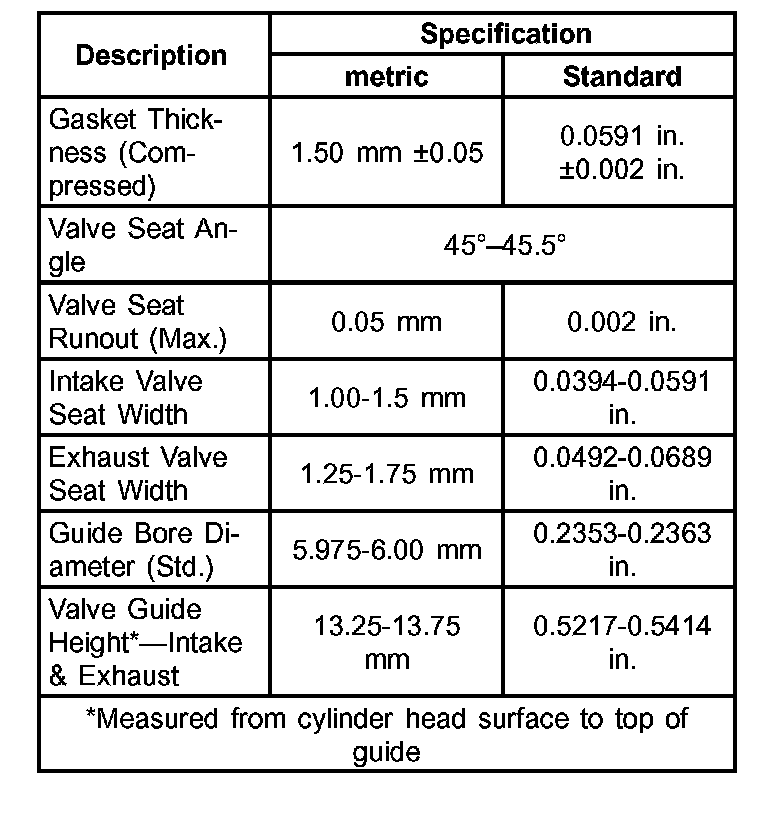

CYLINDER HEAD:

VALVES:

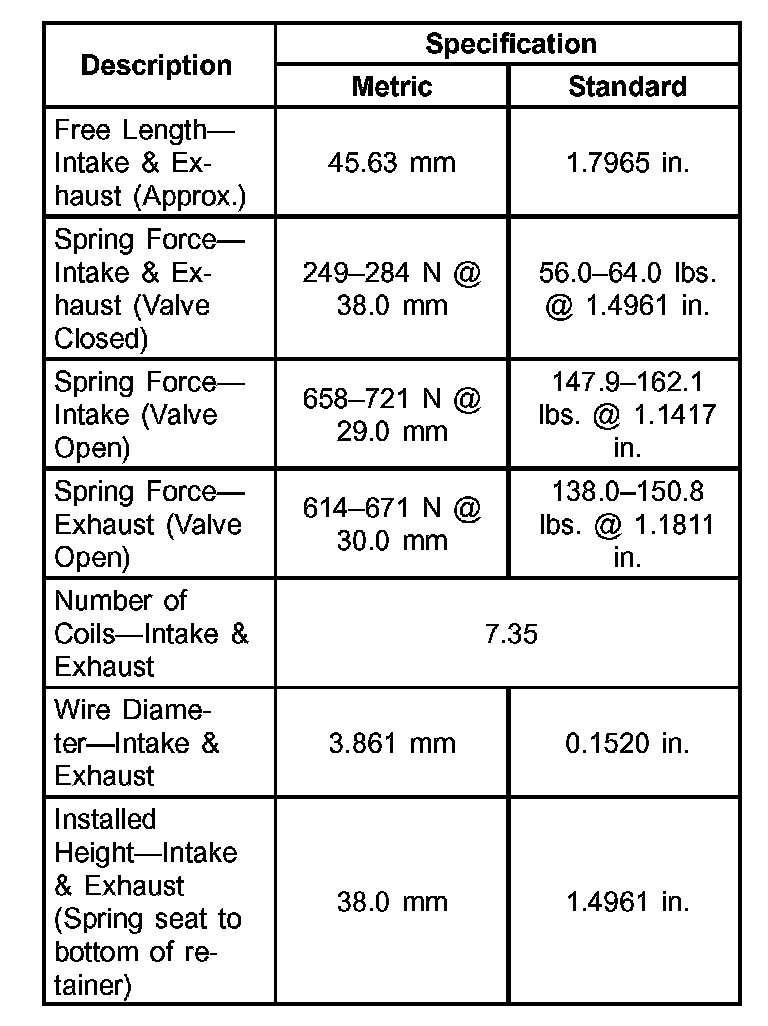

VALVE SPRING:

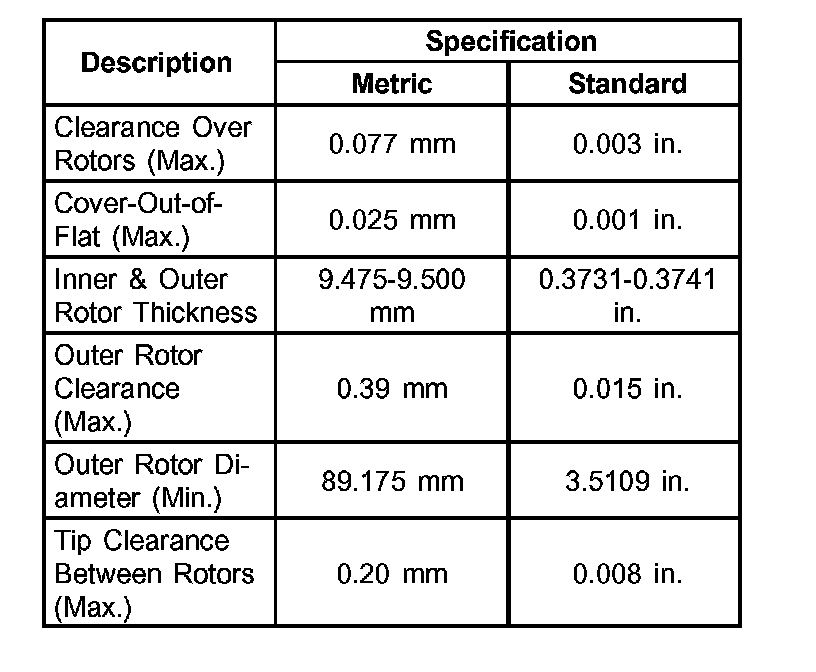

OIL PUMP:

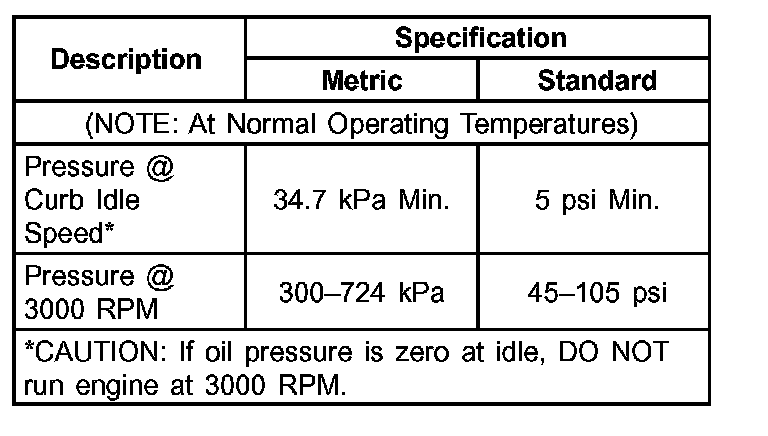

OIL PRESSURE:
