System Specifications

CYLINDER BLOCK:

PISTONS:

PISTON RINGS:

PISTON RING SIDE CLEARANCE:

PISTON RING WIDTH:

CONNECTING RODS:

CRANKSHAFT MAIN BEARING JOURNALS:

CONNECTING ROD JOURNALS:

Main Bearing Cap Tie Bolts 28 Nm (250 inch lbs.)
Main Bearing Cap Outer Cap Bolts 27 Nm (20 ft. lbs.) +1/4 Turn
Main Bearing Cap - Inner Cap Bolts 20 Nm (15 ft. lbs.) +1/4 Turn

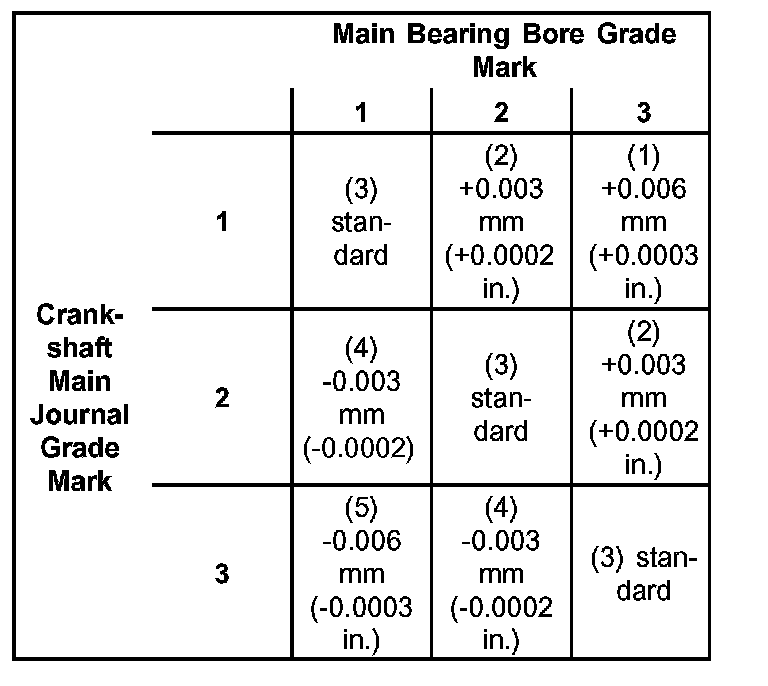

MAIN BEARING SELECTION CHART-2.7L:

Crankshaft Damper Bolt 170 Nm (125 ft. lbs.)
