Home >> Chrysler >> 2006 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Locations

Control Module HVAC: Locations

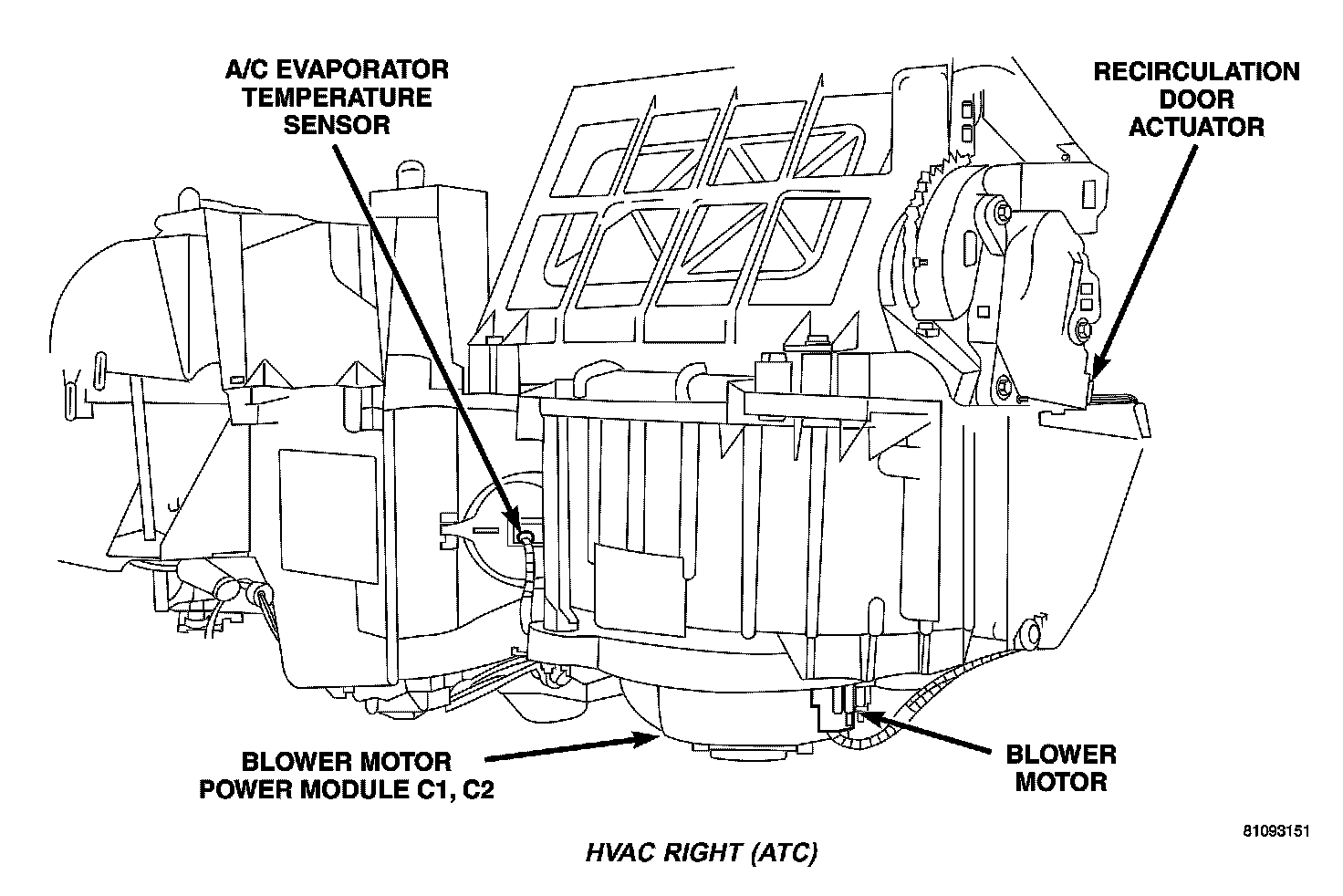

HVAC Right (ATC):

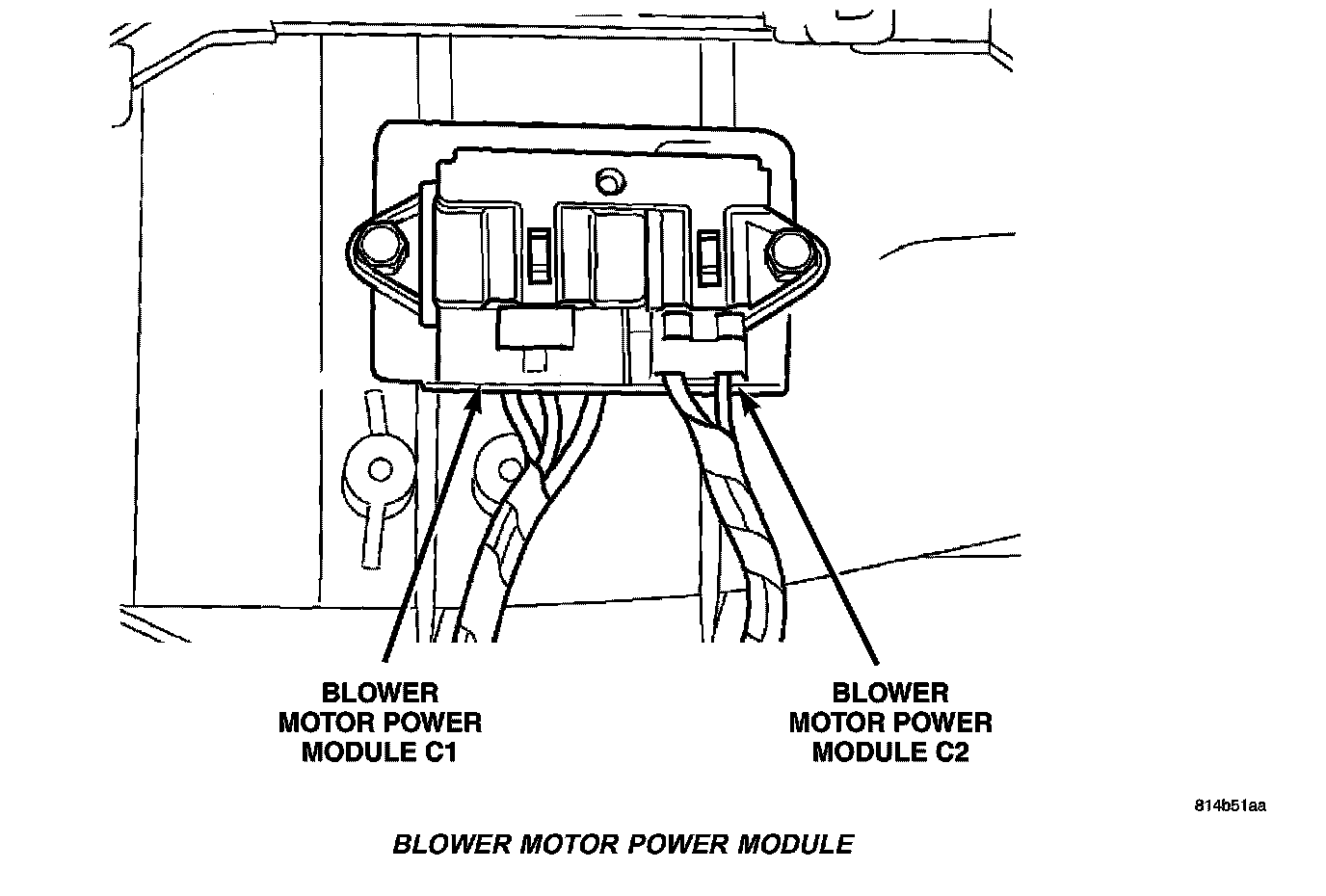

Blower Motor Power Module:
