Control Module HVAC
Control Module HVAC

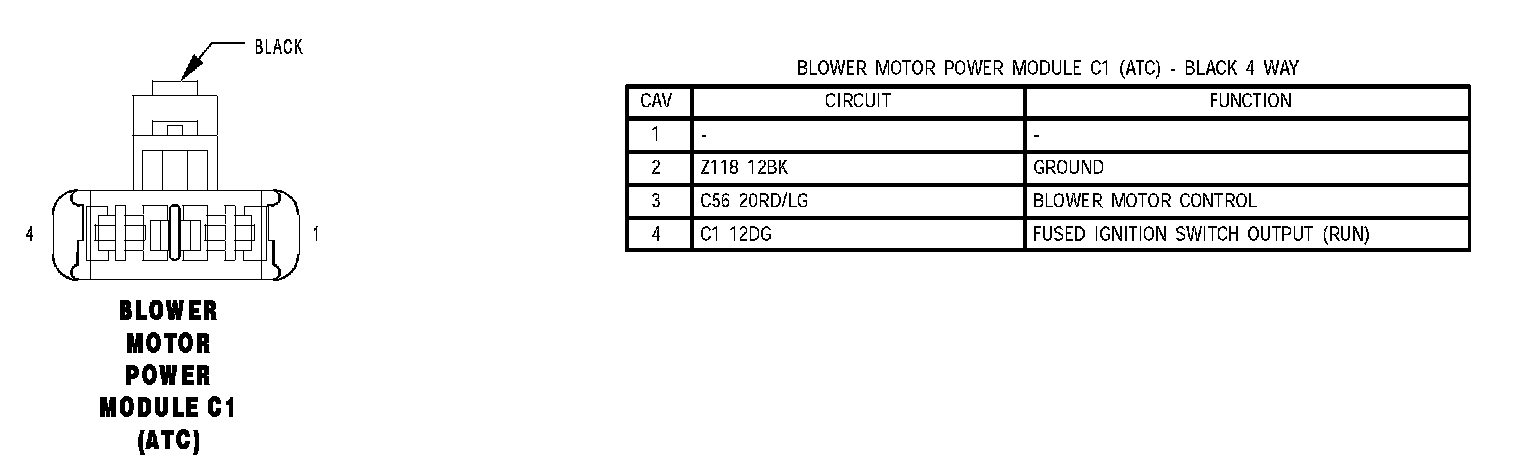

Blower Motor Power Module C1 (ATC):

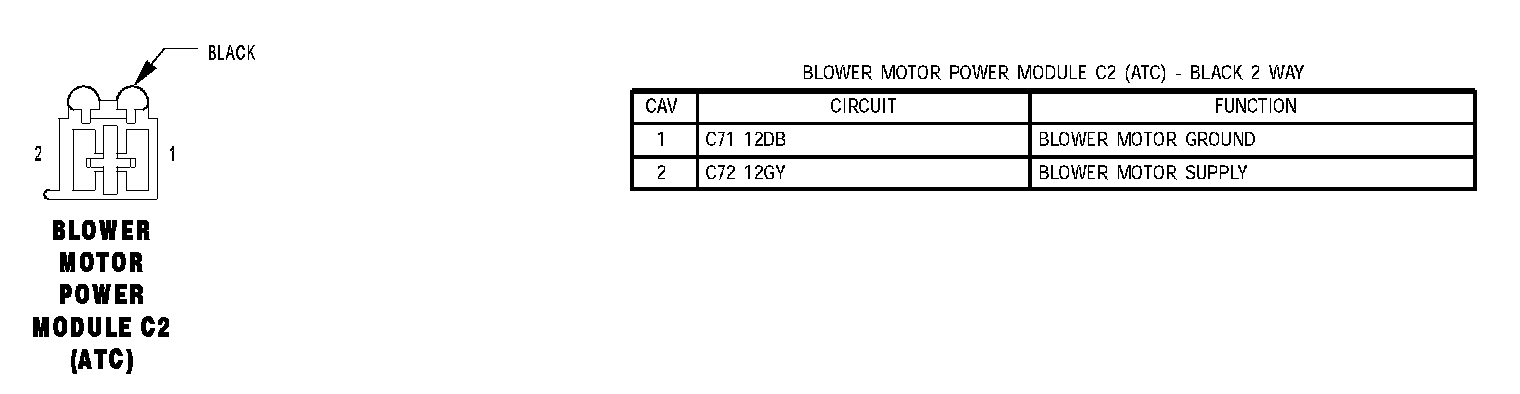

Blower Motor Power Module C2 (ATC):
