System Specifications

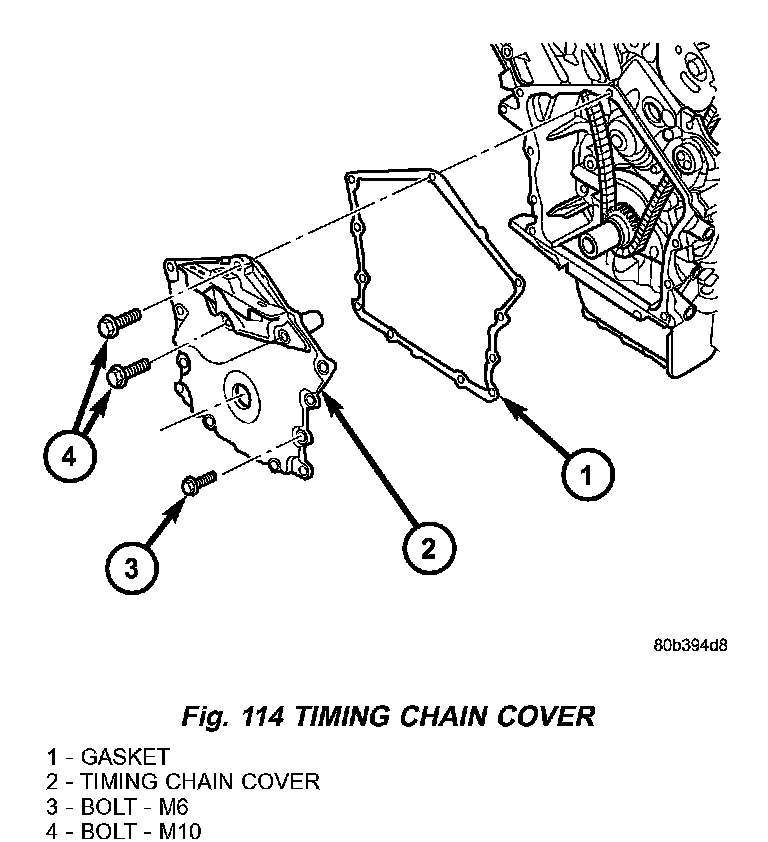

Timing Chain Cover
- M6 Bolts 12 Nm (105 inch lbs.)
- M10 Bolts 54 Nm (40 ft. lbs.)
Timing Chain Tensioner (Primary) 12 Nm (105 inch lbs.)
Timing Chain Guide Access Plug 20 Nm (15 ft. lbs.)
Crankshaft Damper - Bolt 170 Nm (125 ft. lbs.)
