Intake Manifold





Intake Manifold-Bolts
Gradually tighten fasteners to 28 Nm (250 inch lbs.)

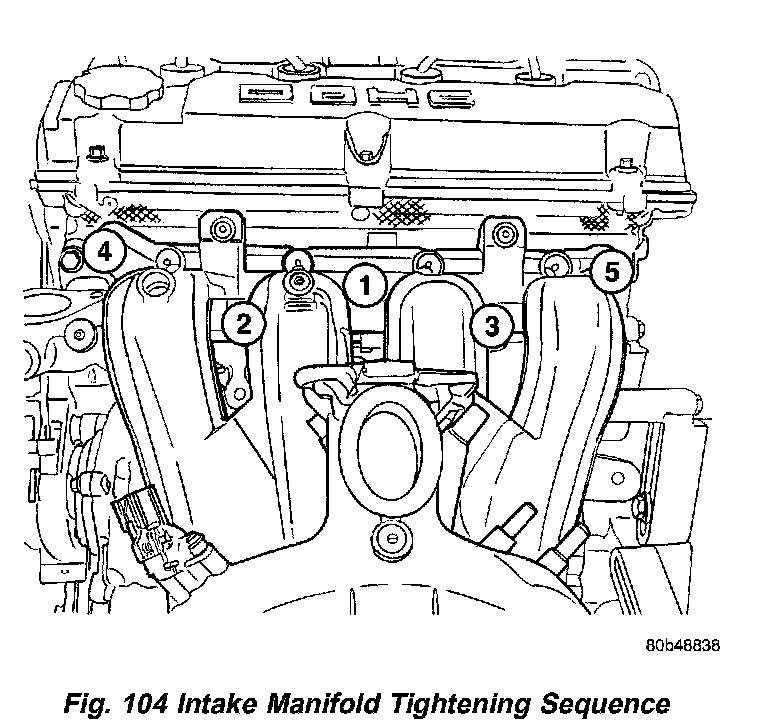

in sequence shown in (Fig. 104).
