Home >> Chrysler >> 2005 >> Pacifica V6-3.8L VIN L >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Control Module >> Locations

Wiper Control Module: Locations

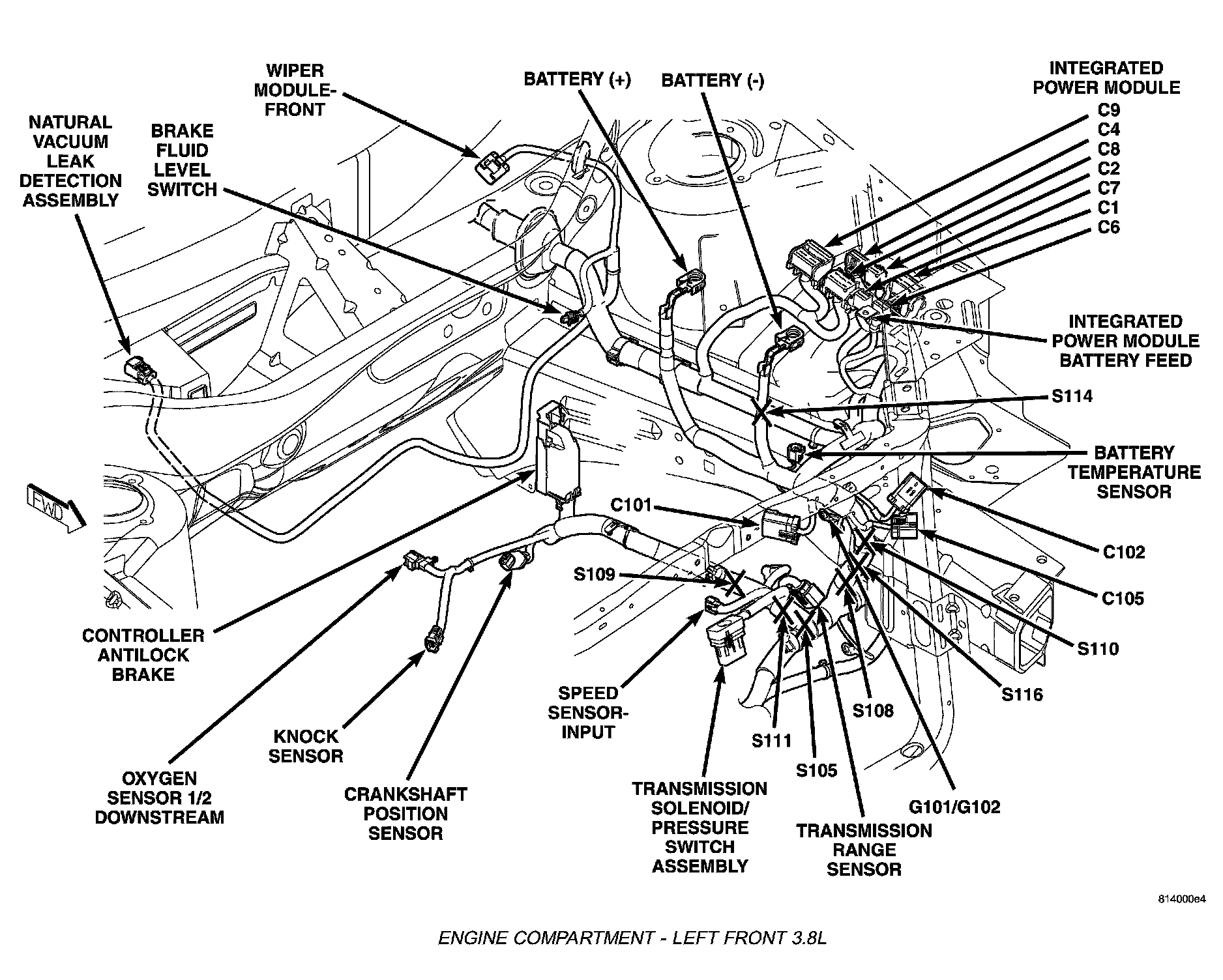

Engine Compartment - Left Front-3.8L:

Engine Compartment - Left Front And Rear:

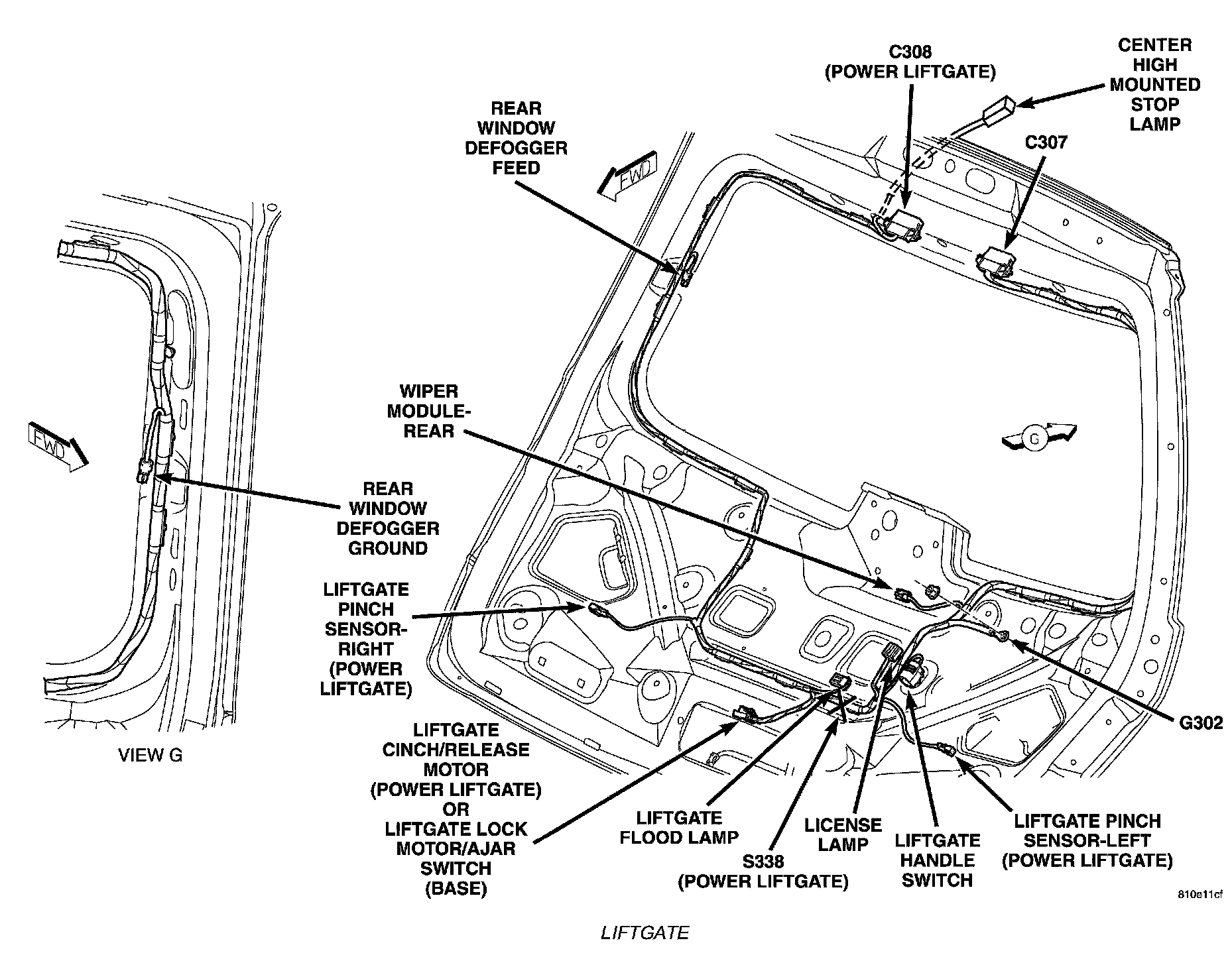

Liftgate:
