Service Specifications

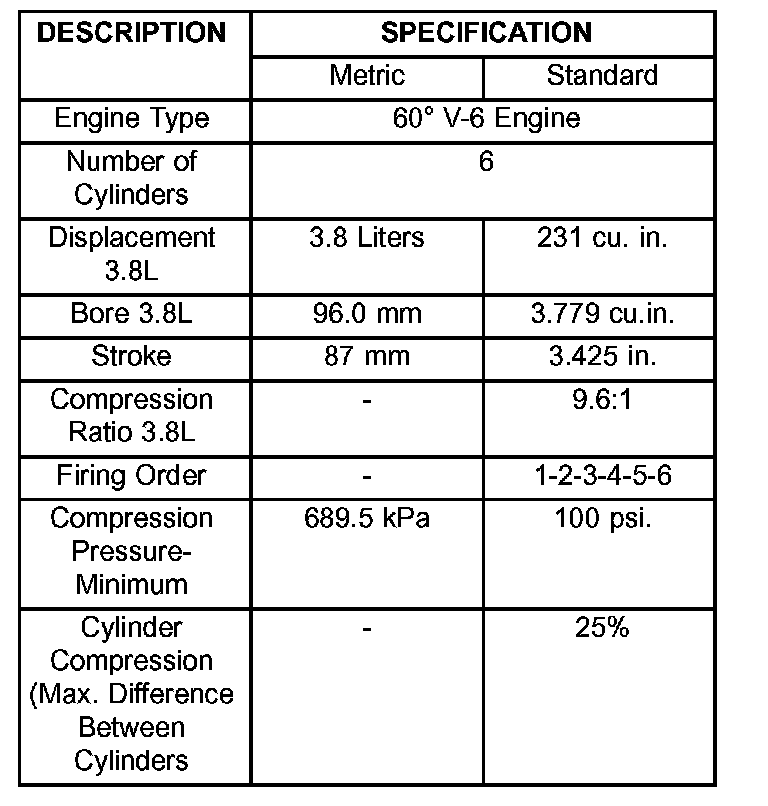

General Description:

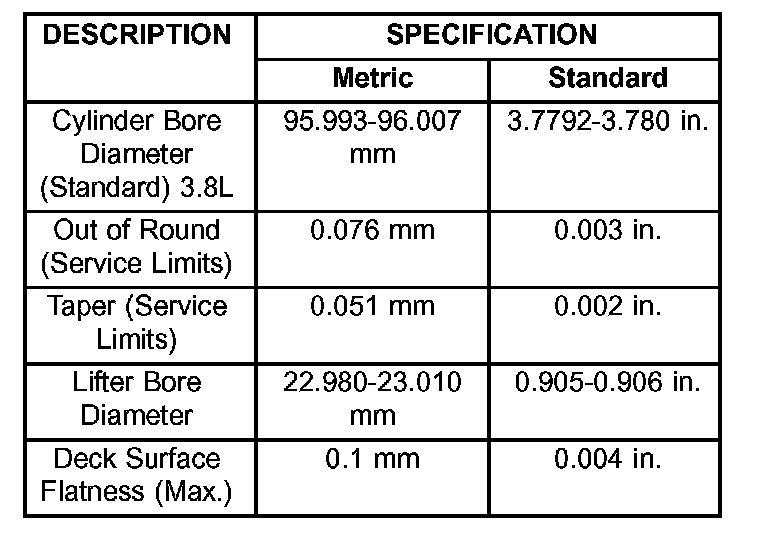

Cylinder Block:

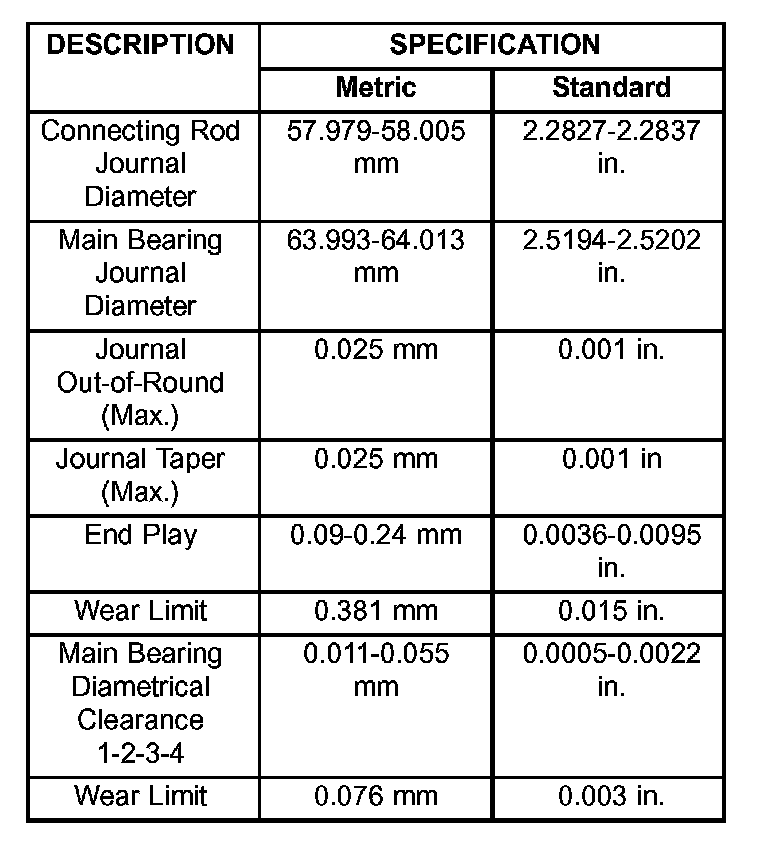

Crankshaft:

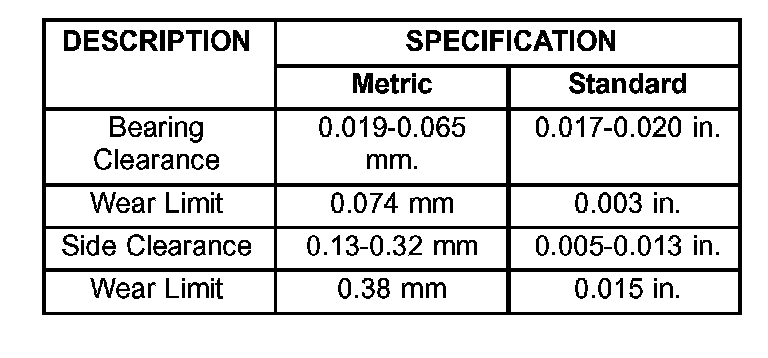

Connecting Rods:

Pistons:

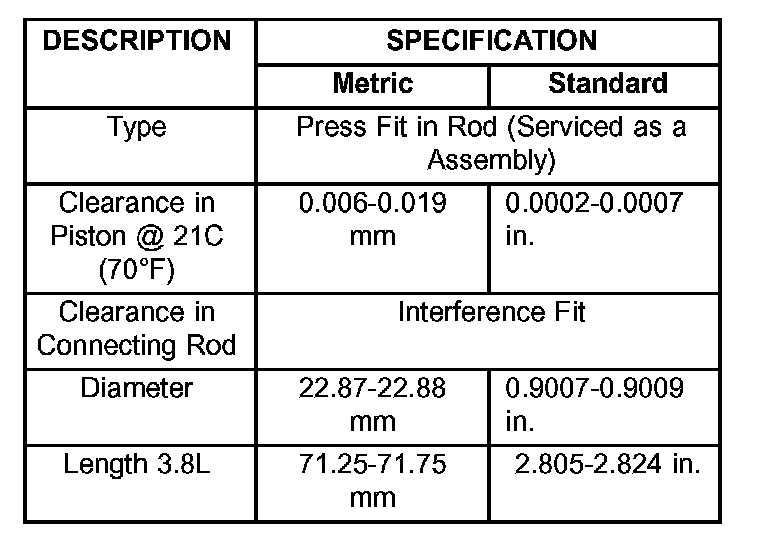

Piston Pins:

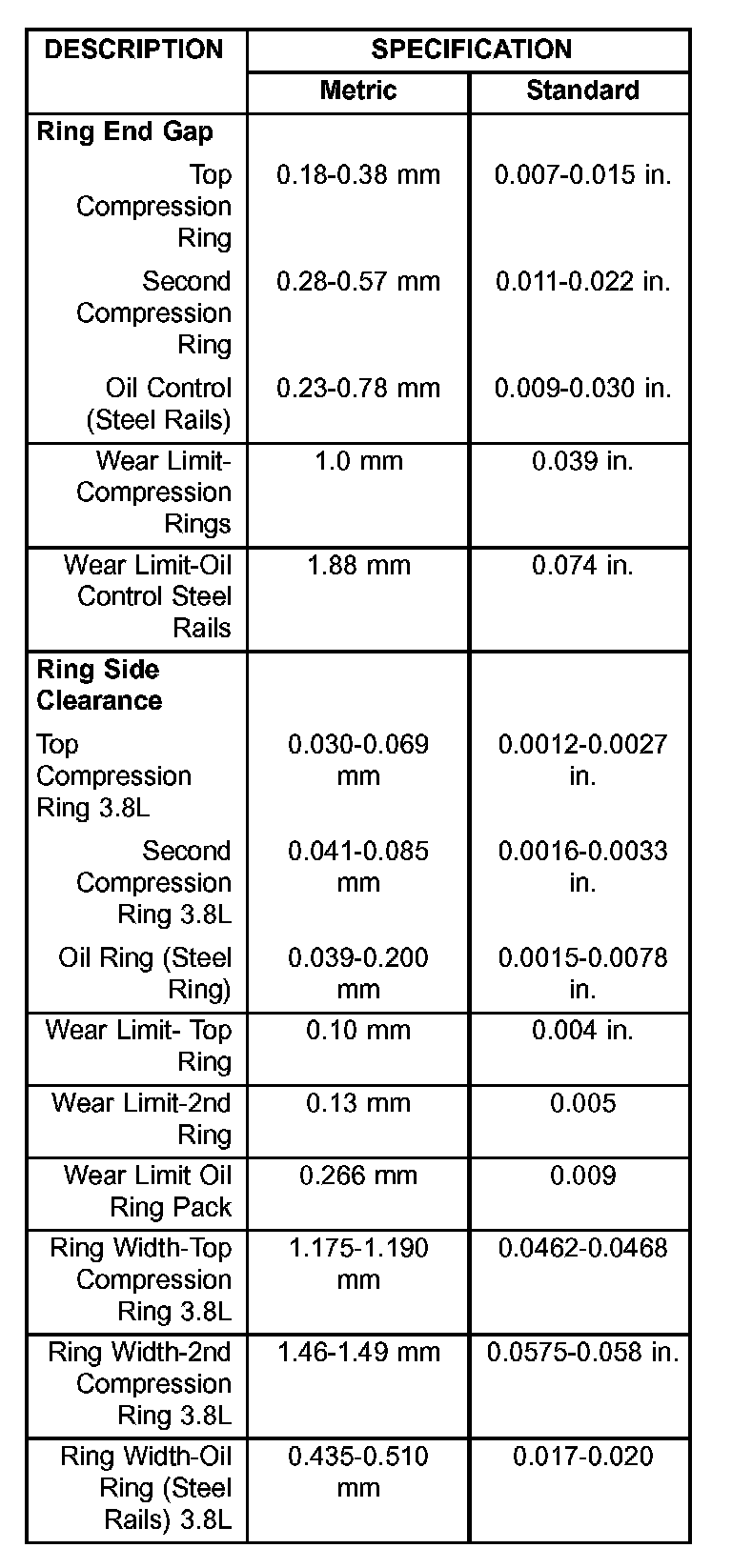

Piston Rings:

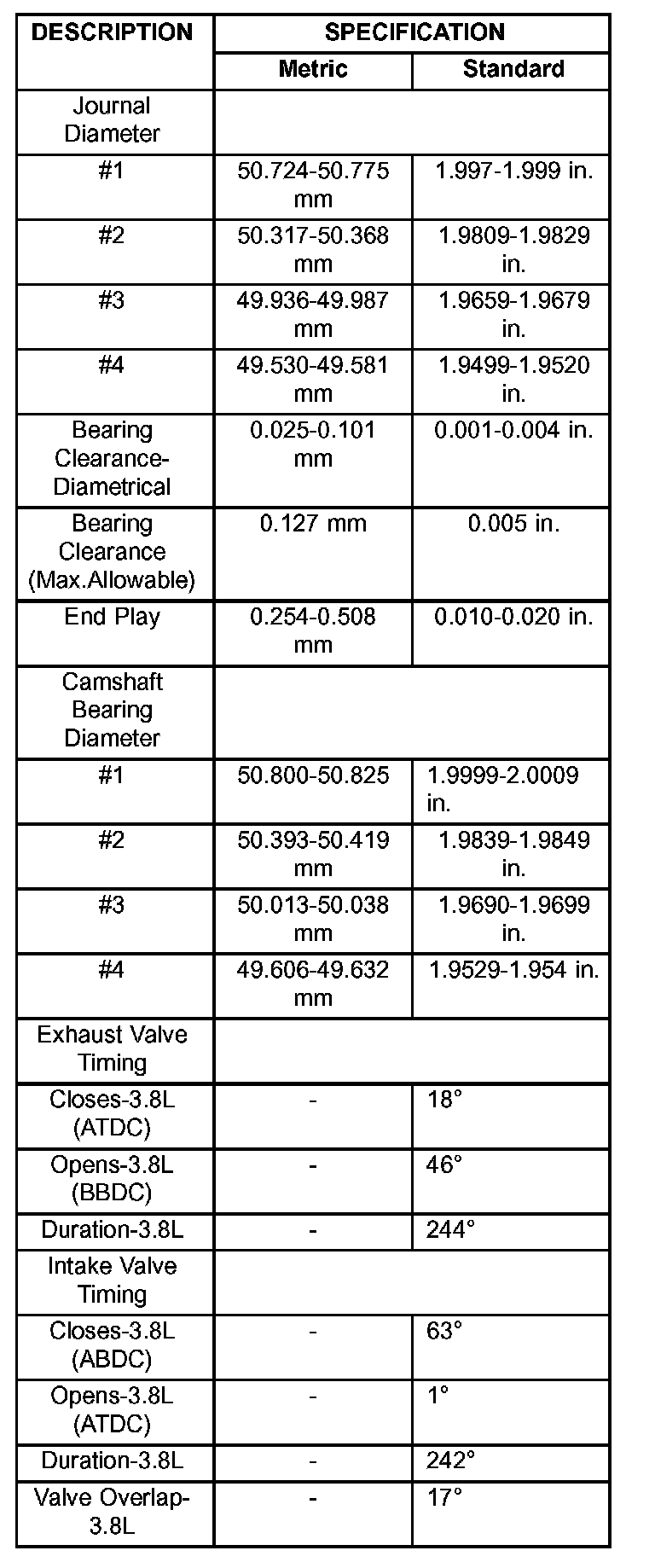

Camshaft:

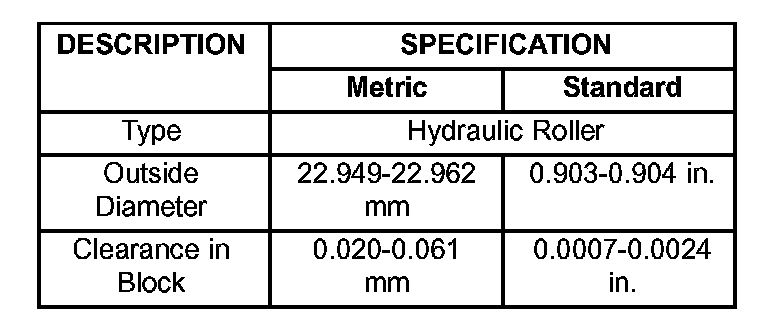

Hydraulic Lifter:

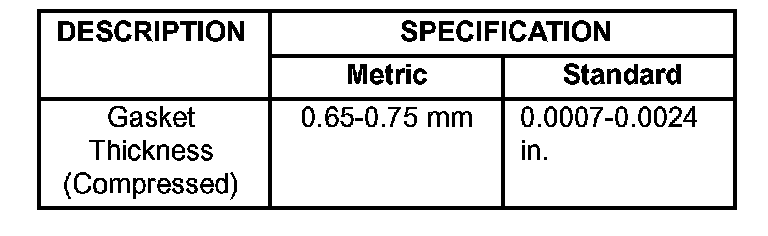

Cylinder Head:

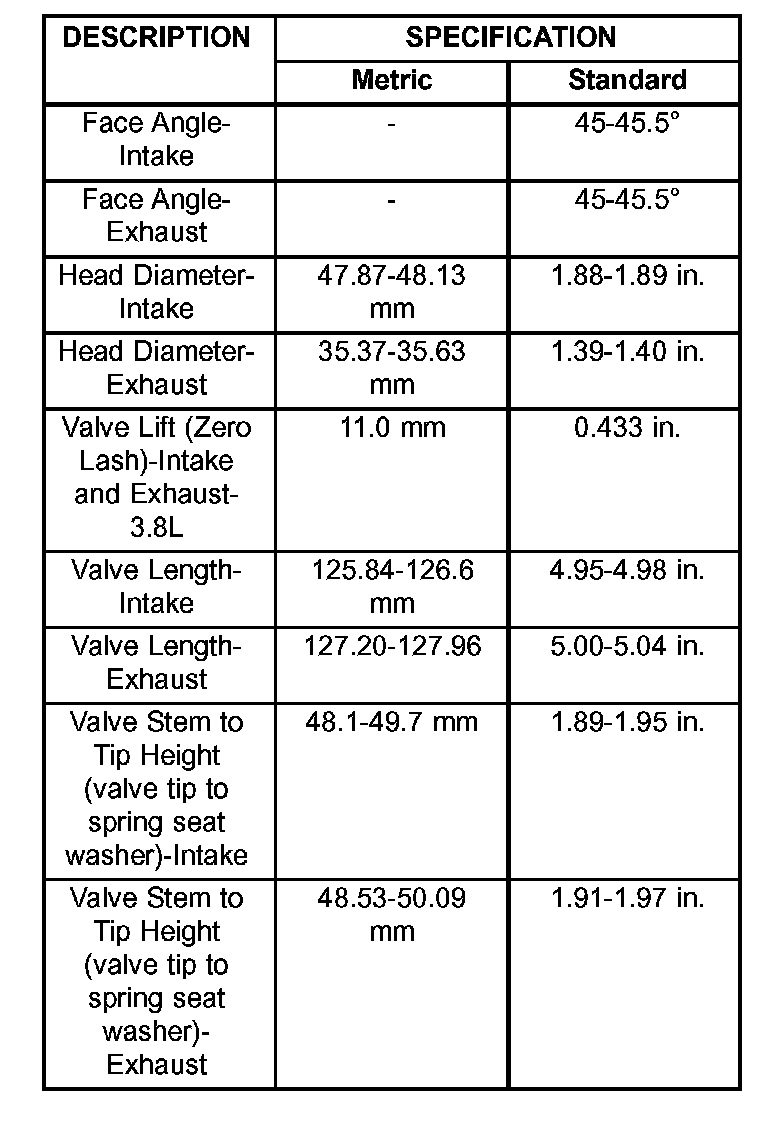

Valves:

Valve Seat:

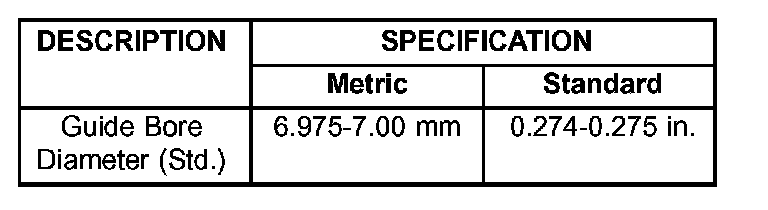

Valve Guide:

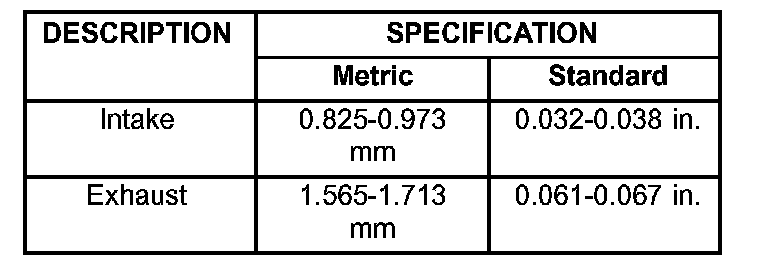

Valve Margin:

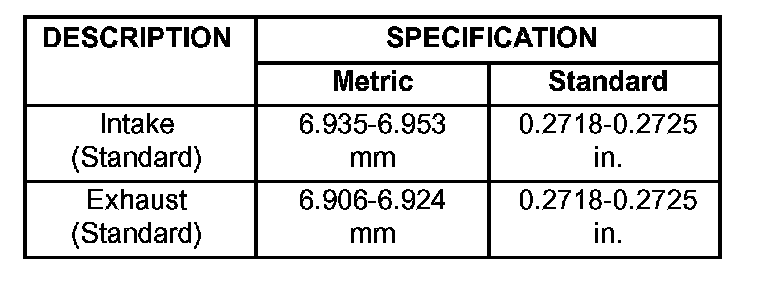

Valve Stem Diameter:

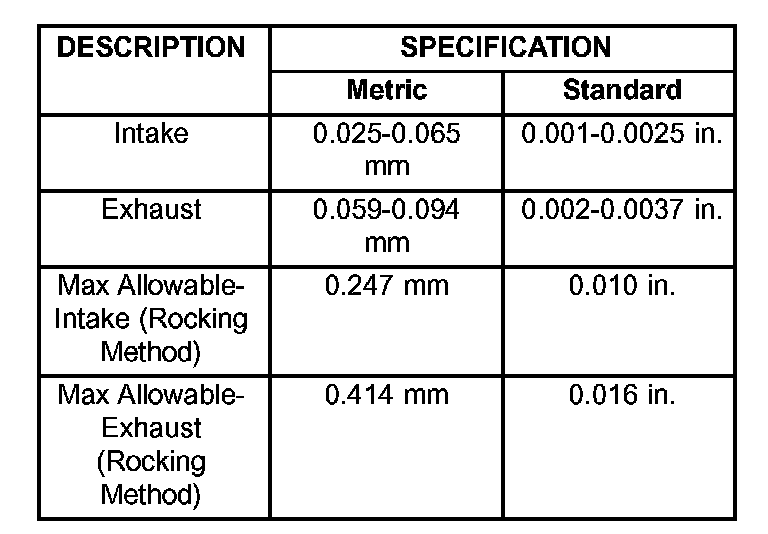

Valve Stem To Guide Clearance:

Push Rods:

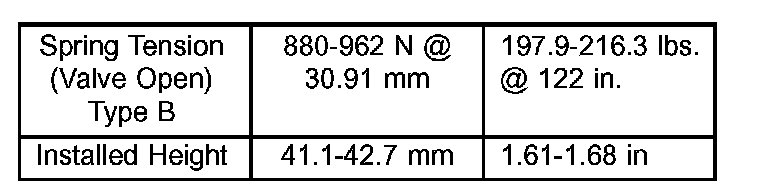

Valve Springs:

Valve Springs:

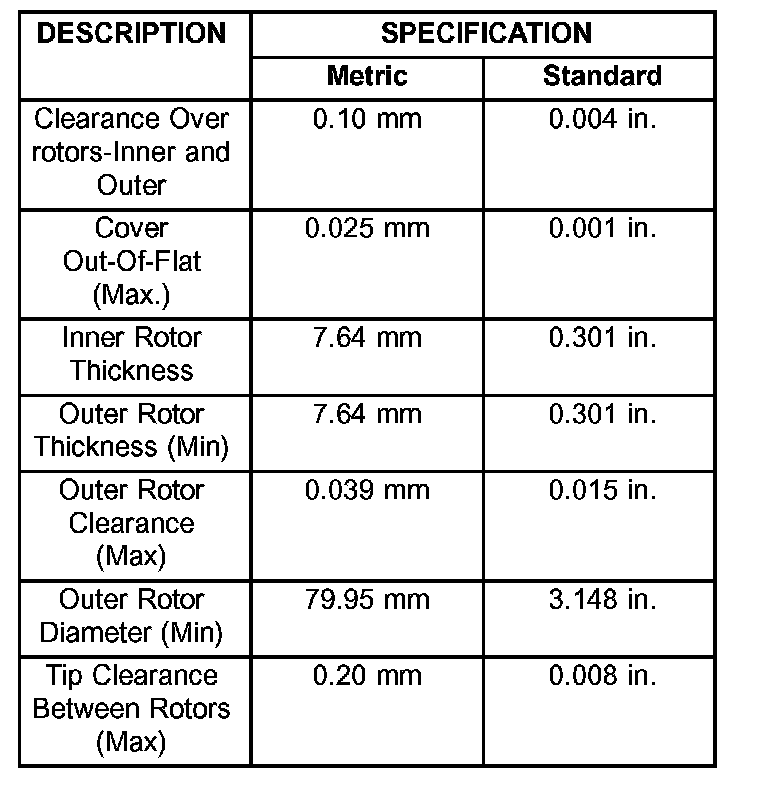

Oil Pump:
