Home >> Chrysler >> 2005 >> Pacifica V6-3.8L VIN L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Control Module

Wiper Control Module

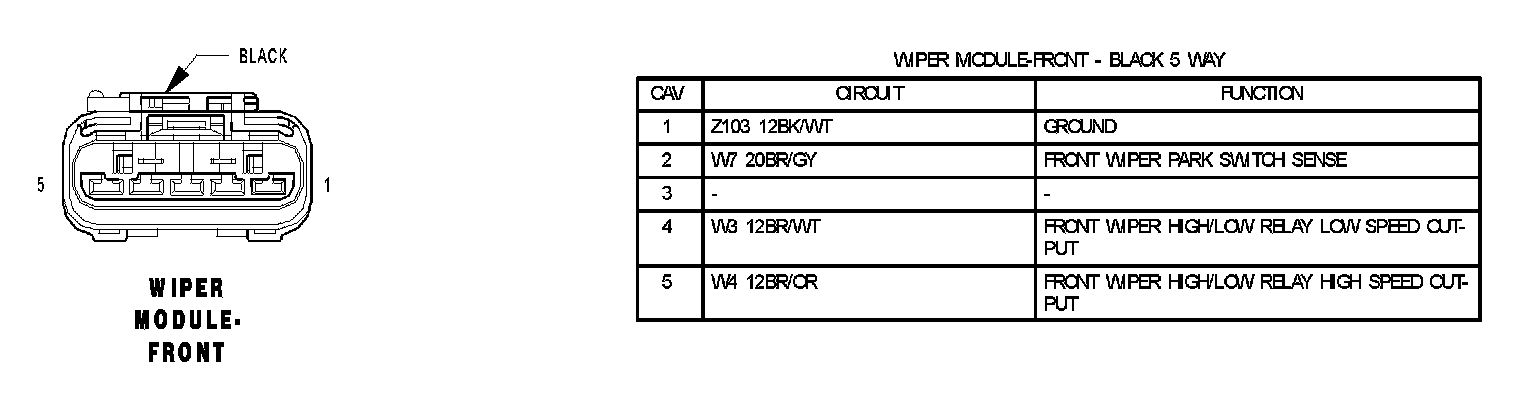

Wiper Module - Front:

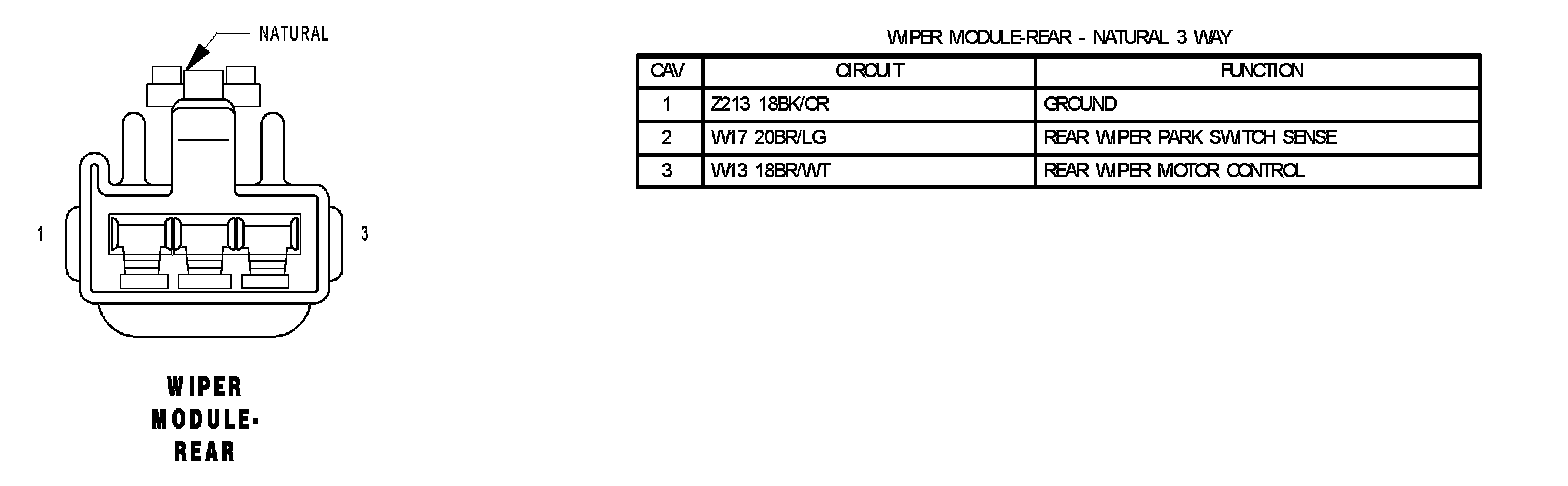

Wiper Module - Rear:
