Home >> Chrysler >> 2005 >> Crossfire V6-3.2L VIN L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Integrated Control Relay Module >> Locations

Integrated Control Relay Module: Locations

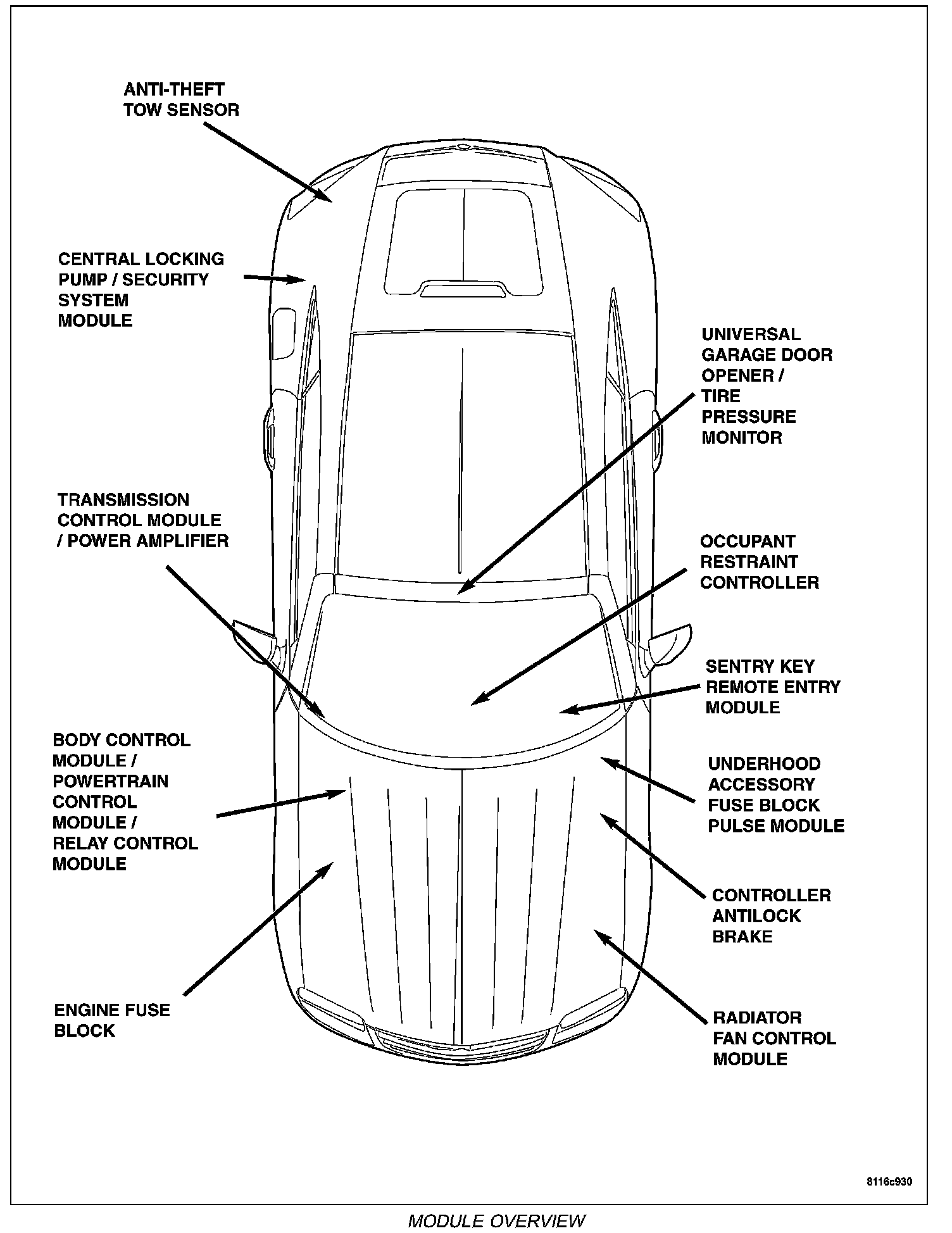

Module Overview:

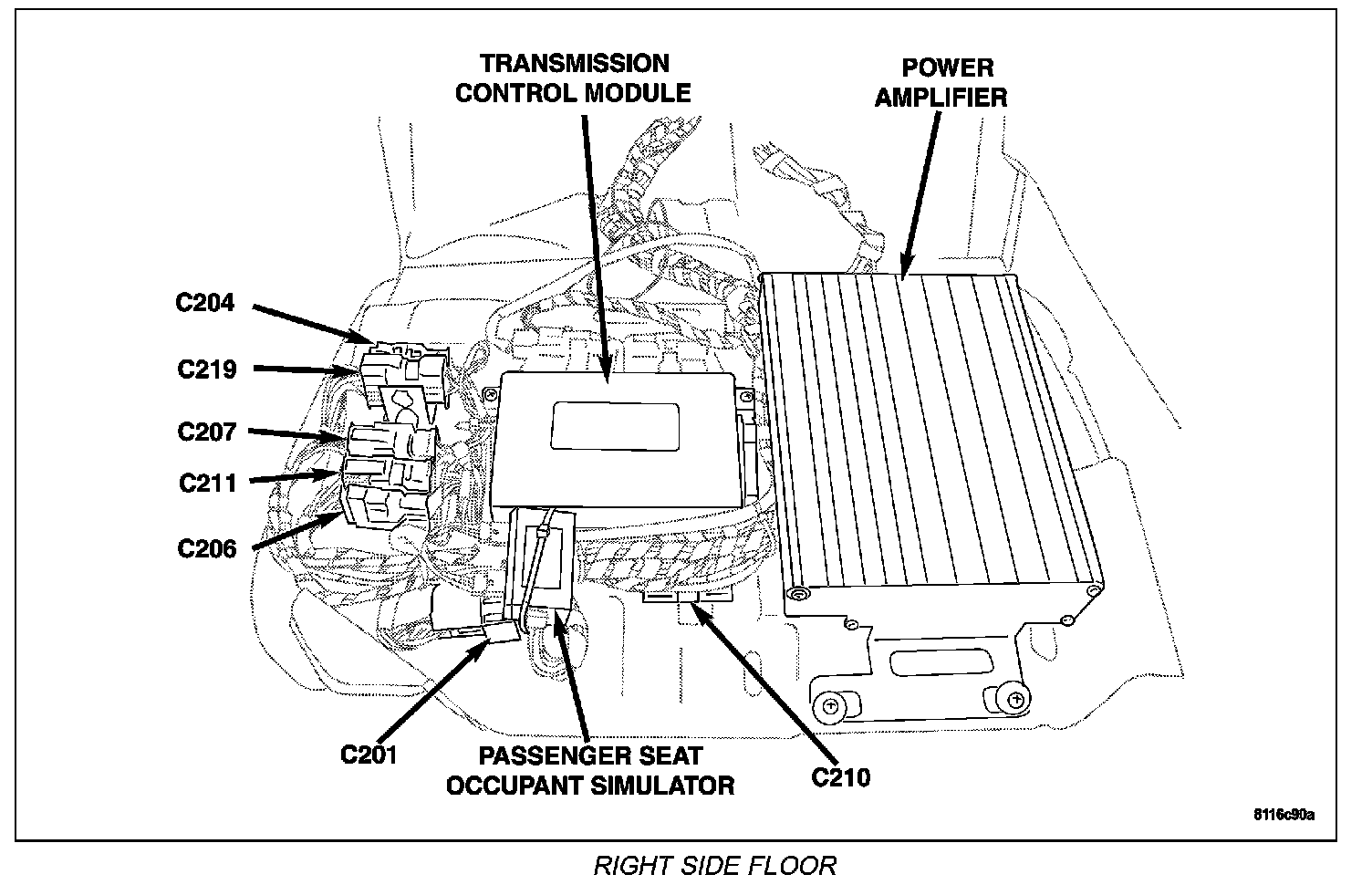

Right Side Floor:
