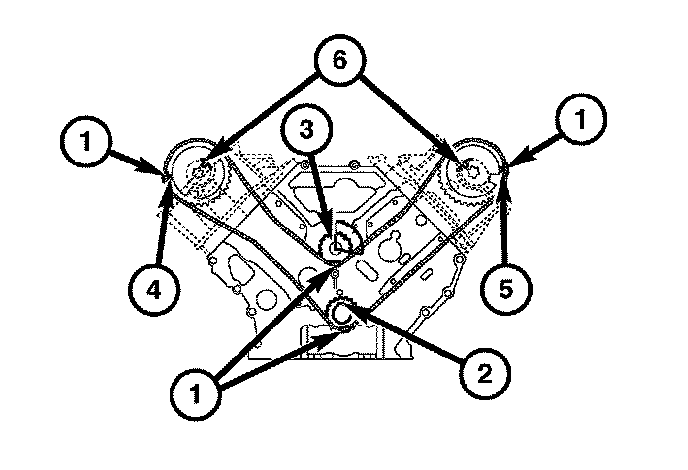

Timing Component Alignment Marks: Locations

Align the balance shaft sprocket with the timing mark (3) and the copper teeth (1) of the timing chain.

Insert the camshaft sprockets (6) into the timing chain and align the camshaft sprocket timing marks (4) and (5) with the copper teeth (1) of the timing chain.
