Power Door Lock Control Module

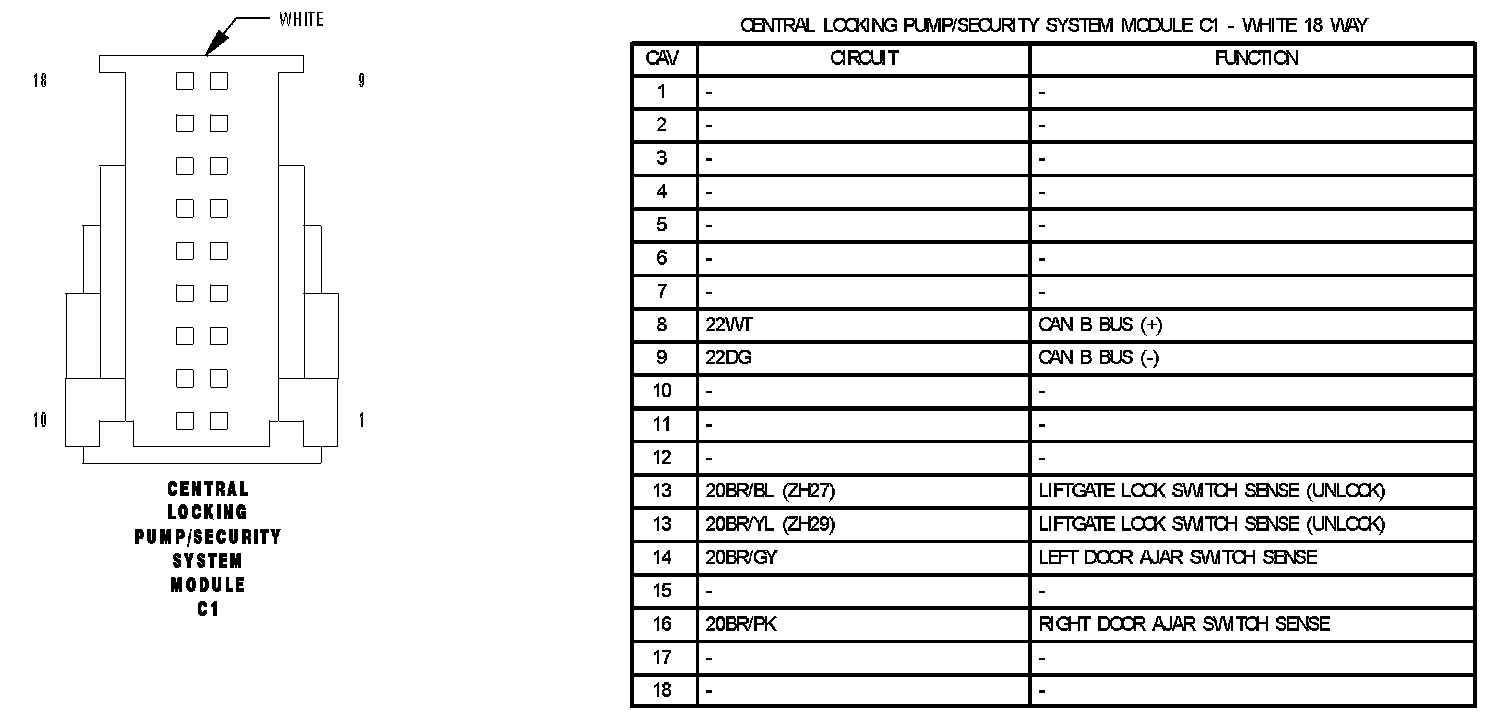

Central Locking Pump/Security System Module C1:

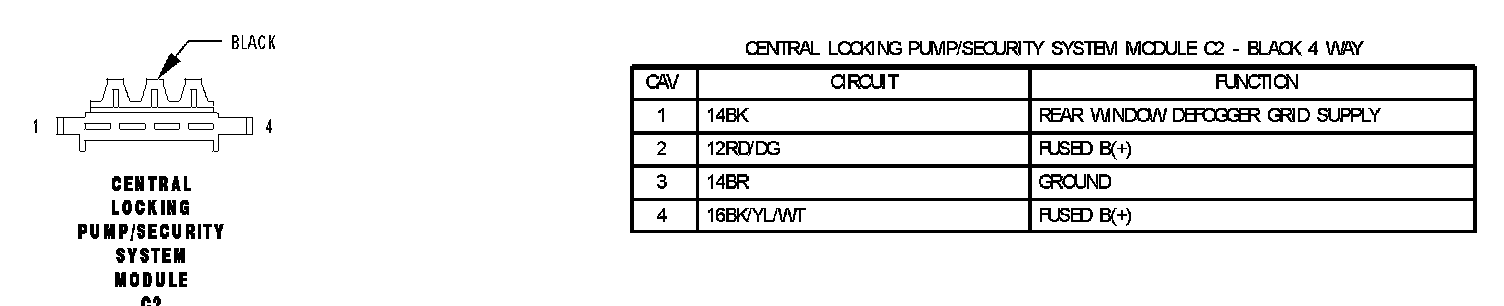

Central Locking Pump/Security System Module C2:

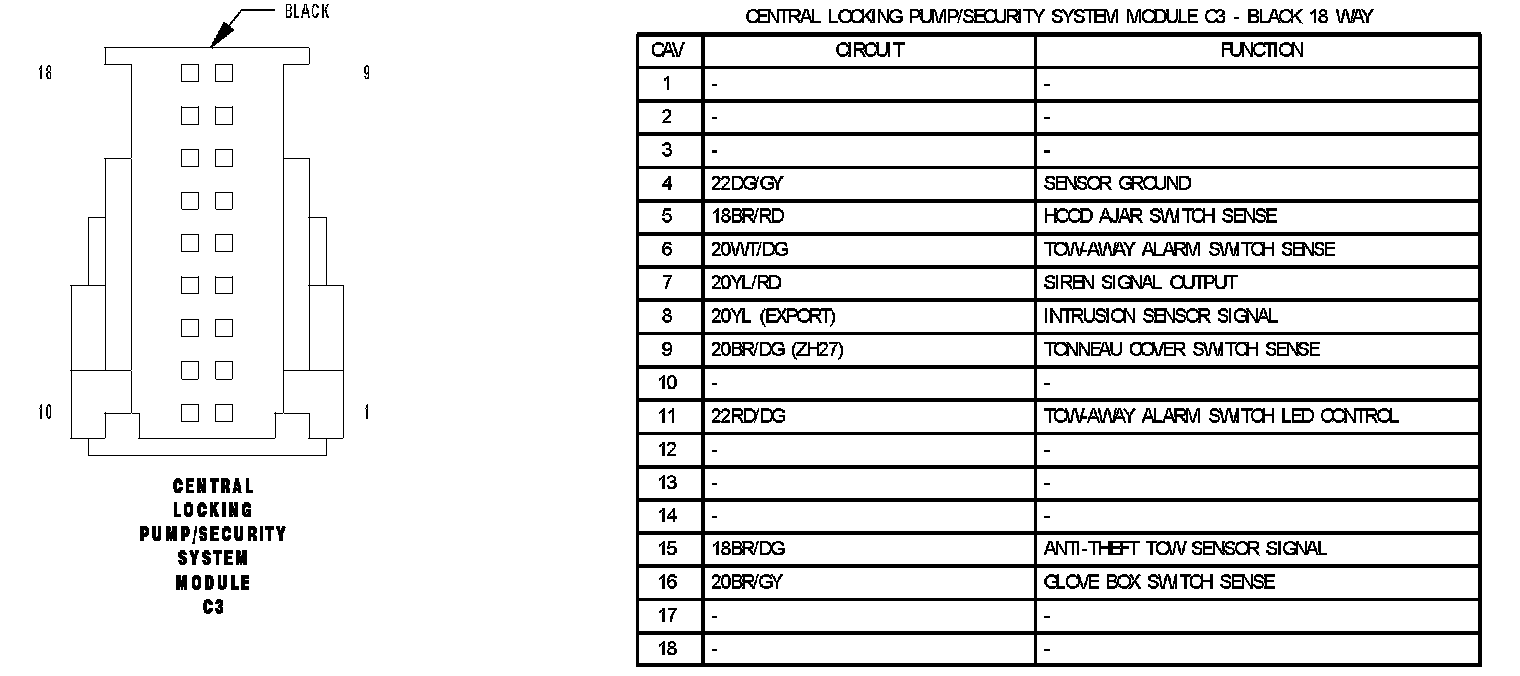

Central Locking Pump/Security System Module C3:

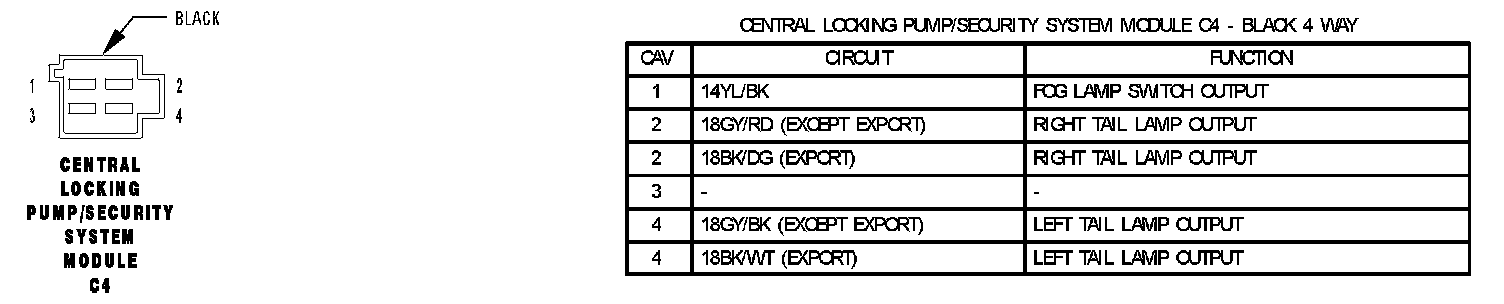

Central Locking Pump/Security System Module C4:
