Engine Control Module

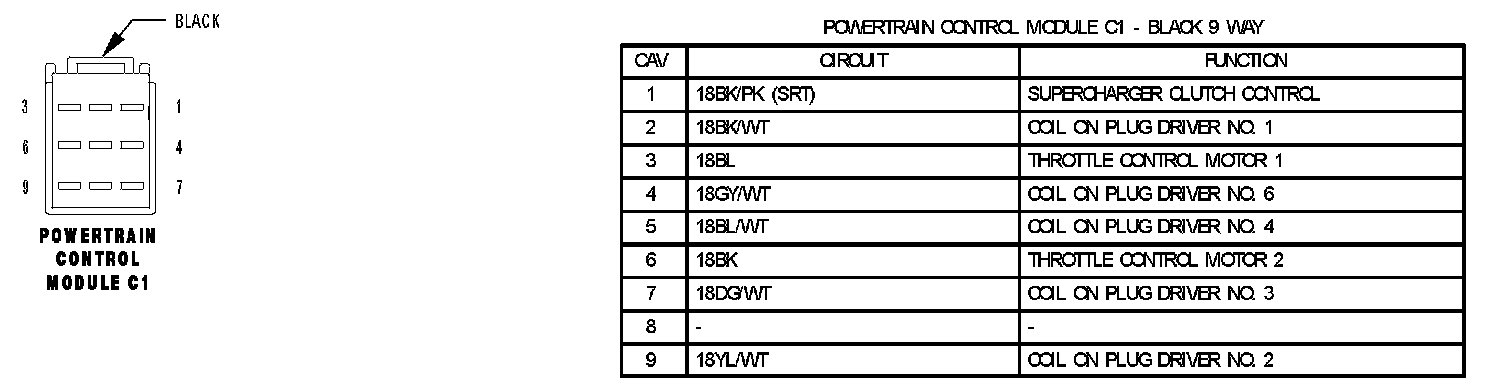

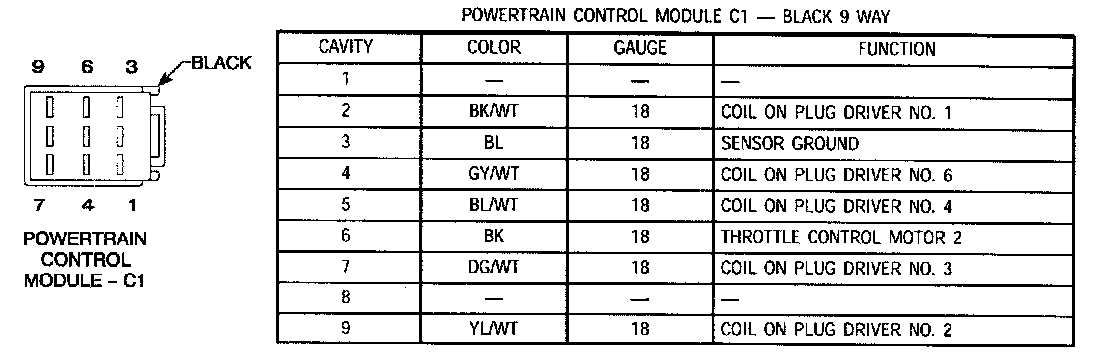

Powertrain Control Module C1:

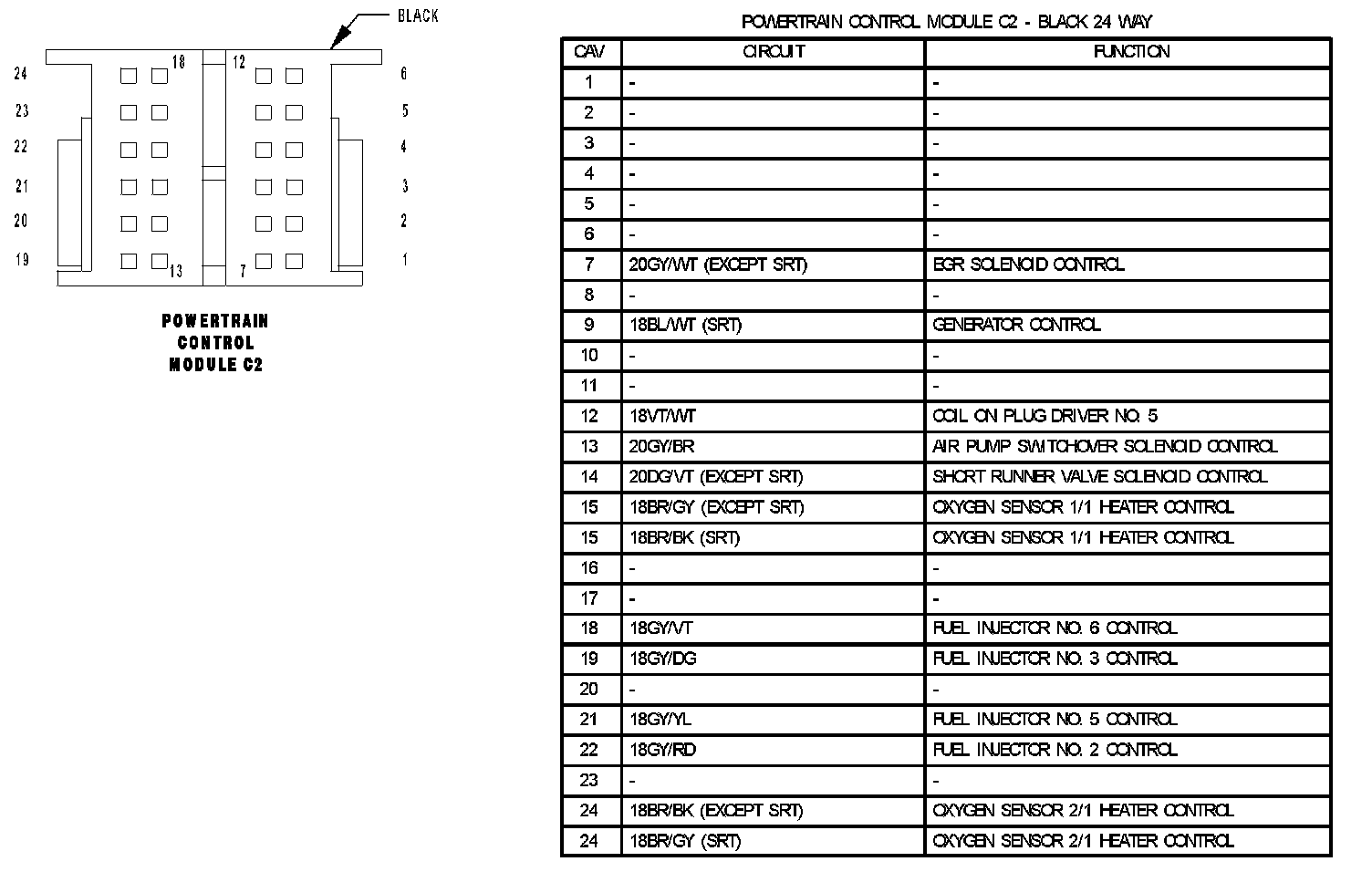

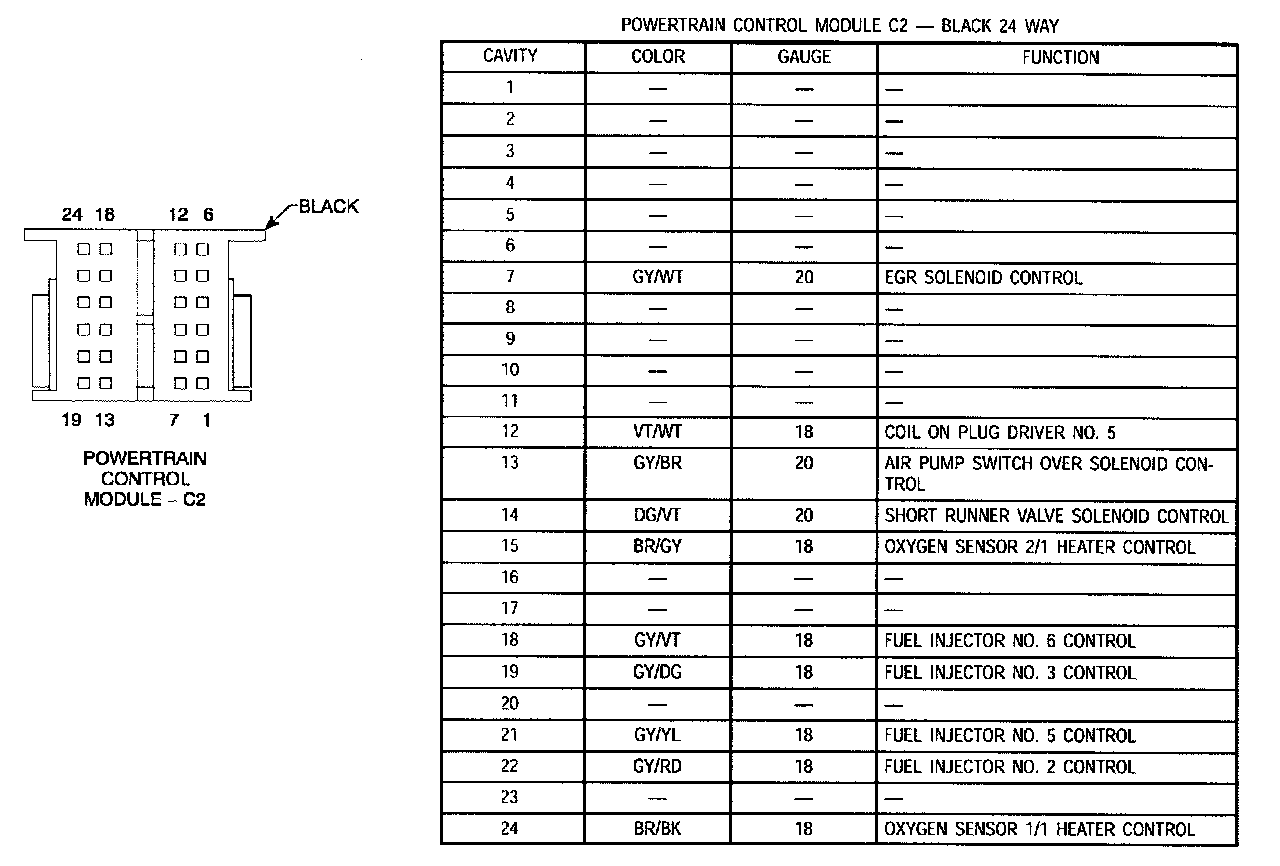

Powertrain Control Module C2:

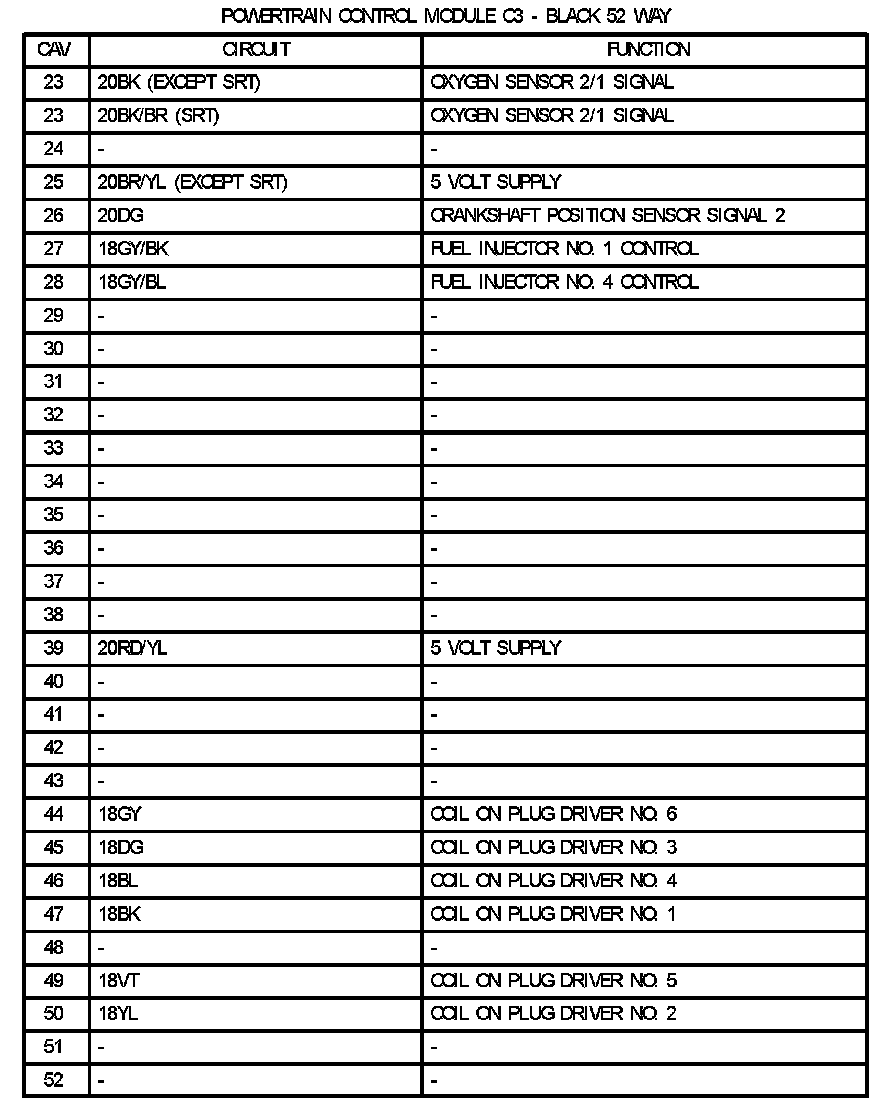

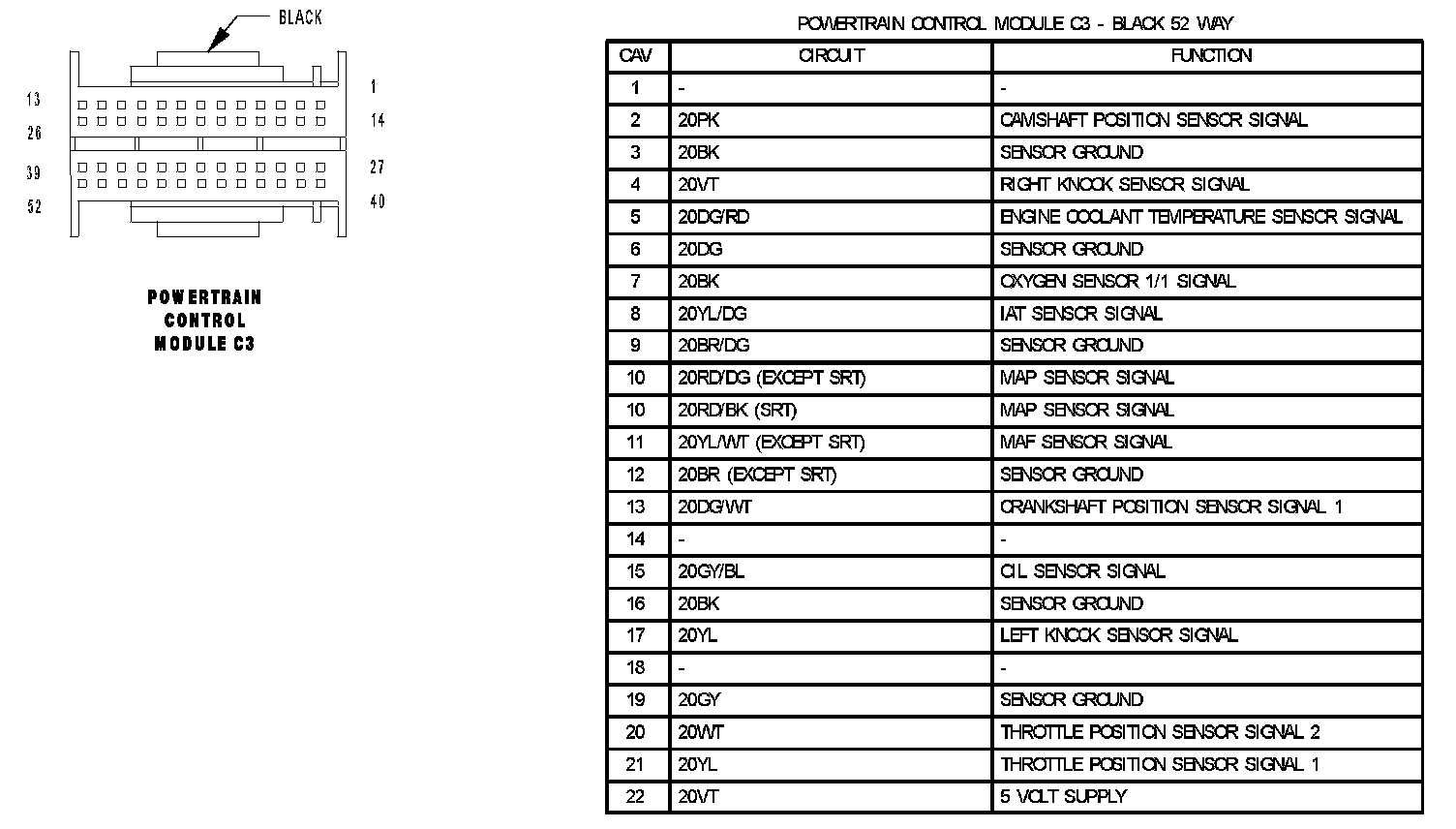

Powertrain Control Module C3:

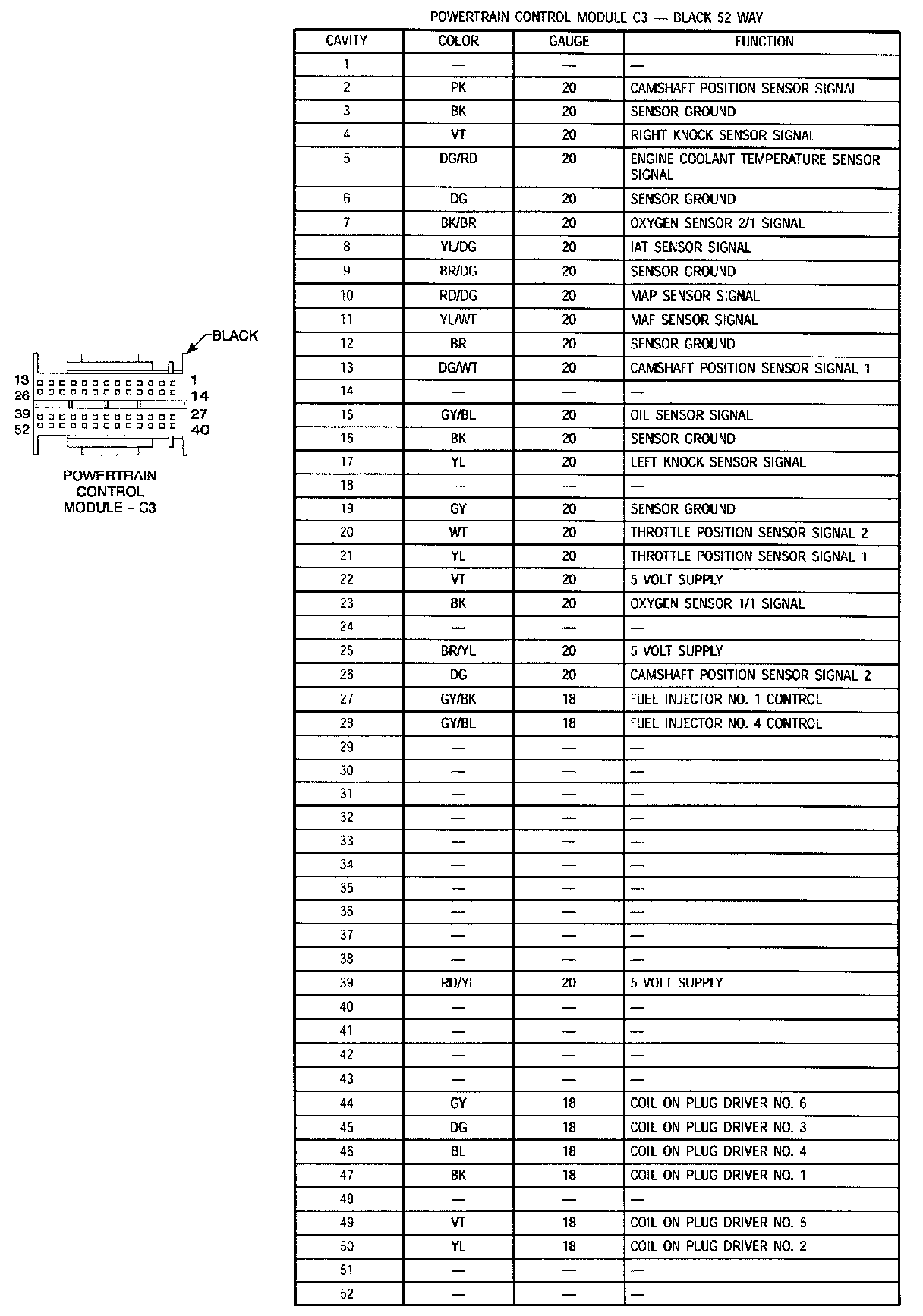

Powertrain Control Module C3:

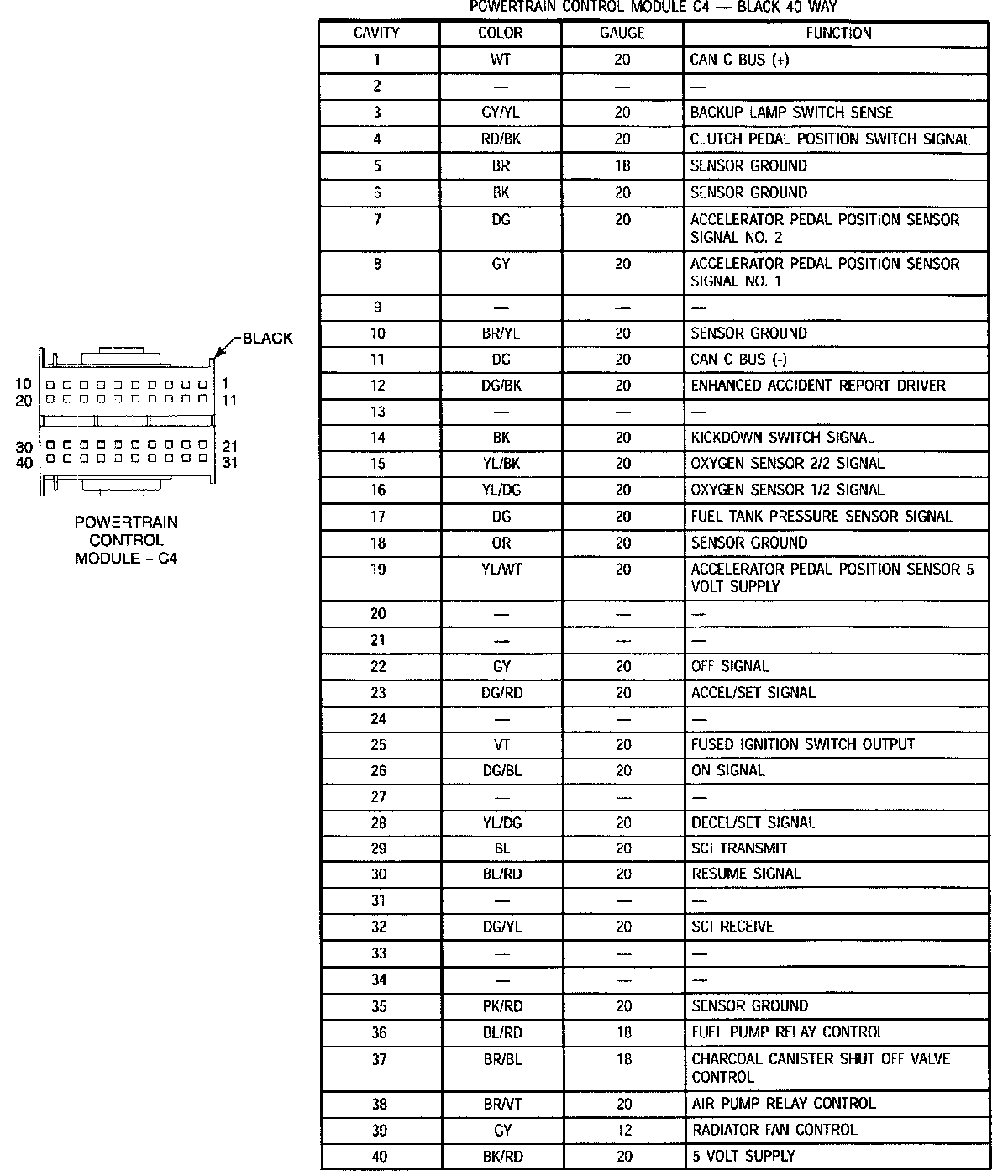

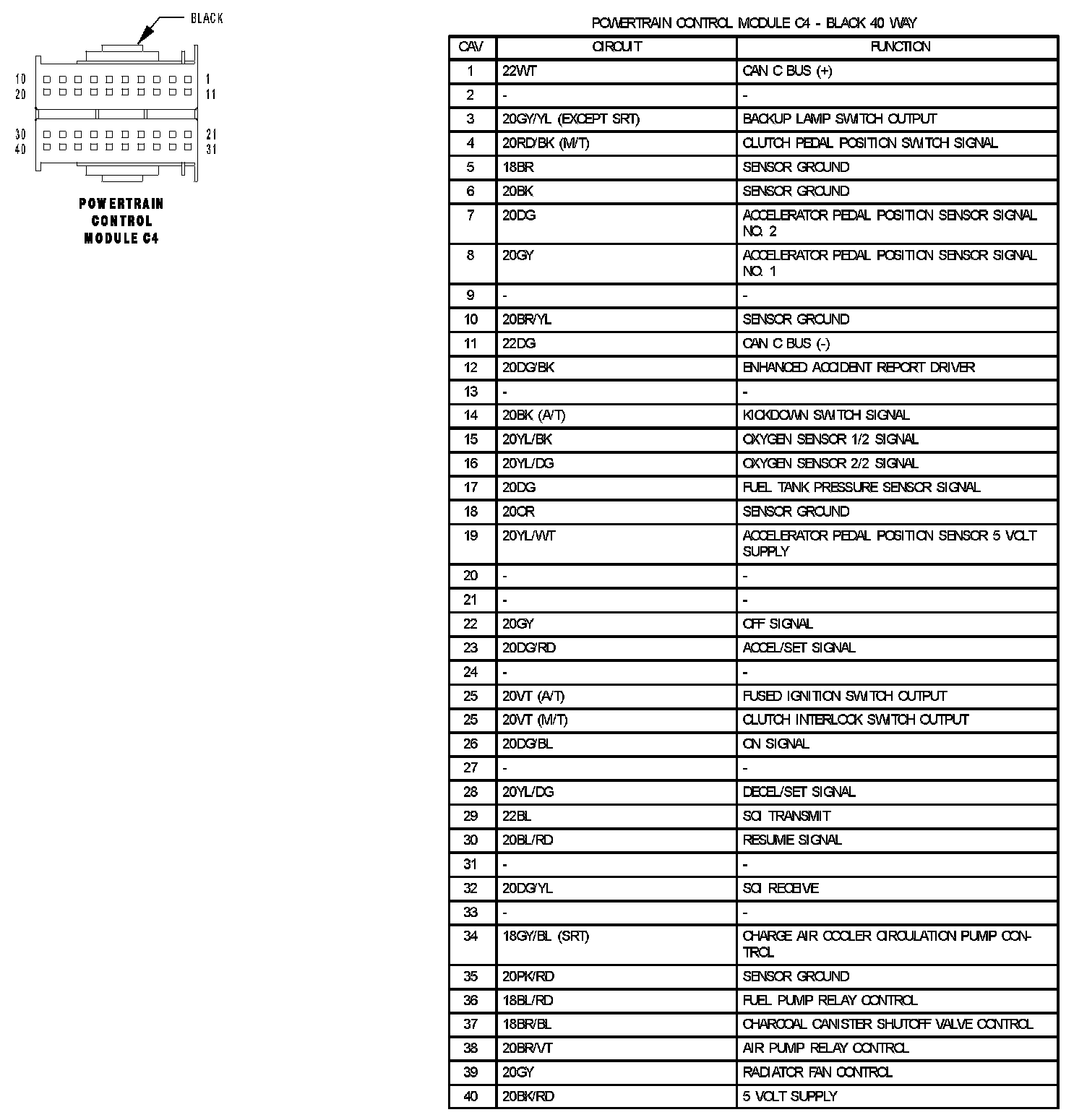

Powertrain Control Module C4:

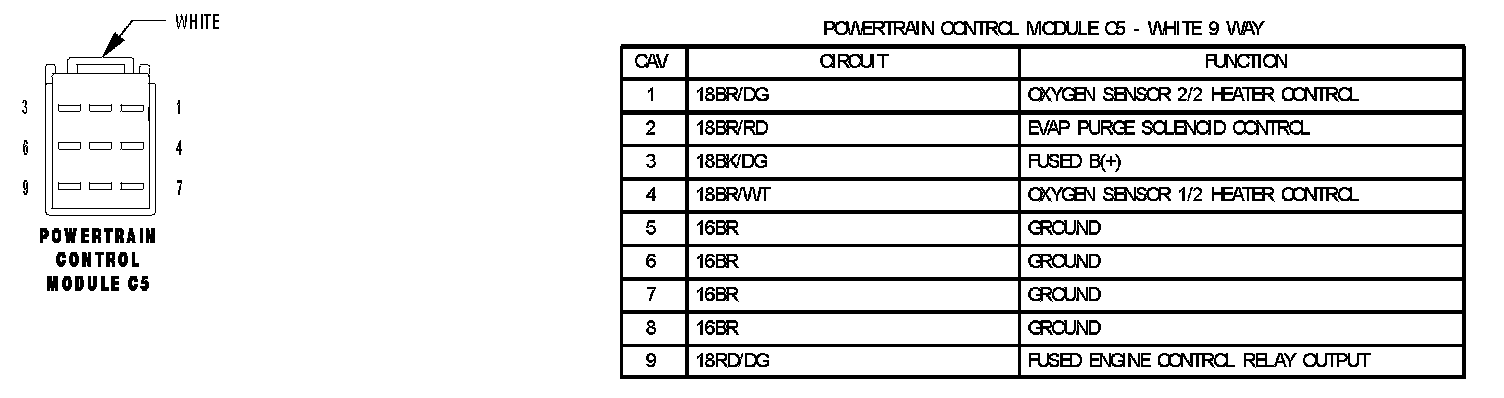

Powertrain Control Module C5:
