Home >> Chrysler >> 2005 >> Crossfire V6-3.2L VIN L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, A/T

Control Module, A/T

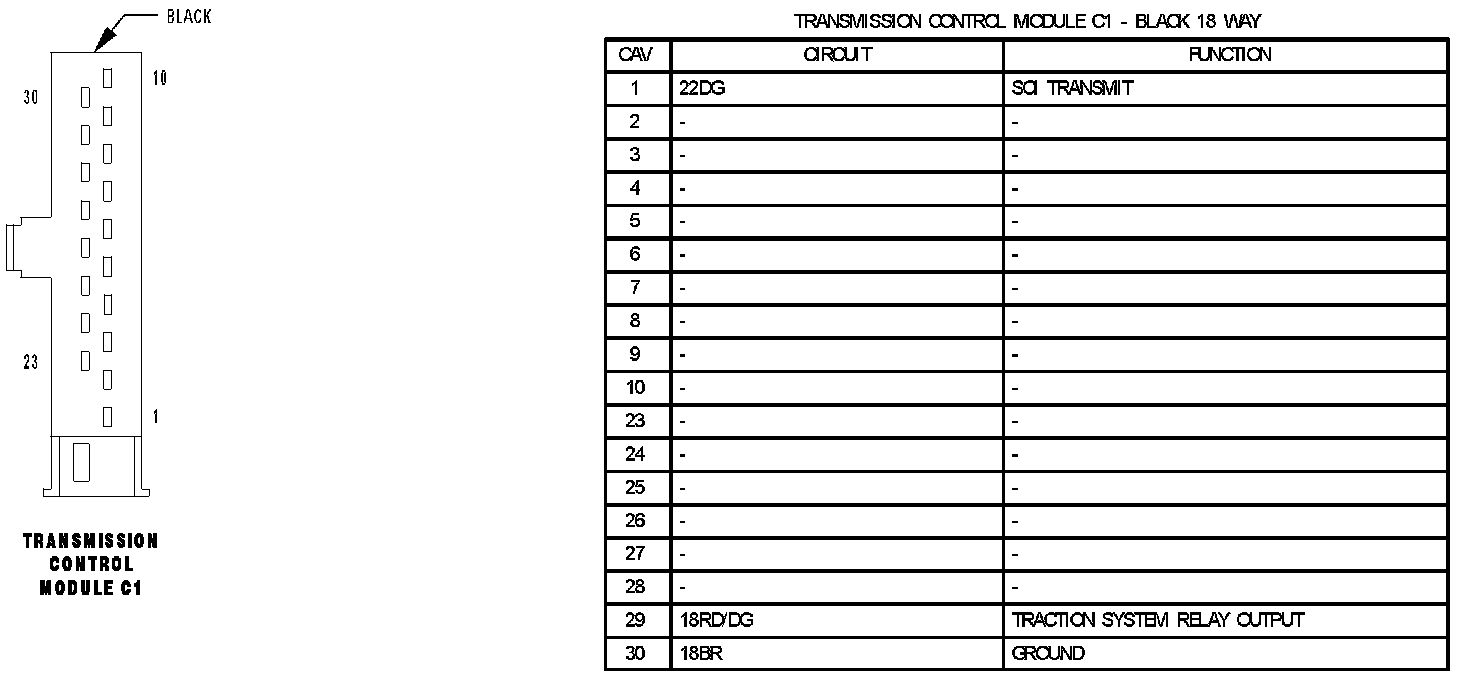

Transmission Control Module C1:

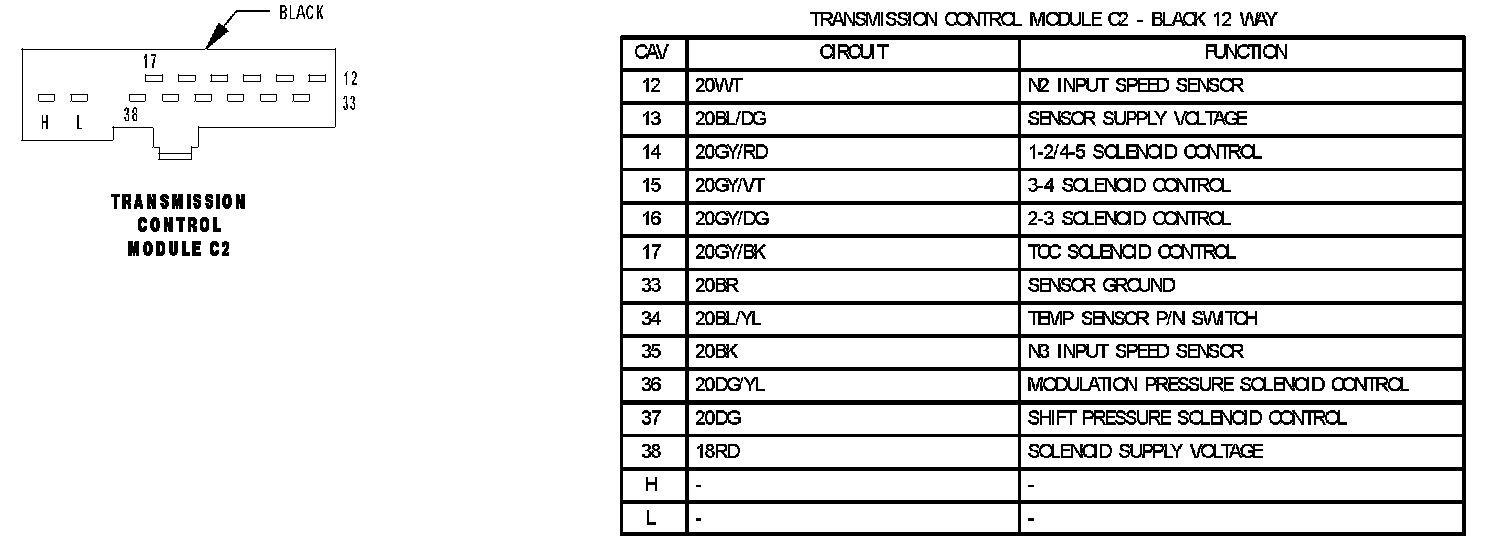

Transmission Control Module C2:

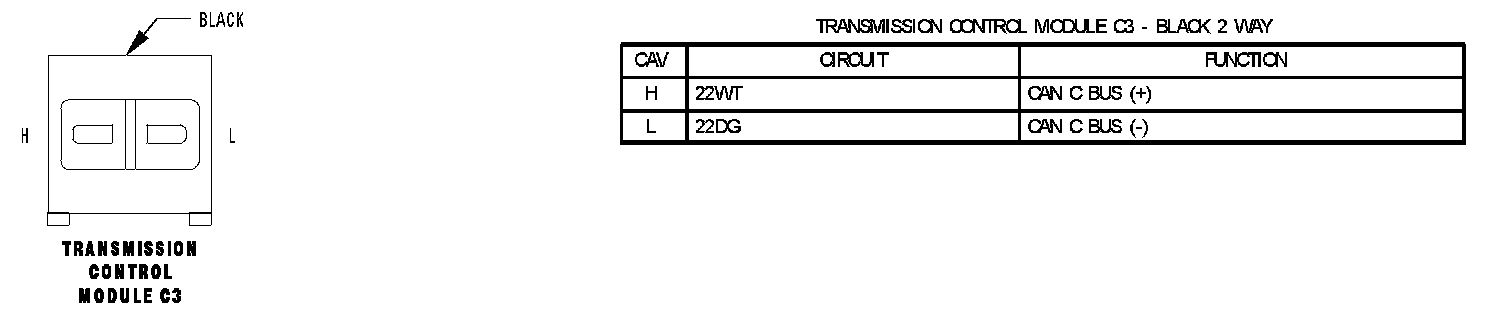

Transmission Control Module C3:
