Connector Locations

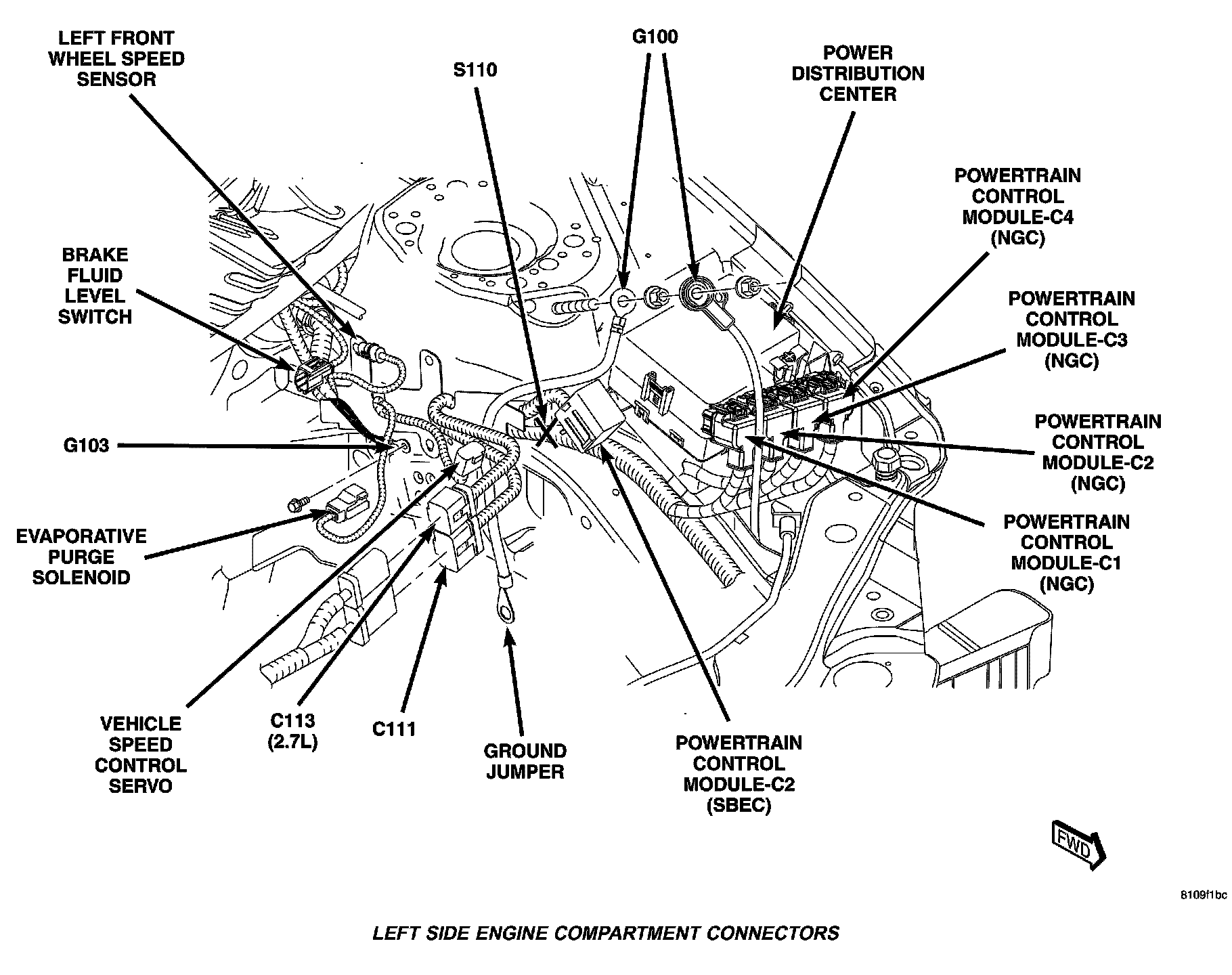

Left Side Engine Compartment Connectors:

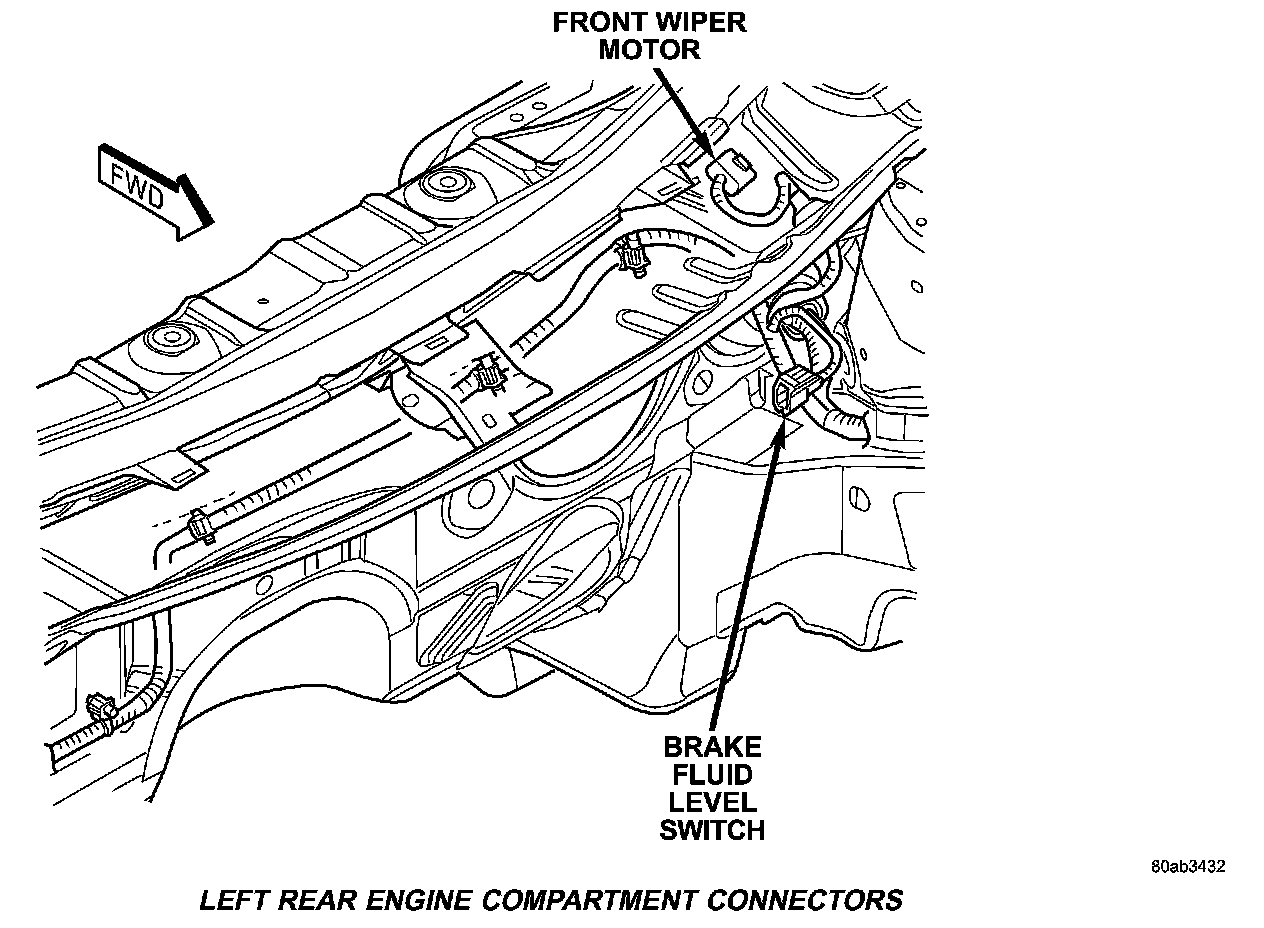

Left Rear Engine Compartment Connectors:
