Home >> Chrysler >> 2004 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Compass/Mini-Trip Computer >> Compass/Mini Trip Computer Inoperative

Compass/Mini Trip Computer Inoperative

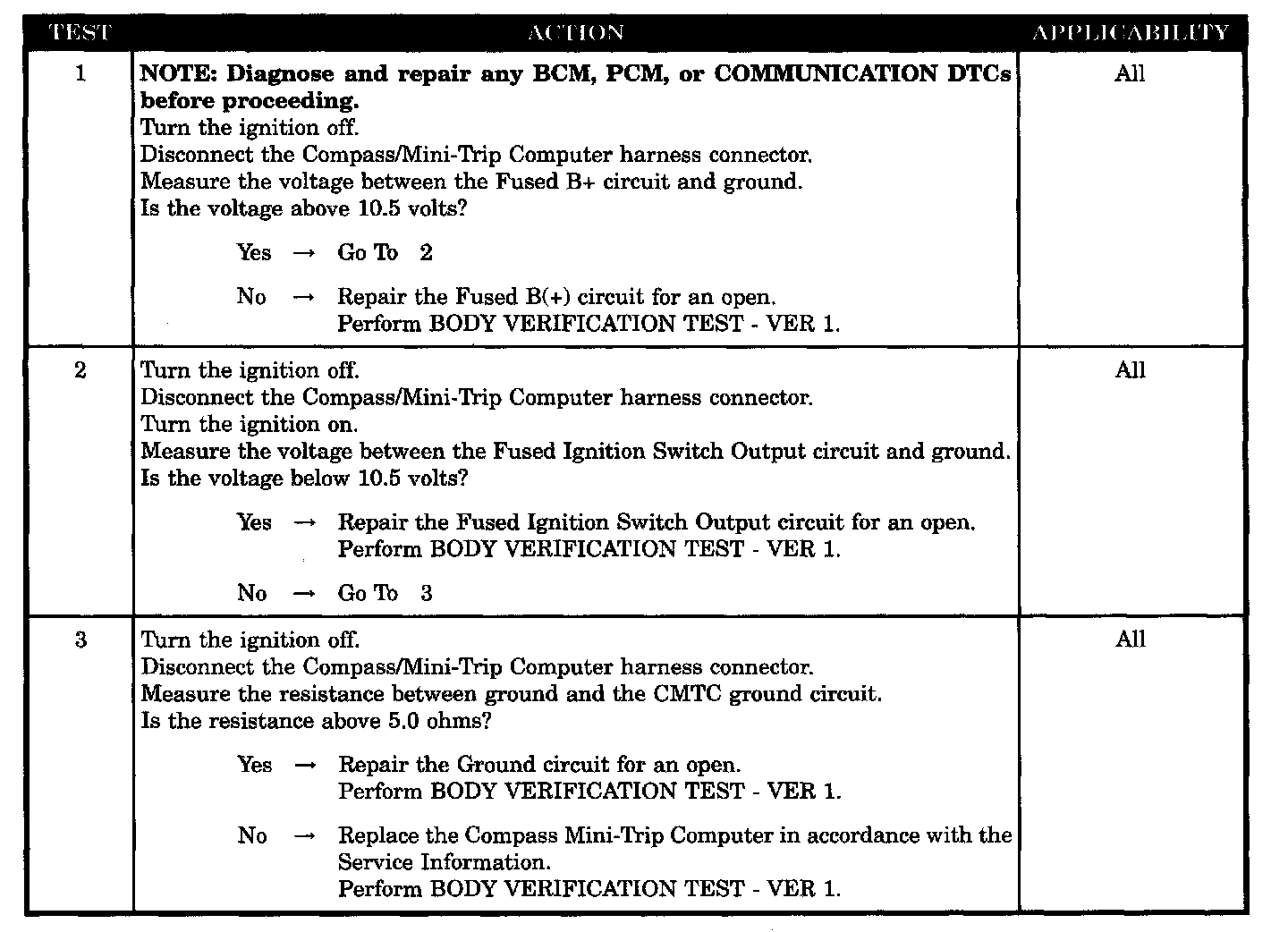

Test 1 - 3:






SYMPTOM
COMPASS/MINI-TRIP COMPUTER INOPERATIVE

POSSIBLE CAUSES
- Fused B(+) circuit open
- Fused ignition switch output circuit open
- Ground circuit open
- Compass mini-trip computer
